5130-01-400-0090

Socket Wrench Socket

5130014000090 014000090 B107.2 B107.2 TY1CL1 J7436 1AX42 7436

An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket

5130-01-400-0090 SOCKET,SOCKET WRENCH 5130014000090 014000090

Managed by United States
NSN Created on 7 Dec 1994
Data Last Changed
May 2023
NATO Update Count
8
NATO Data Quality
5130-01-400-0090 SOCKET,SOCKET WRENCH 5130014000090 014000090 1/2

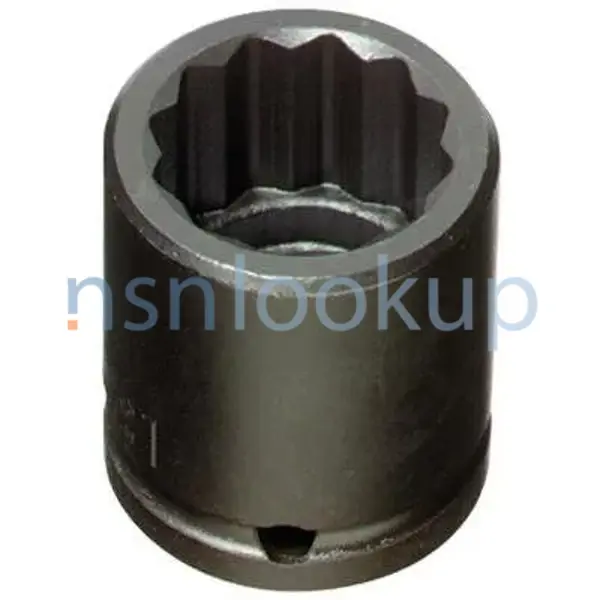

5130-01-400-0090 Photo 1/2
STYL Style 168 for 5130-01-400-0090 2/2
NSN 5130-01-400-0090 (Identification) 2/2

5130-01-400-0090 Stock and Availability Marketplace 5130-01-400-0090

5130-01-400-0090 Related Documents Related Documents 5130-01-400-0090 5+ Documents (More...)

B107.2 B107.2 TY1CL1 J7436 1AX42 7436 An item having an internal drive at one end made to fit into the
GGG-W-660 B107.2 TY1CL1 PF140A B107.2 TY1CL1 PF140A B107.2 TY1CL1 https//www.nsnlookup.com /fsg-51/fsc
-660 B107.2 TY1CL1 PF140A B107.2 GGG-W-660 B107.2 TY1CL1 PF140A B107.2 -00 B107.2 CL1STA GGG-W-660 B107.2
-00 B107.2 CL1STA GGG-W-660 B107.2 TY1CL1 PF140A B107.2 GGG-W-660 B107.2 TY1CL1 https//www.nsnlookup.com
GGG-W-660 B107.2 TY1CL1 PF140A B107.2 GGG-W-660 B107.2 TY1CL1 TY1CL1 PF140A B107.2 /fsg-51/fsc-5130/
41-89461 -00 B107.2 CL1STA GGG-W-660 B107.2 TY1CL1 PF140A B107.2 GGG-W-660 B107.2 TY1CL1 PF140A B107.2
-00 B107.2 CL1STA GGG-W-660 B107.2 TY1CL1 PF140A B107.2 GGG-W-660 B107.2 TY1CL1 https//www.nsnlookup.com
CL1STA GGG-W-660 B107.2 TY1CL1 PF140A B107.2 GGG-W-660 B107.2 TY1CL1 PF140A B107.2 TY1CL1 PF140A B107.2
/us 5130-01-400-0090 Socket Wrench Socket 5130014000090 014000090 TY1CL1 PF140A TY1CL1 41-89461 -00 B107.2
TY1CL1 PF140A B107.2 GGG-W-660 B107.2 TY1CL1 PF140A B107.2 TY1CL1 PF140A B107.2 B107.2 TY1CL1 PF140A
/fsg-51/fsc-5130/us 5130-01-400-0090 Socket Wrench Socket 5130014000090 014000090 00 B107.2 CL1STA GGG-W
-660 B107.2 TY1CL1 PF140A B107.2 TY1CL1 PF140A B107.2 TY1CL1 https//www.nsnlookup.com /fsg-51/fsc-5130
TY1CL1 PF140A B107.2 TY1CL1 PF140A B107.2 CL1STAGGG-W -660 B107.2 TY1CL1 PF140A GGG-W-660 B107.2 TY1CL1
B107.2 TY1CL1 PF140A B107.2 https//www.nsnlookup.com CL1STA GGG-W-660 B107.2 TY1CL1 B107.2 TY1CL1 PF140A
B107.2 TY1CL1 PF140A B107.2 https//www.nsnlookup.com CL1STA GGG-W-660 B107.2 TY1CL1 B107.2 TY1CL1 PF140A

5130-01-400-0090 Demil Restrictions 5130-01-400-0090

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC:

5130-01-400-0090 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

5130-01-400-0090 HTS and ScheduleB Import and Export 5130-01-400-0090

5130-01-400-0090 End Users End Users 5130-01-400-0090

US Coast Guard (C014)
Effective Date:
1 Jan 1995
NASA (G751)
Effective Date:
1 Dec 1994
US Marine Corps (MC14)
Effective Date:
1 Jan 1995
US Navy (N9QG)
Effective Date:
1 Jan 2014
Supplementary Collaborators:
GG

5130-01-400-0090 Manufacturers Approved Sources 5130-01-400-0090

5130-01-400-0090 Technical Data Datasheet 5130-01-400-0090

Characteristic
Specifications
FIIG
A102A0
Drive End Shape [CTCT]
Square Single End Internal
Drive Surface Size [ATNC]
0.500 Inches Nominal Single End
Features Provided [CBBL]
Power Tool
Material [MATT]
Steel Overall
Nondefinitive Spec/Std Data [ZZZT]
1 Type And 1 Class
Overall Length [ABHP]
2.000 Inches Nominal
Wrenching Surface Shape [CRWY]
12 Point Single End Internal
Wrenching Surface Size [AJBR]
1.125 Inches Nominal Single End
Specification/Standard Data [ZZZK]
05047-Asme B107.2 Professional/Industrial Association Standard
Style Designator [STYL]
Internal-Internal
Surface Treatment [SFTT]
Oxide Overall

5130-01-400-0090 Management Data Management Data 5130-01-400-0090

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Feb 2020
Department of the Navy (DN)
EA
Subscribe

Navy Navy

Cognizance:
9Q

Marine Corps Marine Corps

Stores Account:
1
Stock Fund Account Item
Combat Essentiality:
7
Reviewed and determined non-essential
Echelon Management:
02
Operational Test:
No Special Procedures

5130-01-400-0090 Related Items NATO Stock Numbers Related to 5130-01-400-0090

5130-01-400-0090 Freight Data Freight Information 5130-01-400-0090

5130-01-400-0090 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5130-01-400-0090 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5130-01-400-0090 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5130-01-400-0090 is not classified as a special type of cargo when transported by water. 5130-01-400-0090 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
