5130-01-397-9319

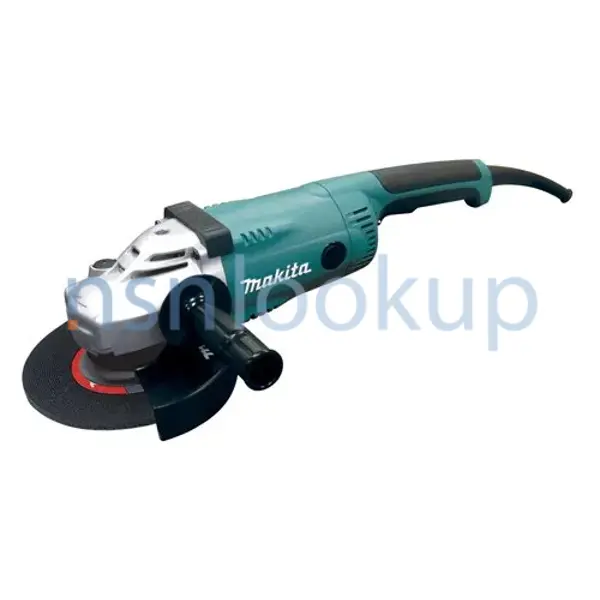

Portable Electric Disk Grinder
5130013979319 013979319 GA7021 MAKITA GA7021 9067L 9027L
INC: 80970
Managed by United States
NSN Created on 21 Oct 1994
Data Last Changed
May 2023
May 2023
NATO Update Count
18
18
NATO Data Quality
Marketplace 5130-01-397-9319
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-397-9319 2+ Documents (More...)
GA7021 MAKITA GA7021 9067L 9027L Managed by United States NSN Created on 21 Oct 1994 Data Last Changed
) https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-397-9319 Portable Electric Disk Grinder 5130013979319
) https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-397-9319 Portable Electric Disk Grinder 5130013979319
) https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-397-9319 Portable Electric Disk Grinder 5130013979319
) https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-397-9319 Portable Electric Disk Grinder 5130013979319
$1 a day Upgrade your Account Upgrade 5315-00-369-2462Headless Straight Pin5315003692462 003692462 GA7021
Portable Electric Disk Grinder 5130013979319 Upgrade your Account Upgrade 5130-01-397-9319Portable
Electric Disk Grinder5130013979319 013979319 GA7021 MAKITA GA7021 9067L 9027L Managed by United States
Portable Electric Disk Grinder 5130013979319 Upgrade your Account Upgrade 5130-01-397-9319Portable
Electric Disk Grinder5130013979319 013979319 GA7021 MAKITA GA7021 9067L 9027L Managed by United States
Restrictions 5130-01-397-9319
5130-01-397-9319 is a Portable Electric Disk Grinder that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Approved Sources 5130-01-397-9319
- Part Number
- Manufacturer
- Status
- GA7021
- Manufacturer
- 0U901 - Makita Usa Inc (Obsolete)
- Original Design
- Original Design
- GA7021 MAKITA
- 00NS2 - Kipper Tool Company (Active)
- Secondary Buy
- Secondary Buy
- 9067L
- 0U901 - Makita Usa Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 9027L
- 0U901 - Makita Usa Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-397-9319
- Characteristic
- Specifications
- FIIG
- Specifications
- A614F0
- General Characteristics Item Description [TEXT]
- Angle Type; 115 Vac, 60 Hz; 15 Amp; 6000 Rpm; 7 In. Dia Wheel Capacity; 5/8-11 Spindle Thread; Spindle Lock; Lock-On Button; Switch Handle Rotates 90 Deg Right Or Left; Automatic Cut-Off Brush System; Double Insulated; 18-3/16 In. O/A Lg; Includes Side Handle, Grinding Wheel, Flange, Locknut And Locknut Wrench
Management Data 5130-01-397-9319
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Dec 2021
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Feb 2020
- Department of the Army (DA)
- EA
- Subscribe
- EA
- Jun 2014
- US Marine Corps (DM)
- EA
- Subscribe
- EA
- Dec 2001
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- V
- Discontinued Without Replacement
- V
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5130-01-397-9319
Freight Information 5130-01-397-9319
5130-01-397-9319 has freight characteristics.. 5130-01-397-9319 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
