5130-01-393-1602

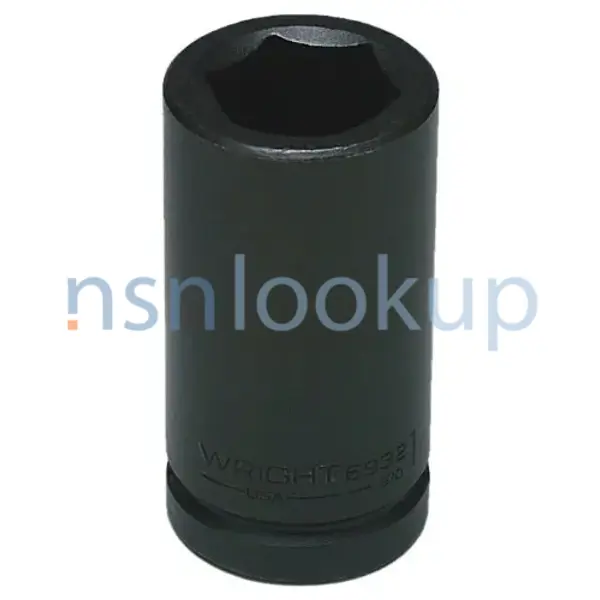

Socket Wrench Socket
5130013931602 013931602 B107.2 B107.2 TY1CL2 6940
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
Managed by United States
NSN Created on 15 Jul 1994
Data Last Changed
May 2023
May 2023
NATO Update Count
8
8
NATO Data Quality
Marketplace 5130-01-393-1602
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-393-1602 5+ Documents (More...)
B107.2 B107.2 TY1CL2 6940 An item having an internal drive at one end made to fit into the external
www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-667-4219 Socket Wrench Socket 5130016674219 016674219 B107.2
www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-299-0015 Socket Wrench Socket 5130012990015 012990015 B107.2
www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-667-4219 Socket Wrench Socket 5130016674219 016674219 B107.2
www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-299-0015 Socket Wrench Socket 5130012990015 012990015 B107.2
B107.2 TY1CL2 J10026L An item having an internal drive at one end made to fit into the external drive
www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-667-4221 Socket Wrench Socket 5130016674221 016674221 B107.2
www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-667-8548 Socket Wrench Socket 5130016678548 016678548 B107.2
www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-667-4221 Socket Wrench Socket 5130016674221 016674221 B107.2
www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-667-8548 Socket Wrench Socket 5130016678548 016678548 B107.2
B107.2 TY1CL2 J10030L 5550A127 An item having an internal drive at one end made to fit into the external
https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-393-1602 Socket Wrench Socket 5130013931602 013931602
B107.2 TY1CL2 6940 An item having an internal drive at one end made to fit into the external drive end
https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-393-1602 Socket Wrench Socket 5130013931602 013931602
B107.2 TY1CL2 6940 An item having an internal drive at one end made to fit into the external drive end
B107.2 TY1CL2 J10032L 5550A129 An item having an internal drive at one end made to fit into the external
Day J10032L RQST NE Updated Every Day 5550A129 RQST NE Updated Every Socket 5130013647061 013647061 B107.2
www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-667-4221 Socket Wrench Socket 5130016674221 016674221 B107.2
Day J10032L RQST NE Updated Every Day 5550A129 RQST NE Updated Every Socket 5130013647061 013647061 B107.2
www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-667-4221 Socket Wrench Socket 5130016674221 016674221 B107.2
https//www.nsnlookup.com
/fsg-51/fsc-5130/us
/fsg-51/fsc-5130/us
5130-01-399-3607 Socket Wrench Socket Set 5130013993607
B107.2 TY1CL2 313SIMA 313SIMLM 313SIM A group of SOCKET, SOCKET WRENCH having different characteristics
www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-666-8571 Socket Wrench Socket 5130016668571 016668571 B107.2
https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-393-1602 Socket Wrench Socket 5130013931602 013931602
www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-666-8571 Socket Wrench Socket 5130016668571 016668571 B107.2
https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-393-1602 Socket Wrench Socket 5130013931602 013931602
Restrictions 5130-01-393-1602
5130-01-393-1602 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-01-393-1602
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-01-393-1602
- US Coast Guard (C014)
- Effective Date:
- 1 Jul 1994
- US Air Force (FGGS)
- Effective Date:
- 1 Jul 1994
- NASA (G751)
- Effective Date:
- 1 Jul 1994
- US Navy (N9QG)
- Effective Date:
- 1 Jul 1994
Approved Sources 5130-01-393-1602
- Part Number
- Manufacturer
- Status
- B107.2
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.2 TY1CL2
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 6940
- 79808 - Wright Tool Co (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5130-01-393-1602
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.750 Inches Nominal Single End
- Features Provided [CBBL]
- Power Tool
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 2 Class
- Overall Length [ABHP]
- 3.500 Inches Nominal
- Wrenching Surface Shape [CRWY]
- 6 Point Single End Internal
- Wrenching Surface Size [AJBR]
- 1.250 Inches Nominal Single End
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.2 Professional/Industrial Association Standard
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Oxide Overall
Management Data 5130-01-393-1602
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Jun 2014
- US Marine Corps (DM)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- V
- Discontinued W/O Replacement
- V
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 7
- Reviewed and determined non-essential
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5130-01-393-1602
5120-14-210-9852 5120-12-364-6803 5120-98-205-9462 5120-33-155-9422 5120-15-113-2845 5120-37-504-7952 5130-21-808-0702 5120-33-110-6240 5120-27-047-5375 5120-14-484-6515 5120-99-786-2481 5120-14-200-9336 5120-14-548-5093 5120-14-530-5337 5120-14-442-2003 5120-34-041-3160 5120-14-525-4363 5120-99-755-3201
Freight Information 5130-01-393-1602
5130-01-393-1602 has freight characteristics.. 5130-01-393-1602 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
