5130-01-349-1235

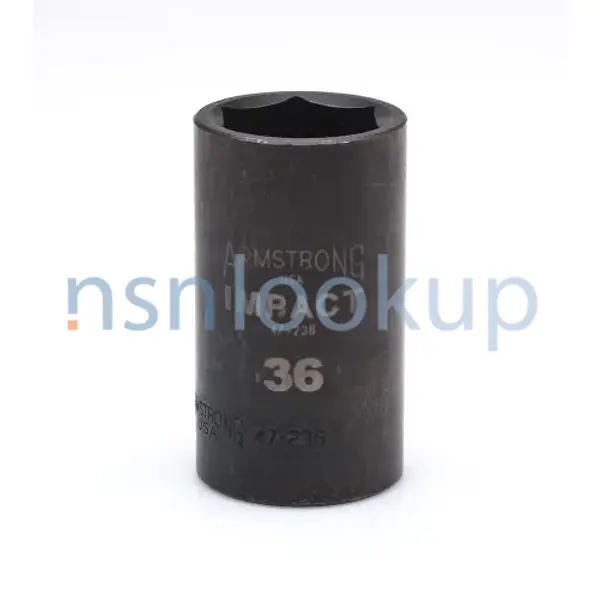

Socket Wrench Socket
5130013491235 013491235 47-223
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
November 2023
16
Marketplace 5130-01-349-1235
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-349-1235 2+ Documents (More...)
-01-349-1235 RQST NE Updated Every Day 5130-01-349-1235 RQST Updated Every Day 5130-01-349-1235 RQST
Quotation Updated Every Day 47-223 RQST NE Updated Every Day 5130 -01-349-1235 RQST NE Updated Every
Vendor Details... 5130-01-348-9387 SOCKET,SOCKET WRENCH RQST NS Request Quotation Updated Every Day 47-223
Socket Wrench Socket 5130013491235 013491235 $1 a day Upgrade your Account Upgrade 5130-01-349-
Restrictions 5130-01-349-1235
5130-01-349-1235 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-01-349-1235
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-01-349-1235
- NASA (G752)
- Effective Date:
- 1 Feb 2005
Approved Sources 5130-01-349-1235
- Part Number
- Manufacturer
- Status
- 47-223
- Manufacturer
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- 47-223
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 47-223
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-349-1235
- Characteristic
- Specifications
- Drive End Shape [CTCT]
- Specifications
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Features Provided [CBBL]
- Power Tool
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 88.9 Millimeters Nominal
- Wrenching Surface Shape [CRWY]
- 6 Point Single End Internal
- Wrenching Surface Size [AJBR]
- 23.0 Millimeters Nominal Single End
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Oxide Overall
Management Data 5130-01-349-1235
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Nov 2000
- Department of the Army (DA)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- V
- Discontinued W/O Replacement
- V
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
NATO Stock Numbers Related to 5130-01-349-1235
Freight Information 5130-01-349-1235
5130-01-349-1235 has freight characteristics.. 5130-01-349-1235 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
