5130-01-345-9534

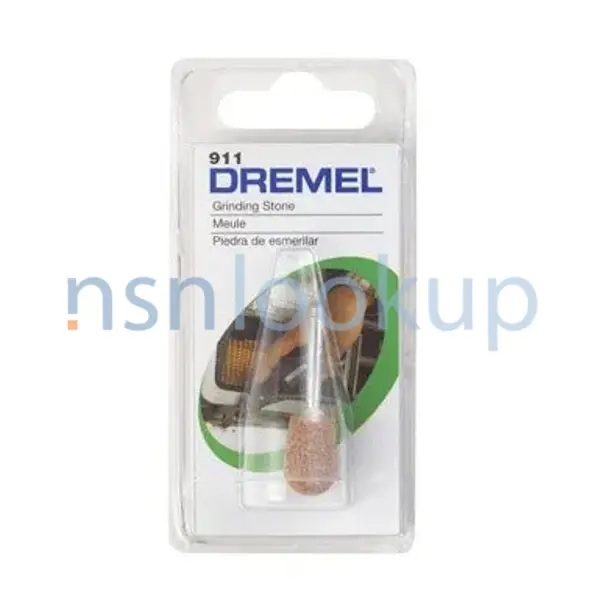

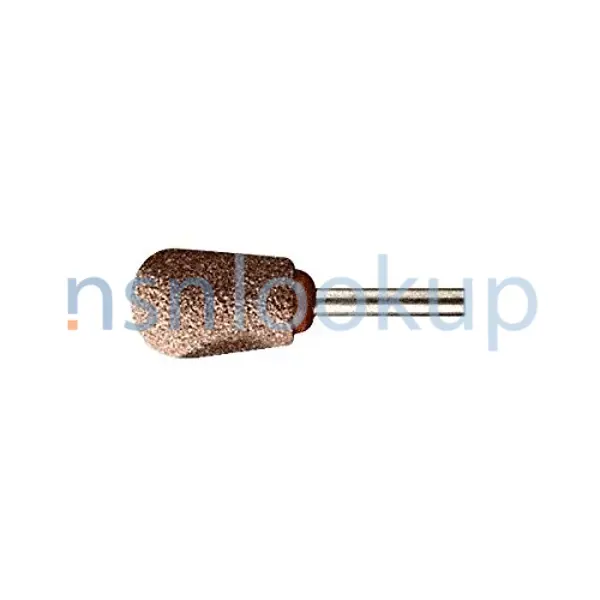

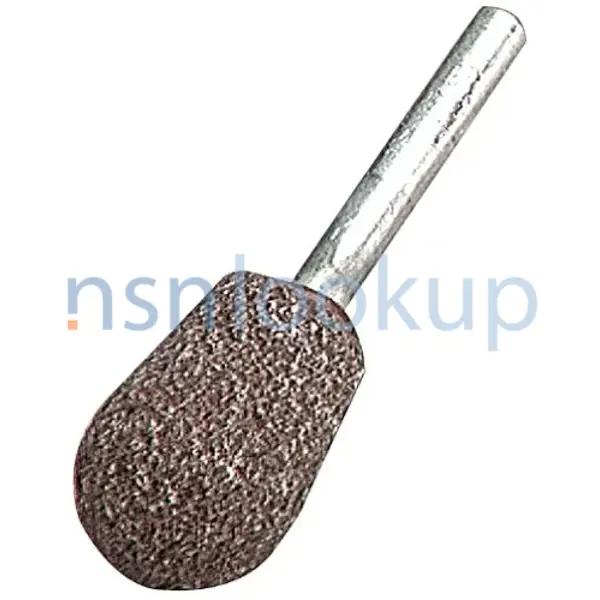

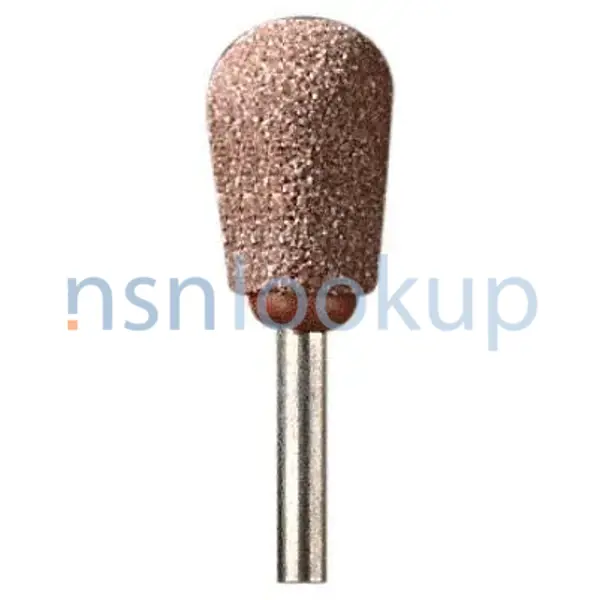

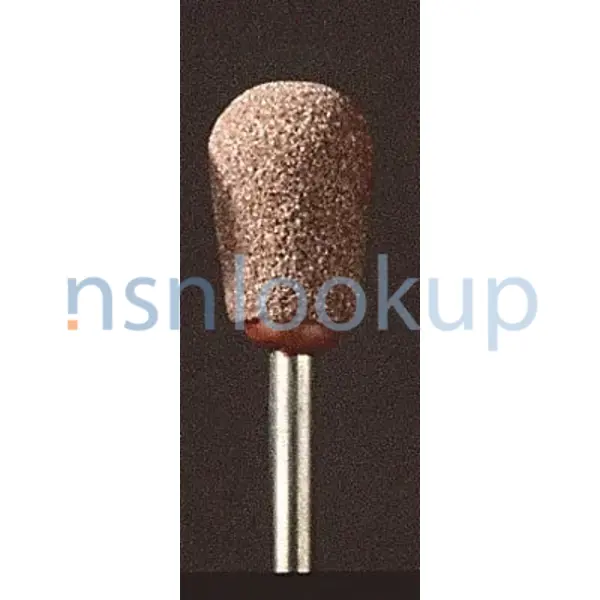

Abrasive Wheel
5130013459534 013459534 911
A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps. View more Abrasive Wheel
May 2023
11
Marketplace 5130-01-345-9534
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5130-01-345-9534 3+ Documents (More...)
-9534 BUY NE FedMall Updated Every Day 911 RQST NE Updated Every Day 5130-01-345-9534 RQST NE Updated
Every Day 5130-01-345-9534 RQST Updated Every Day 5130-01-345-9534 RQST NE Related Documents 5130-01
/fsg-99/fsc-9999/dk
Restrictions 5130-01-345-9534
5130-01-345-9534 is a Abrasive Wheel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-01-345-9534
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-01-345-9534
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G861)
- Effective Date:
- 1 Mar 1995
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTHD
Approved Sources 5130-01-345-9534
- Part Number
- Manufacturer
- Status
- 911
- Manufacturer
- 48851 - Dremel Services Center (Active)
- Primary Buy
- Primary Buy
- 911
- 18531 - Dremel Mfg Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-345-9534
- Characteristic
- Specifications
- FIIG
- Specifications
- A06900
- Abrasive Material [AHCM]
- Aluminum Oxide
- End Item Identification [AGAV]
- Dremel Rotary Tools
- Mounting Method [ADJH]
- Permanently Mounted On Mandrel
- Special Features [FEAT]
- 1/8 In. Dia Shank; For Sharpening, Deburring And General Purpose Grinding
- Overall Thickness [ABTA]
- 0.688 Inches Nominal
- Wheel Diameter [BCDX]
- 0.438 Inches Nominal
- Spindle Diameter [AHDQ]
- 0.125 Inches Nominal
Management Data 5130-01-345-9534
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Navy (DN)
- EA
- Subscribe
- EA
Navy
- Cognizance:
- 9Q
Similar Supply Items to 5130-01-345-9534
Freight Information 5130-01-345-9534
5130-01-345-9534 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 186590. A Sub NMFC of X. It has a NMFC Description of TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS. 5130-01-345-9534 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91790 which rates the freight between FCL and LCL. 5130-01-345-9534 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5130-01-345-9534 is not classified as a special type of cargo when transported by water. 5130-01-345-9534 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
