5130-01-322-7805
Power Hammer Chisel
5130013227805 013227805 C-9A
A cutting tool having a formed shank designed for use with HAMMER, ELECTRIC, PORTABLE or HAMMER, PNEUMATIC, PORTABLE. Excludes masonry drills and all noncutting items, such as calking, beading, fulling, butting tools, and the like. View more Power Hammer Chisel
January 2023
9
Marketplace 5130-01-322-7805
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-322-7805 1+ Documents (More...)
-01-322-7805 RQST NE Updated Every Day 5130-01-322-7805 RQST Updated Every Day Updated Every Day 5130
-01-322-7805 RQST NE Updated Every Day 5130-01-322-7805 RQST Updated Every Day 5130-01-322-7805 RQST
Restrictions 5130-01-322-7805
5130-01-322-7805 is a Power Hammer Chisel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-01-322-7805
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-01-322-7805
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5130-01-322-7805
- Part Number
- Manufacturer
- Status
- C-9A
- Manufacturer
- 01DJ4 - Ampco Partners, Ltd. (Active)
- Primary Buy
- Primary Buy
- C-9A
- 03306 - Ampco Metal Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-322-7805
- Characteristic
- Specifications
- FIIG
- Specifications
- A534U0
- Material [MATT]
- Copper Alloy

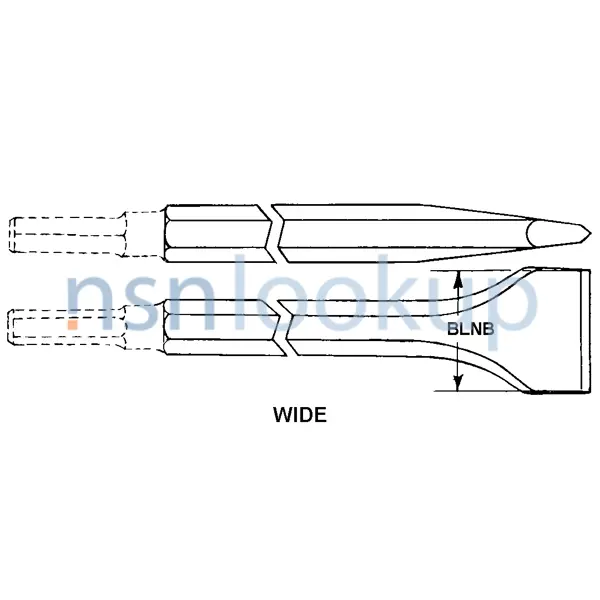

- Style Designator [STYL]
- Wide
- Overall Length [ABUL]
- 18.000 Inches Nominal
- Cutting Width [BLNB]
- 3.000 Inches Nominal

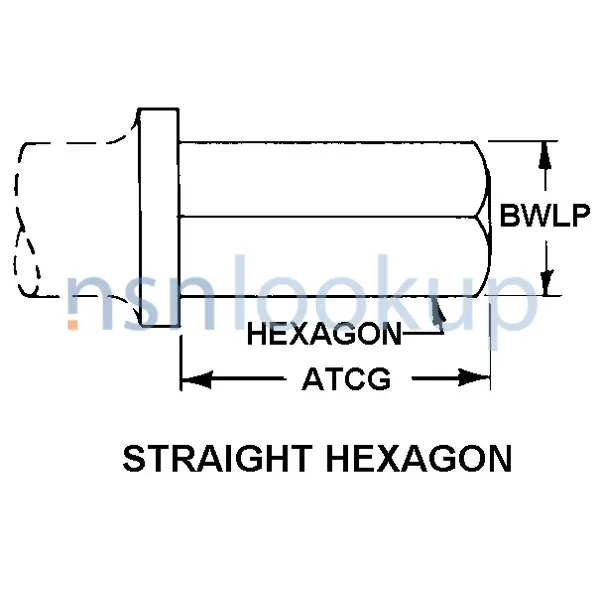

- Shank Style [AKZJ]
- Straight Hexagon
- Shank Width Across Flats [BWLP]
- 1.125 Inches Nominal
- Special Features [FEAT]
- Nonsparking/Nonmagnetic
NATO Stock Numbers Related to 5130-01-322-7805
Freight Information 5130-01-322-7805
5130-01-322-7805 has freight characteristics managed by Canada.. 5130-01-322-7805 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
