5130-01-310-1647
Abrasive Wheel
5130013101647 013101647 85422
A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps. View more Abrasive Wheel
May 2023
16
Marketplace 5130-01-310-1647
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-310-1647 5+ Documents (More...)

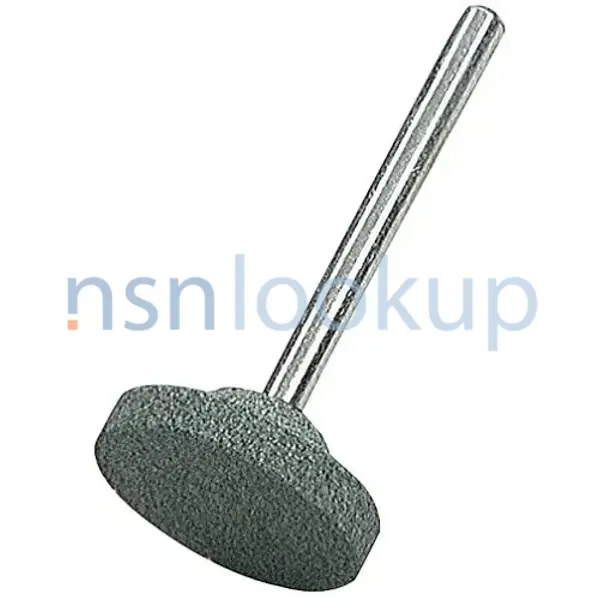

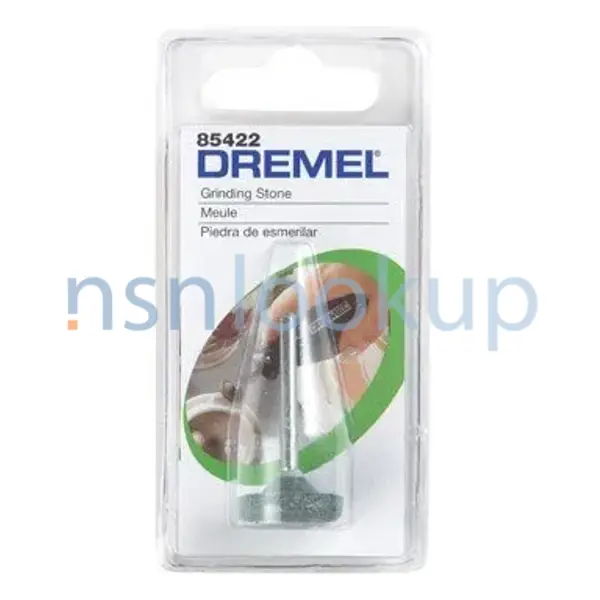

Abrasive Wheel 5130013101647 013101647,85422 Photo 1/4 5130-01-310-1647 Photo 2/4 5130-01-310-1647 Photo
3/4 NSN 5130-01-310-1647 (Identification ,ABRASIVE RQST NS Request Quotation Updated Every Day 85422
Request Global https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-310-1647 Abrasive Wheel 5130013101647
Dremel 85422 Dremel 85422 Dremel 85422 vendors Request Global Test Supply 85422 Dremel 85422 https//
in your web browser . 4710-99-968-4243Branched Metal Tube Assembly4710999684243 999684243AMP 00 00 85422
in your web browser . 4710-99-968-4243Branched Metal Tube Assembly4710999684243 999684243AMP 00 00 85422
Dremel 85422 Dremel 85422 Dremel 85422 vendors Request Global Test Supply 85422 Dremel 85422 https//
https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-310-1647 Abrasive Wheel 5130013101647 013101647,85422
/fsg-99/fsc-9999/dk
Restrictions 5130-01-310-1647
5130-01-310-1647 is a Abrasive Wheel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5130-01-310-1647
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-01-310-1647
- NASA (G751)
- Effective Date:
- 1 Apr 2008
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Jul 2010
- US Navy (N9QG)
- Effective Date:
- 1 Apr 2008
- Supplementary Collaborators:
- HD
- Canada (ZC01)
- Effective Date:
- 1 Sep 1996
- Netherlands (ZN01)
- Effective Date:
- 1 Mar 2006
Approved Sources 5130-01-310-1647
- Part Number
- Manufacturer
- Status
- 85422
- Manufacturer
- 48851 - Dremel Services Center (Active)
- Primary Buy
- Primary Buy
- 85422
- 18531 - Dremel Mfg Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-310-1647
- Characteristic
- Specifications
- FIIG
- Specifications
- A06900
- Abrasive Material [AHCM]
- Silicon Carbide
- End Item Identification [AGAV]
- Dremel Rotary Tools
- Mounting Method [ADJH]
- Permanently Mounted On Mandrel
- Special Features [FEAT]
- 1/8 In. Dia Shank
- Overall Thickness [ABTA]
- 0.125 Inches Nominal
- Usage Design [ACVE]
- Glass Working And Metal Working
- Wheel Diameter [BCDX]
- 0.781 Inches Nominal
- Wheel Style [CZHQ]
- Wheel W/ Hub
Management Data 5130-01-310-1647
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5130-01-310-1647
Freight Information 5130-01-310-1647
5130-01-310-1647 has freight characteristics.. 5130-01-310-1647 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
