5130-01-146-8421

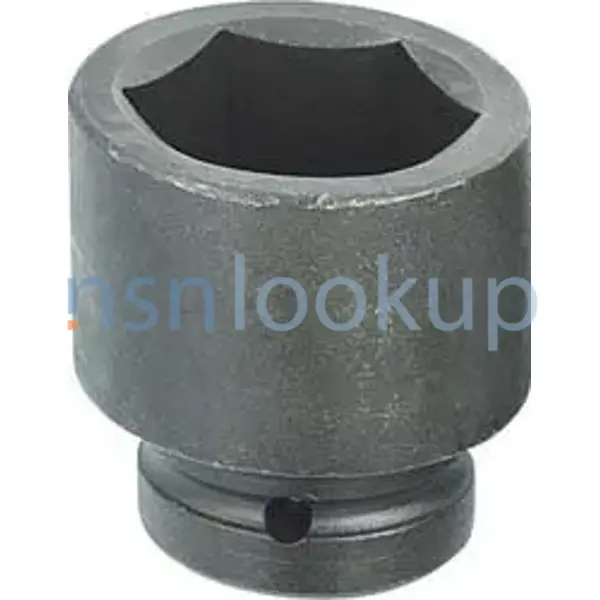

Socket Wrench Socket
5130011468421 011468421 22-026
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
November 2023
15
Marketplace 5130-01-146-8421
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-146-8421 1+ Documents (More...)
Day 5130-01-146-8421 RQST NE Related Documents 5130-01-146-8421 1+ Documents ( More... ) https//www.nsnlookup.com
Day 5130-01-146-8421 RQST NE Updated Every Day 5130-01-146-8421 RQST Updated Every Day 5130-01-146-8421
Restrictions 5130-01-146-8421
5130-01-146-8421 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5130-01-146-8421
- NASA (G752)
- Effective Date:
- 1 Feb 2005
Approved Sources 5130-01-146-8421
- Part Number
- Manufacturer
- Status
- 22-026
- Manufacturer
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- 22-026
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 22-026
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-146-8421
- Characteristic
- Specifications
- Drive End Outside Diameter [AHMK]
- Specifications
- 2.125 Inches Nominal
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 1.000 Inches Nominal Single End
- Features Provided [CBBL]
- Power Tool
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 2.125 Inches Nominal
- Wrenching End Opening Depth [AJAP]
- 0.531 Inches Nominal
- Wrenching End Outside Diameter [AHMJ]
- 0.826 Inches Nominal
- Wrenching Surface Shape [CRWY]
- 6 Point Single End Internal
- Wrenching Surface Size [AJBR]
- 0.812 Inches Nominal Single End
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Oxide Overall
Similar Supply Items to 5130-01-146-8421
Freight Information 5130-01-146-8421
5130-01-146-8421 has freight characteristics managed by the Netherlands.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5130-01-146-8421 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5130-01-146-8421 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5130-01-146-8421 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5130-01-146-8421 is not classified as a special type of cargo when transported by water. 5130-01-146-8421 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
