5130-01-100-3098
Socket Wrench Socket
5130011003098 011003098 B107.33M B107.33M TY1 STP 7316M J7316M 1AW82 7316M
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
May 2023
19
Marketplace 5130-01-100-3098
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-100-3098 5+ Documents (More...)
SOCKET,SOCKET WRENCH RQST NS Request Quotation Updated Every Day J7316M RQST NE Updated Every Day 7316M
RQST NE Updated Every Day 1AW82 RQST NE Updated Every Day 5130-01-100-3098 RQST NE Updated Every Day
Socket Wrench Socket 5130011003098 011003098 Account Upgrade 5130-01-100-3098Socket Wrench Socket5130011003098
011003098 B107.33M B107.33M TY1 STP 7316M Socket Wrench Socket 5120015930414015930414 $1 a day Upgrade
vendors Request FedMall Updated Every 15 Minutes 5130-01-649-0125 BUY NE FedMall Updated Every Day J7316M
Socket Wrench Socket 5130011003098 011003098 Upgrade 5130-01-100-3098Socket Wrench Socket5130011003098

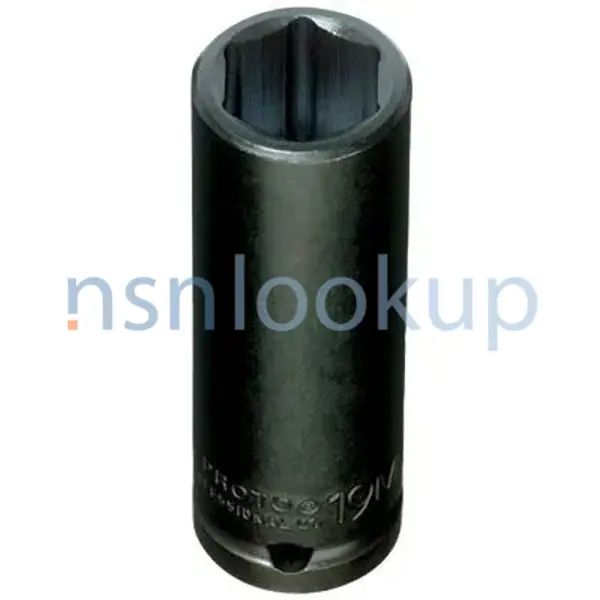

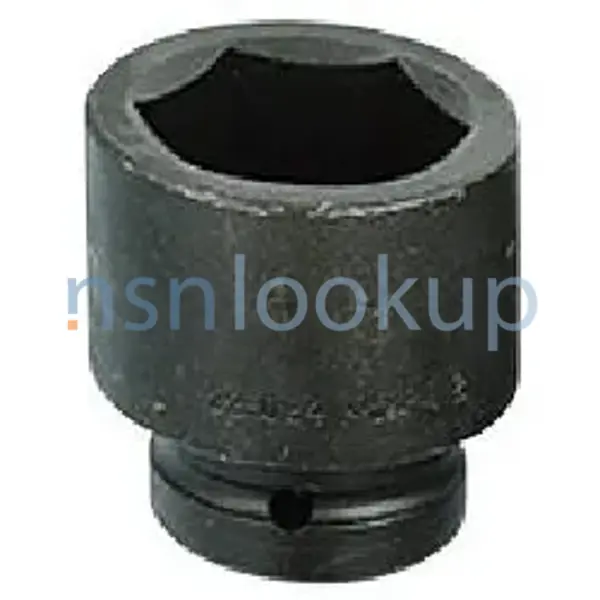

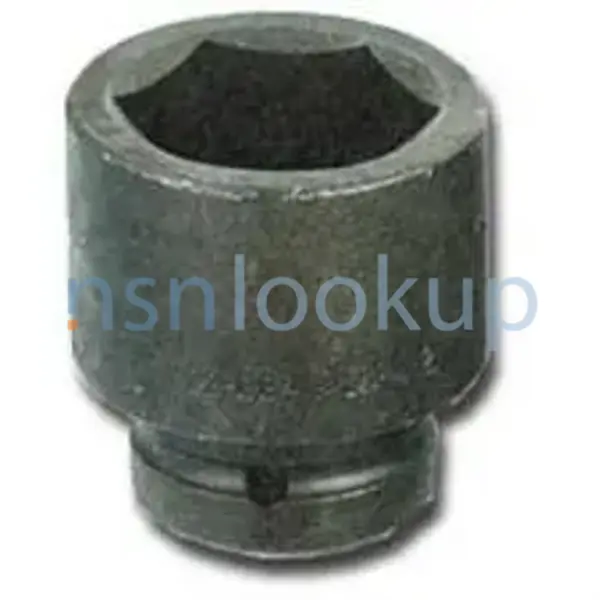

Socket Wrench Socket 5130011003098 011003098 Photo 1/4 5130-01-100-3098 Photo 2/4 5130-01-100-3098
Photo 3/4 NSN 5130-01-100-3098 (Identification United States (US) 4. 5130-01-100-3098 Marketplace Restrictions
J7316M 1AW82 7316M An item having an internal drive at one end made to fit into B107.33M Socket Wrench
/fsg-51/fsc-5130/us 5130-01-113-1554 Socket Wrench Socket 5130011131554 011131554 B107.33M TY1 An item
Restrictions 5130-01-100-3098
5130-01-100-3098 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5130-01-100-3098
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-01-100-3098
- US Army (A192)
- Effective Date:
- 1 Apr 2015
- Supplementary Receivers:
- AZ
- NASA (G751)
- Effective Date:
- 1 Apr 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5130-01-100-3098
- Part Number
- Manufacturer
- Status
- B107.33M
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.33M TY1
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- STP 7316M
- 00NS2 - Kipper Tool Company (Active)
- Secondary Buy
- Secondary Buy
- J7316M
- 1CV05 - The Stanley Works (Active)
- Secondary Buy
- Secondary Buy
- 1AW82
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 7316M
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 7316M
- 93389 - Stanley-Proto Industrial Works Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-100-3098
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Outside Diameter [AHMK]
- 25.4 Millimeters Nominal
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Features Provided [CBBL]
- Power Tool
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type
- Overall Length [ABHP]
- 83.5 Millimeters Nominal
- Wrenching End Opening Depth [AJAP]
- 7.1 Millimeters Nominal
- Wrenching End Outside Diameter [AHMJ]
- 25.4 Millimeters Maximum
- Wrenching Surface Shape [CRWY]
- 6 Point Single End Internal
- Wrenching Surface Size [AJBR]
- 16.0 Millimeters Nominal Single End
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.33 Professional/Industrial Association Standard
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Oxide Overall
Management Data 5130-01-100-3098
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5130-01-100-3098
Freight Information 5130-01-100-3098
5130-01-100-3098 has freight characteristics managed by the Netherlands.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5130-01-100-3098 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5130-01-100-3098 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5130-01-100-3098 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5130-01-100-3098 is not classified as a special type of cargo when transported by water. 5130-01-100-3098 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
