5130-01-083-5827

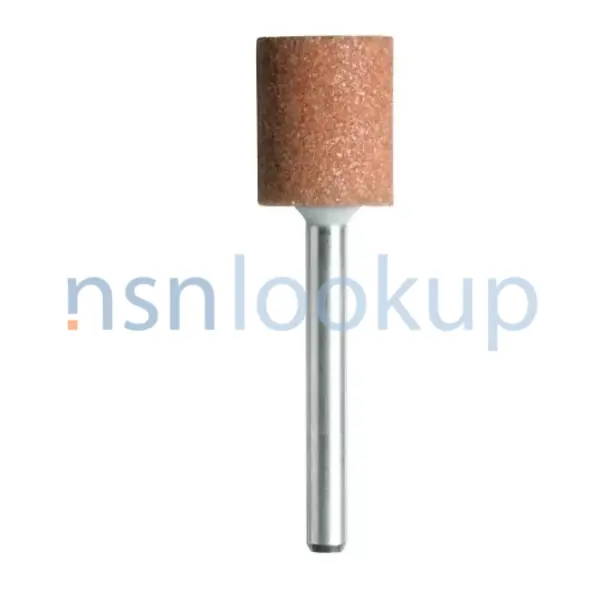

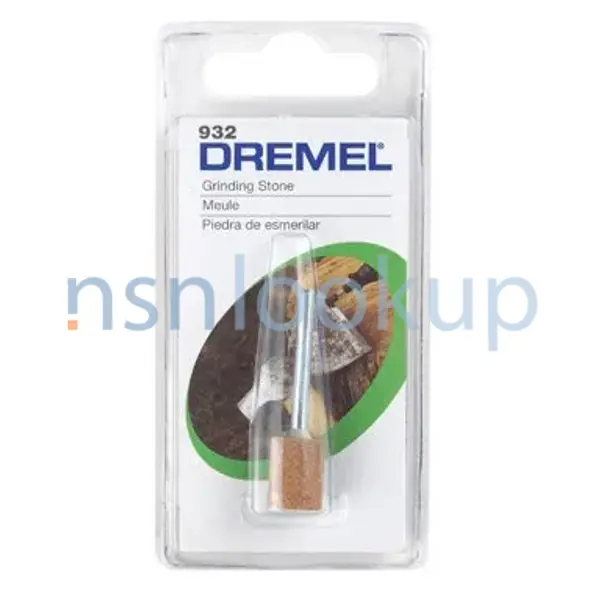

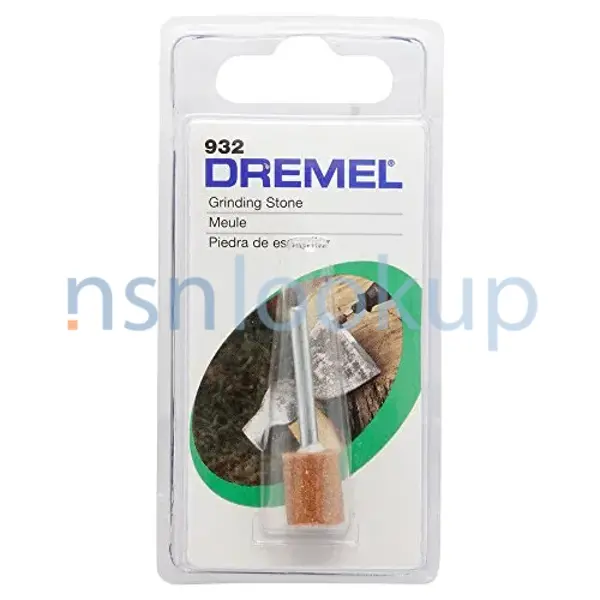

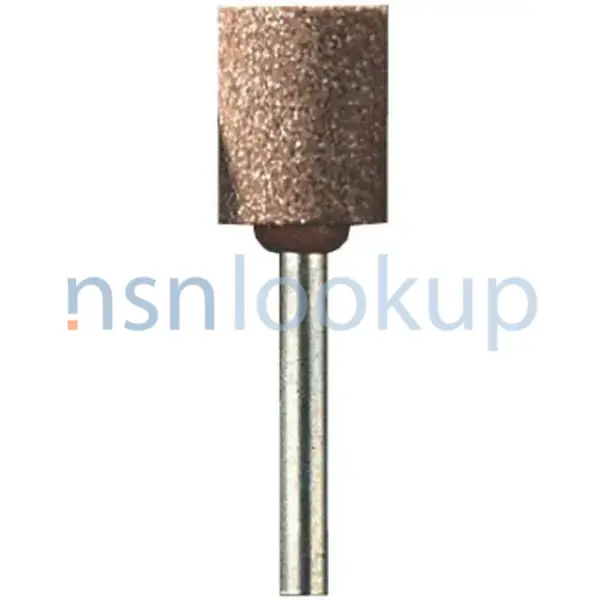

Abrasive Wheel
5130010835827 010835827 0350624119198 932
A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps. View more Abrasive Wheel
November 2023
25
Marketplace 5130-01-083-5827
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-083-5827 3+ Documents (More...)
/fsg-51/fsc-5130/us
Photo 1/7 5130-01-083-5827 Photo 2/7 5130-01-083-5827 Photo 3/7 5130-01-083-5827 Photo 4/7 5130
Request Quotation Updated Every Day 932 RQST NE Updated Every Day 5130-01-083-5827 RQST NE Updated Every
Abrasive Wheel 5130010835827 010835827 Every Day 5130-01-083-5827 RQST NE Updated Every https//
Restrictions 5130-01-083-5827
5130-01-083-5827 is a Abrasive Wheel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-01-083-5827
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-01-083-5827
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- NASA (G010)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Jan 2007
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTHD
- Belgium (ZB01)
- Effective Date:
- 1 Aug 2005
- Netherlands (ZN01)
- Effective Date:
- 1 Jan 2005
Approved Sources 5130-01-083-5827
- Part Number
- Manufacturer
- Status
- 932
- Manufacturer
- 48851 - Dremel Services Center (Active)
- Primary Buy
- Primary Buy
- 932
- U1FS0 - Dremel Limited (Active)
- Secondary Buy
- Secondary Buy
- 0350624119198
- Z0MD7 - Indra Australia Pty Limited (Active)
- Secondary Buy
- Secondary Buy
- 932
- 18531 - Dremel Mfg Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-083-5827
- Characteristic
- Specifications
- FIIG
- Specifications
- A06900
- Abrasive Material [AHCM]
- Aluminum Oxide
- Mounting Method [ADJH]
- Permanently Mounted On Mandrel
- Special Features [FEAT]
- 1/8 In. Dia Shank
- Overall Thickness [ABTA]
- 0.500 Inches Nominal
- Usage Design [ACVE]
- Aggregate, Hard Working
- Wheel Diameter [BCDX]
- 0.375 Inches Nominal
- Wheel Style [CZHQ]
- Cylindrical
DLA Procurement Analysis 5130-01-083-5827
Management Data 5130-01-083-5827
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 6
- Critical Repair Part to a Non-Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- 0
- Physical Category:
- 1
- Bin
Similar Supply Items to 5130-01-083-5827
Freight Information 5130-01-083-5827
5130-01-083-5827 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186590. A Sub NMFC of X. It has a NMFC Description of TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS. 5130-01-083-5827 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91790 which rates the freight between FCL and LCL. 5130-01-083-5827 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5130-01-083-5827 is not classified as a special type of cargo when transported by water. 5130-01-083-5827 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
