5130-01-079-6664
Pneumatic Tool Rivet Set
5130010796664 010796664 915-5-6A
A tool having a formed shank, designed for use with pneumatic riveters, holders-on, hammers, and the like, for driving and setting rivets. Excludes RIVET SET, BLANK, PNEUMATIC TOOL. View more Pneumatic Tool Rivet Set
January 2023
8
Marketplace 5130-01-079-6664
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-079-6664 1+ Documents (More...)
/fsg-51/fsc-5130/us
5130-01-079-6664 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-079-6664
Pneumatic Tool Rivet Set 5130010796664 915-5-6A A tool having a formed shank, designed for use with
Restrictions 5130-01-079-6664
5130-01-079-6664 is a Pneumatic Tool Rivet Set that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5130-01-079-6664
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-01-079-6664
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1999
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5130-01-079-6664
- Part Number
- Manufacturer
- Status
- 915-5-6A
- Manufacturer
- 72139 - Huck International, Inc. (Active)
- Primary Buy
- Primary Buy
- 915-5-6A
- 29666 - Huck Mfg Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-079-6664
- Characteristic
- Specifications
- FIIG
- Specifications
- T294-Y
- Shank Overall Length [ATCG]
- 1.062 Inches Nominal
- Diameter [ABVT]
- 0.249 Inches Nominal
- First Shoulder Length [BGML]
- 0.500 Inches Nominal
- Face Diameter [ARGG]
- 0.562 Inches Nominal

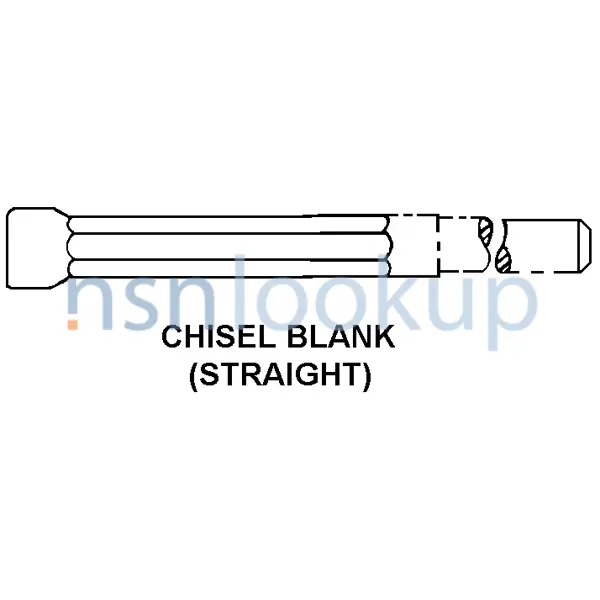

- Body Style [AAQL]
- Chisel Blank Straight
Similar Supply Items to 5130-01-079-6664
Freight Information 5130-01-079-6664
5130-01-079-6664 has freight characteristics managed by the Netherlands.It has a National Motor Freight Classification (NMFC) of 186590. A Sub NMFC of X. It has a NMFC Description of TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS. 5130-01-079-6664 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 5130-01-079-6664 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 91790 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5130-01-079-6664 is not classified as a special type of cargo when transported by water. 5130-01-079-6664 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
