5130-00-912-5451

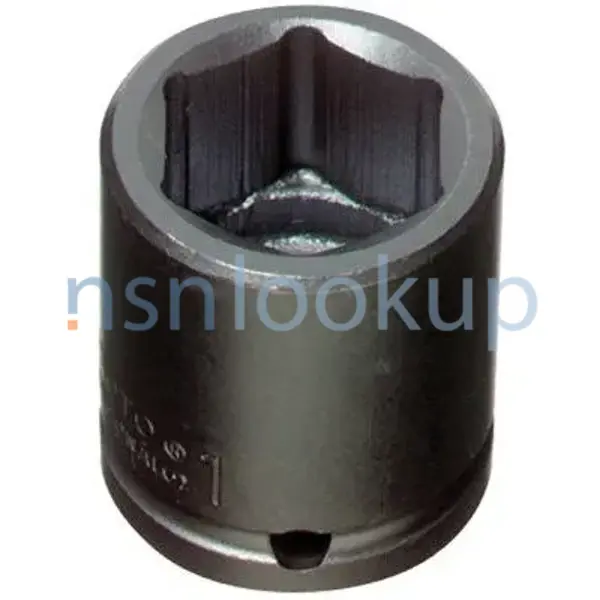

Socket Wrench Socket
5130009125451 009125451 B107.2 B107.2 TY1CL1 STP 7426H J7426H 1AW26 B107.2 CL1STA 7426H
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
August 2023
22
Marketplace 5130-00-912-5451
Request a Quotation from participating marketplace vendors
Related Documents 5130-00-912-5451 5+ Documents (More...)
-660 TY1CL1STAGGG-W CL1STA An item -00 B107.2 CL1STA GGG-W-660 B107.2 CL1STA GGG-W-660 B107.2 TY1CL1
TY1CL1 PF140A B107.2 -00 B107.2 CL1STA GGG-W-660 B107.2 TY1CL1 -00 B107.2 CL1STA GGG-W B107.2 TY1CL1
Socket Wrench Socket 5130009125451 009125451 Account Upgrade 5130-00-912-5451Socket Wrench Socket5130009125451
009125451 B107.2 B107.2 TY1CL1 STP 7426H Socket Wrench Socket 5120015930337015930337 $1 a day Upgrade
5120015930337015930337 a day Services Administration (Active) Incomplete Secondary Reference RNCC 5 RNVC 1 DAC 4 STP 7426H
Every https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-00-912-5451 Socket Wrench Socket 5130009125451
Socket Wrench Socket 5130009125451 009125451 Upgrade 5130-00-912-5451Socket Wrench Socket5130009125451
009125451 B107.2 B107.2 TY1CL1 STP 7426H J7426H Request Quotation FedMall Updated Every 15 Minutes 5130
GGG-W-660 B107.2 TY1CL1 PF140A TY1CL1 41-89461 -00 B107.2 CL1STA GGG-W-660 B107.2 TY1CL1 https//www.nsnlookup.com
41-89461 -00 B107.2 B107.2 CL1STA GGG-W-660 B107.2 TY1CL1 -00 B107.2 CL1STA GGG-W-660 B107.2 TY1CL1
Restrictions 5130-00-912-5451
5130-00-912-5451 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5130-00-912-5451
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-00-912-5451
- US Army (A192)
- Effective Date:
- 1 Oct 2004
- Supplementary Receivers:
- AZ
- NASA (G751)
- Effective Date:
- 1 Jan 2001
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5130-00-912-5451
- Part Number
- Manufacturer
- Status
- B107.2
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.2 TY1CL1
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- STP 7426H
- 00NS2 - Kipper Tool Company (Active)
- Secondary Buy
- Secondary Buy
- J7426H
- 1CV05 - The Stanley Works (Active)
- Secondary Buy
- Secondary Buy
- 1AW26
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- B107.2 CL1STA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 7426H
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-00-912-5451
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Outside Diameter [AHMK]
- 1.019 Inches Minimum And 1.335 Inches Maximum
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Features Provided [CBBL]
- Power Tool
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 1 Class
- Overall Length [ABHP]
- 1.812 Inches Maximum
- Wrenching End Opening Depth [AJAP]
- 0.418 Inches Minimum
- Wrenching End Outside Diameter [AHMJ]
- 0.135 Inches Minimum And 1.325 Inches Maximum
- Wrenching Surface Shape [CRWY]
- 6 Point Single End Internal
- Wrenching Surface Size [AJBR]
- 0.812 Inches Nominal Single End
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.2 Professional/Industrial Association Standard
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Oxide Overall
Management Data 5130-00-912-5451
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 5130-00-912-5451
Freight Information 5130-00-912-5451
5130-00-912-5451 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5130-00-912-5451 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5130-00-912-5451 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5130-00-912-5451 is not classified as a special type of cargo when transported by water. 5130-00-912-5451 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
