5130-00-714-0600

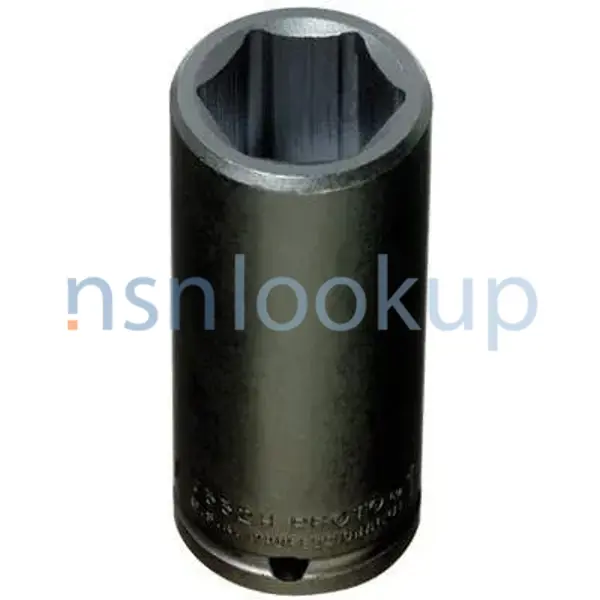

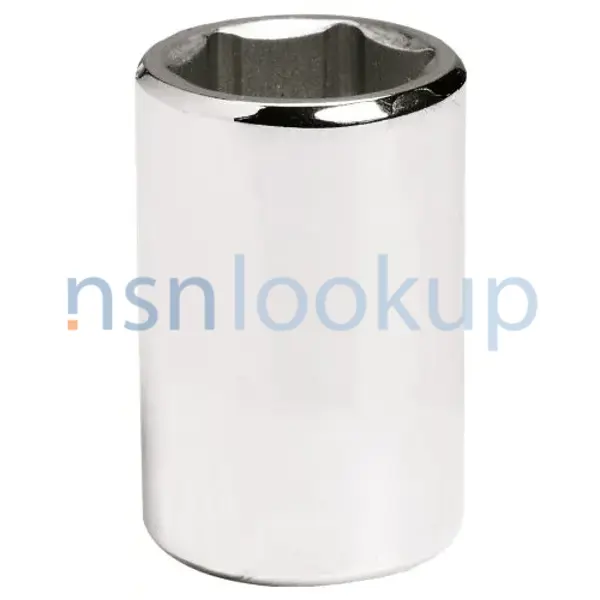

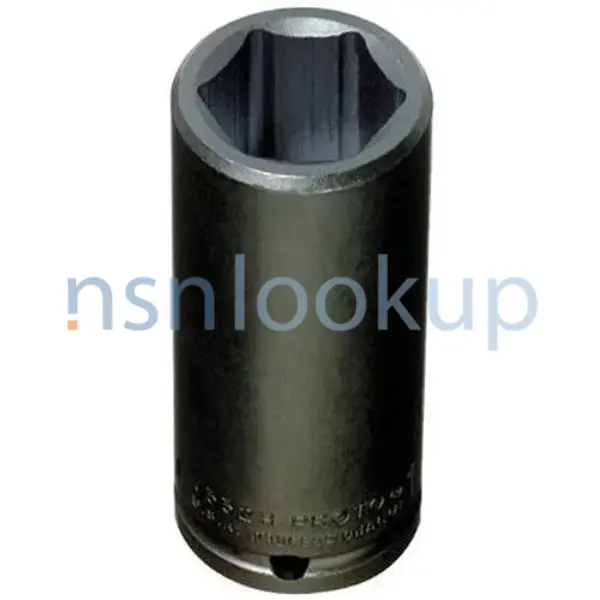

Socket Wrench Socket
5130007140600 007140600 B107.2 B107.2 TY1CL2 STP 7330H J7330H 7330H B107.2 CL1STB 3819320 GGG-W-660 TY1CL1STB GGG-W-660 5120PL1600001
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
November 2023
24
Marketplace 5130-00-714-0600
Request a Quotation from participating marketplace vendors
Related Documents 5130-00-714-0600 5+ Documents (More...)
12-616 GGG-W-660 TY1CL1STB https having an internal drive B107.2 CL1STB P22161 GGG-W -1/8 GGG-W-
12-616 GGG-W-660 TY1CL1STB https having an internal drive B107.2 drive B107.2 CL1STB P22161 GGG-W-660
Socket Wrench Socket 5130007140600 007140600 Account Upgrade 5130-00-714-0600Socket Wrench Socket5130007140600
007140600 B107.2 B107.2 TY1CL2 STP 7330H CL1STB P22161 GGG-W-660 12-616 GGG-W-660 TY1CL1STB https//www.nsnlookup.com
vendors Request FedMall Updated Every 15 Minutes 5130-01-648-7896 BUY NE FedMall Updated Every Day J7330H
Socket Wrench Socket 5130007140600 007140600 Upgrade 5130-00-714-0600Socket Wrench Socket5130007140600
12-616 GGG-W-660 TY1CL1STB https having an internal drive B107.2 CL1STB P22161 GGG-W -660 TY1CL1STA
B107.2 CL1STB P22161 GGG-W-660 12-616 GGG-W-660 P22161 GGG-W-660 12-616 GGG-W-660 TY1CL1STB https https
12-616 GGG-W-660 TY1CL1STB https having an internal drive B107.2 drive B107.2 CL1STB P22161 GGG-W
660 12-616 GGG-W-660 TY1CL1STB https having an internal drive B107.2 CL1STBGGG-W B107.2 CL1STB P22161
Restrictions 5130-00-714-0600
5130-00-714-0600 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-00-714-0600
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-00-714-0600
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AZBF
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- HSJN
- Supplementary Receivers:
- JV
- Poland (WP01)
- Effective Date:
- 1 Jul 2015
- Singapore (YJ01)
- Effective Date:
- 1 Apr 2010
- United Kingdom (ZK01)
- Effective Date:
- 1 Oct 2011
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5130-00-714-0600
- Part Number
- Manufacturer
- Status
- B107.2
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.2 TY1CL2
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- STP 7330H
- 00NS2 - Kipper Tool Company (Active)
- Secondary Buy
- Secondary Buy
- J7330H
- 1CV05 - The Stanley Works (Active)
- Secondary Buy
- Secondary Buy
- 3819320
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 7330H
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.2 CL1STB
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 3819320
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-660 TY1CL1STB
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-660
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5120PL1600001
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
Datasheet 5130-00-714-0600
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Outside Diameter [AHMK]
- 1.048 Inches Minimum And 1.485 Inches Maximum
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Features Provided [CBBL]
- Power Tool
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 2 Class
- Overall Length [ABHP]
- 3.187 Inches Minimum And 3.688 Inches Maximum
- Wrenching Surface Shape [CRWY]
- 6 Point Single End Internal
- Wrenching Surface Size [AJBR]
- 0.938 Inches Nominal Single End
- Wrenching End Opening Depth [AJAP]
- 0.490 Inches Minimum
- Wrenching End Outside Diameter [AHMJ]
- 1.280 Inches Minimum And 1.455 Inches Maximum
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.2 Professional/Industrial Association Standard
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Oxide Overall
DLA Procurement Analysis 5130-00-714-0600
Management Data 5130-00-714-0600
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2023
- US Marine Corps (DM)
- EA
- Subscribe
- 6
- EA
- May 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 6
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5130-01-348-9341
- 0
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5130-01-590-4616
- 4
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5130-00-714-0600
Freight Information 5130-00-714-0600
5130-00-714-0600 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5130-00-714-0600 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5130-00-714-0600 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5130-00-714-0600 is not classified as a special type of cargo when transported by water. 5130-00-714-0600 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
