5130-00-684-6964

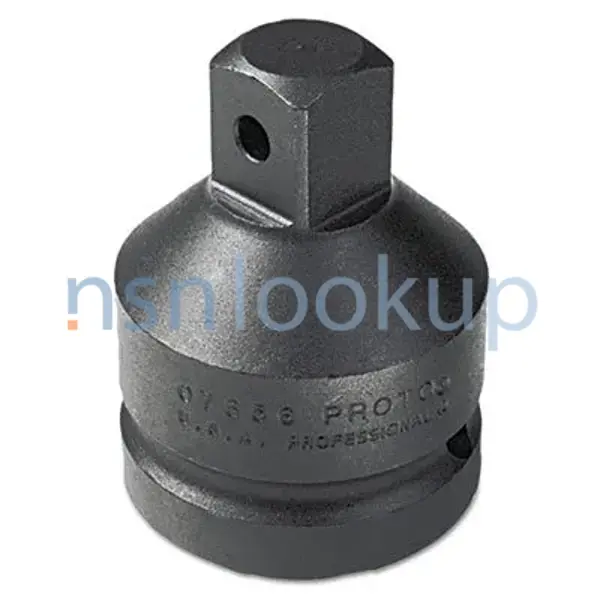

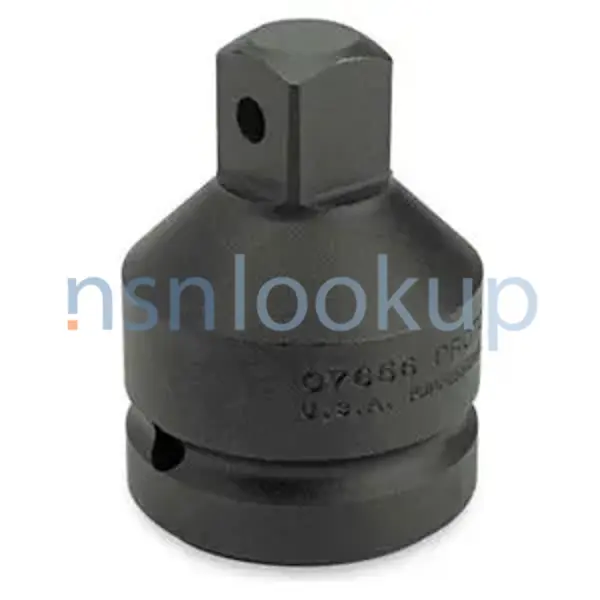

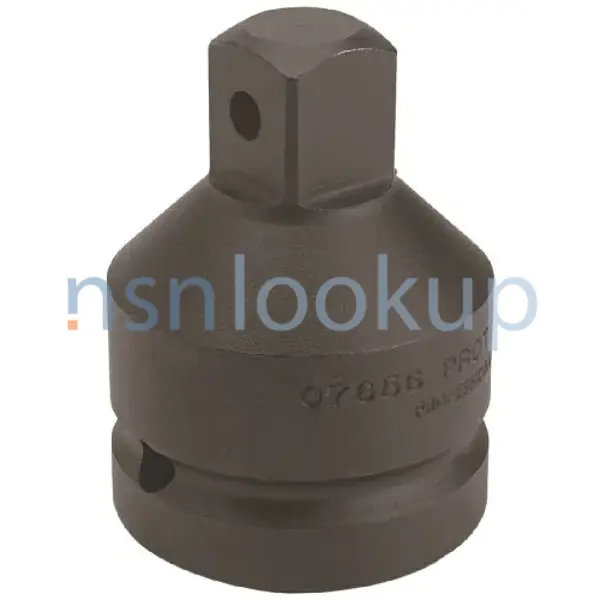

Socket Wrench Adapter
5130006846964 006846964 B107.2 J07656 B107.2 TY5 GGG-W-660 TY3 GGG-W-660 07656
A rigid adapter less than four inches (101.6 mm) long used to connect sockets to handles, power tools, or to other attachments which are not designed for direct mating to each other. See also RATCHET ATTACHMENT, SOCKET WRENCH; UNIVERSAL JOINT, SOCKET WRENCH ATTACHMENT; EXTENSION, SOCKET WRENCH; and ADAPTER-EXTENSION, SOCKET WRENCH; Excludes ADAPTER, SOCKET, CROWFOOT SOCKET WRENCH HEAD; SOCKET, WRENCH, REFRIGERATION VALVE STEM; and HOLDER, SCREWDRIVER BIT, FEMALE SQUARE DRIVE. View more Socket Wrench Adapter
May 2023
10
Marketplace 5130-00-684-6964
Request a Quotation from participating marketplace vendors
Related Documents 5130-00-684-6964 5+ Documents (More...)
Day 07656 RQST NE Updated Every Day 5130-00-684-6964 RQST NE Updated Every Day 5130-00-684-6964 RQST
/fsg-51/fsc-5130/us 5130-00 at one end B107.2 Adapter https// at one end B107.2 TY5 EX506 https GGG-W
B107.2 TY5 GGG-W-660 https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-00 at one end B107.2 TY5 EX506
006846964 Account Upgrade 5130-00-684-6964Socket Wrench Adapter5130006846964 006846964 B107.2 J07656
GGG-W-660 TY3 https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-00 at one end B107.2 Adapter https//
at one end B107.2 TY5 EX506 https GGG-W-660 TY3 https//www.nsnlookup.com https//www.nsnlookup.com https
(101.6 GGG-W-660 TY3 https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-00 at one end B107.2 www.nsnlookup.com
/fsg-51/fsc-5130/us 5130-00-684-6964 Socket Wrench Adapter 5130006846964 006846964 J07656 B107.2 TY5
WRENCH RQST NS Request Quotation Updated Every Day J07656 RQST NE Updated Every Day 07656 RQST https
//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-00-684-6964 Socket Wrench Adapter 5130006846964 006846964
Restrictions 5130-00-684-6964
5130-00-684-6964 is a Socket Wrench Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-00-684-6964
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-00-684-6964
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AZ
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2014
- Supplementary Collaborators:
- GG
- Spain (YB01)
- Effective Date:
- 1 Jan 2011
Approved Sources 5130-00-684-6964
- Part Number
- Manufacturer
- Status
- B107.2
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- J07656
- 1CV05 - The Stanley Works (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- B107.2 TY5
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- GGG-W-660 TY3
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-660
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 07656
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-00-684-6964
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Oxide Overall
- Style Designator [STYL]
- External-Internal
- Overall Length [ABHP]
- 3.000 Inches Maximum
- Outside Diameter [ABKV]
- 2.250 Inches Maximum
- Drive Surface Size [ATNC]
- 1.000 Inches Nominal First End
- Drive Surface Size [ATNC]
- 0.750 Inches Nominal Second End
- Drive End Shape [CTCT]
- Square First End Internal
- Drive End Shape [CTCT]
- Square Second End External
- Features Provided [CBBL]
- Power Tool
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.2 Professional/Industrial Association Standard
- Nondefinitive Spec/Std Data [ZZZT]
- 5 Type
Management Data 5130-00-684-6964
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5130-00-684-6964
Freight Information 5130-00-684-6964
5130-00-684-6964 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5130-00-684-6964 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5130-00-684-6964 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5130-00-684-6964 is not classified as a special type of cargo when transported by water. 5130-00-684-6964 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
