5130-00-596-4283
Pneumatic Tool Rivet Set
5130005964283 005964283 915-1-10A
A tool having a formed shank, designed for use with pneumatic riveters, holders-on, hammers, and the like, for driving and setting rivets. Excludes RIVET SET, BLANK, PNEUMATIC TOOL. View more Pneumatic Tool Rivet Set
January 2023
17
Marketplace 5130-00-596-4283
Request a Quotation from participating marketplace vendors
Related Documents 5130-00-596-4283 1+ Documents (More...)
/fsg-51/fsc-5130/us
Every Day 5130-00-596-4283 RQST Updated Every Day 5130-00-596-4283 RQST NE Related Documents 5130-00
Tool Rivet Set 5130005964283 915-1-10A A tool having a formed shank, designed for use with pneumatic
Restrictions 5130-00-596-4283
5130-00-596-4283 is a Pneumatic Tool Rivet Set that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-00-596-4283
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-00-596-4283
- US Coast Guard (C015)
- Effective Date:
- 1 Apr 1991
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2009
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5130-00-596-4283
- Part Number
- Manufacturer
- Status
- 915-1-10A
- Manufacturer
- 72139 - Huck International, Inc. (Active)
- Primary Buy
- Primary Buy
- 915-1-10A
- 62946 - Gage Bilt, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 915-1-10A
- 29666 - Huck Mfg Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-00-596-4283
- Characteristic
- Specifications
- FIIG
- Specifications
- T294-Y

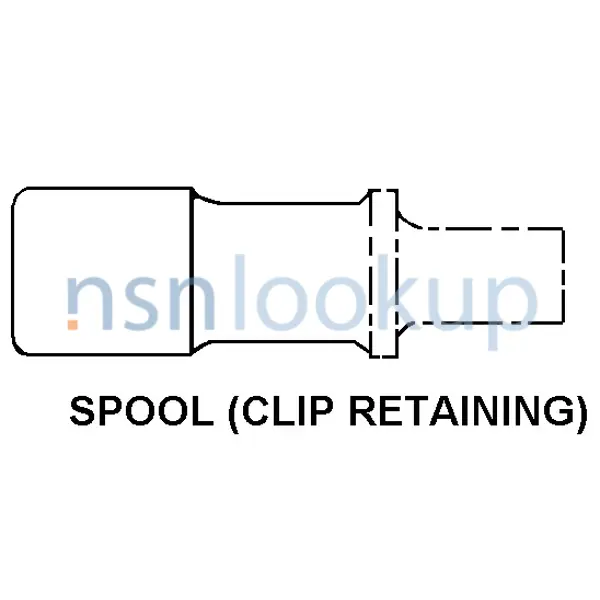

- Body Style [AAQL]
- Spool Clip Retaining
- Cup Depth [BRPD]
- 0.844 Inches Nominal
- Cupped Design [BYLM]
- Mushroom
- Diameter [ABVT]
- 0.498 Inches Nominal
- Shank Style [AKZJ]
- Parker Taper
- Radius [ABGG]
- 0.750 Inches Nominal
- Rivet Size For Which Designed [BZYN]
- 0.313 Inches Nominal
- Shank Overall Length [ATCG]
- 1.625 Inches Nominal
- Overall Length [ABHP]
- 3.500 Inches Nominal
- Unit Type [APQB]
- Cupped
Management Data 5130-00-596-4283
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
Similar Supply Items to 5130-00-596-4283
Freight Information 5130-00-596-4283
5130-00-596-4283 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186590. A Sub NMFC of X. It has a NMFC Description of TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS. 5130-00-596-4283 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91790 which rates the freight between FCL and LCL. 5130-00-596-4283 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5130-00-596-4283 is not classified as a special type of cargo when transported by water. 5130-00-596-4283 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
