5130-00-068-5518
Abrasive Wheel
5130000685518 000685518 B74.2 AND B7.1 B74.2 A39D2 MIL-W-17663
A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps. View more Abrasive Wheel
January 2023
17
Marketplace 5130-00-068-5518
Request a Quotation from participating marketplace vendors
Related Documents 5130-00-068-5518 5+ Documents (More...)
/fsg-51/fsc-5130/us
MIL-W-17663 WHEEL,ABRASIVE 7 EA NS Request Quotation Updated Every Day 5130-00-068-5518 RQST NE Updated
Every Day 5130-00-068-5518 RQST Updated Every Day 5130-00-068-5518 RQST NE Related Documents 5130-00
Abrasive Wheel 5130000685518 000685518 a day Upgrade your Account Upgrade 5130-00-068-5518Abrasive
Wheel5130000685518 000685518 B74.2 AND B7.1 B74.2 A39D2 MIL-W-17663 A rigid piece of abrasive with or
Abrasive Wheel 5130000685518 000685518 a day Upgrade your Account Upgrade 5130-00-068-5518Abrasive
Wheel5130000685518 000685518 B74.2 AND B7.1 B74.2 A39D2 MIL-W-17663 A rigid piece of abrasive with or
A-46-R-G-BF.ANSIB74.2 A rigid A46 MIL-W-17663 GPA MIL-W-17663 https MIL-W-17663 A-46-R-G-BF.ANSIB74.2
-TBNA3 MIL-W B74.13 A46 MIL-W-17663 GPA https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-00-068-5518
A-46-R-G-BF.ANSIB74.2 A rigid A46 MIL-W-17663 GPA MIL-W-17663 https MIL-W-17663 A-46-R-G-BF.ANSIB74.2
-TBNA3 MIL-W B74.13 A46 MIL-W-17663 GPA https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-00-068-5518
Restrictions 5130-00-068-5518
5130-00-068-5518 is a Abrasive Wheel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-00-068-5518
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-00-068-5518
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5130-00-068-5518
- Part Number
- Manufacturer
- Status
- B74.2 AND B7.1
- Manufacturer
- 80204 - American National Standards (Active)
- Incomplete Reference
- Incomplete Reference
- B74.2 A39D2
- 80204 - American National Standards (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MIL-W-17663
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-00-068-5518
- Characteristic
- Specifications
- FIIG
- Specifications
- A06900
- Abrasive Material [AHCM]
- Aluminum Oxide
- Screen Grit Size Designator [AHCN]
- 60
- Usage Design [ACVE]
- Metal Working

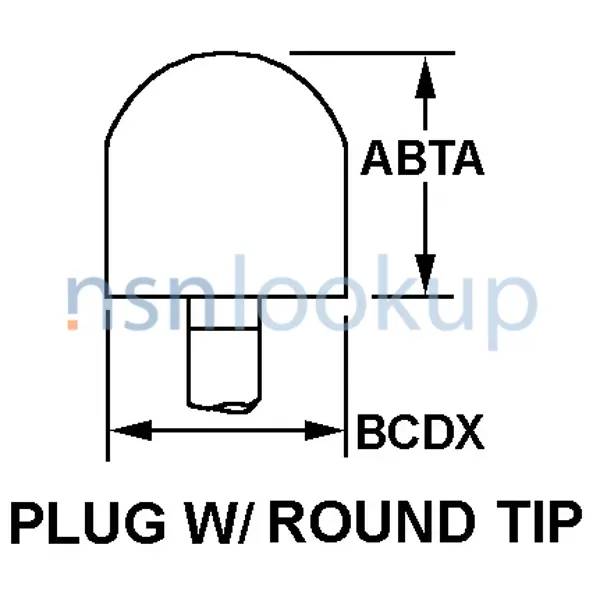

- Wheel Style [CZHQ]
- Plug W/Round Tip
- Overall Thickness [ABTA]
- 0.625 Inches Nominal
- Wheel Diameter [BCDX]
- 0.750 Inches Nominal
- Mounting Method [ADJH]
- Spindle
- Spindle Diameter [AHDQ]
- 0.250 Inches Nominal
- Spindle Length [AHDR]
- 1.500 Inches Nominal
- Binder Material [ADYW]
- Vitreous Substance
- Abrasive Bond Grade Designation [AHDY]
- P Medium
- Departure From Cited Designator [ZZZX]
- As Mod By O/A Thk
Similar Supply Items to 5130-00-068-5518
Freight Information 5130-00-068-5518
5130-00-068-5518 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 001020. A Sub NMFC of X. It has a NMFC Description of ABRASIVES:CRUDE OR LUMP. 5130-00-068-5518 is rated as class 55 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 02030 which rates the freight between FCL and LCL. 5130-00-068-5518 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5130-00-068-5518 is not classified as a special type of cargo when transported by water. 5130-00-068-5518 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
