5120-01-661-6751
Retaining Ring Pliers
5120016616751 016616751 11A7000761 IR-700H
See also PLIERS and PLIERS (as modified). View more Retaining Ring Pliers
January 2023
4
Marketplace 5120-01-661-6751
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-661-6751 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5120-01-661-6751 RQST NE Updated Every Day 5120-01-661-6751 RQST
Updated Every Day 5120-01-661-6751 RQST NE Related Documents 5120-01-661-6751 1+ Documents ( More...
Restrictions 5120-01-661-6751
5120-01-661-6751 is a Retaining Ring Pliers that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-661-6751
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-661-6751
- US Army (A192)
- Effective Date:
- 1 Mar 2017
- Supplementary Receivers:
- AZ
- NASA (G751)
- Effective Date:
- 1 Mar 2017
Approved Sources 5120-01-661-6751
- Part Number
- Manufacturer
- Status
- IR-700H
- Manufacturer
- 85688 - Stride Tool Inc. (Obsolete)
- Original Design
- Original Design
- 11A7000761
- 5B5M3 - Devcom Chemical Biological Center (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5120-01-661-6751
- Characteristic
- Specifications
- FIIG
- Specifications
- T294-L
- End Item Identification [AGAV]
- Arss
- Pliers Style Designator [BSLF]

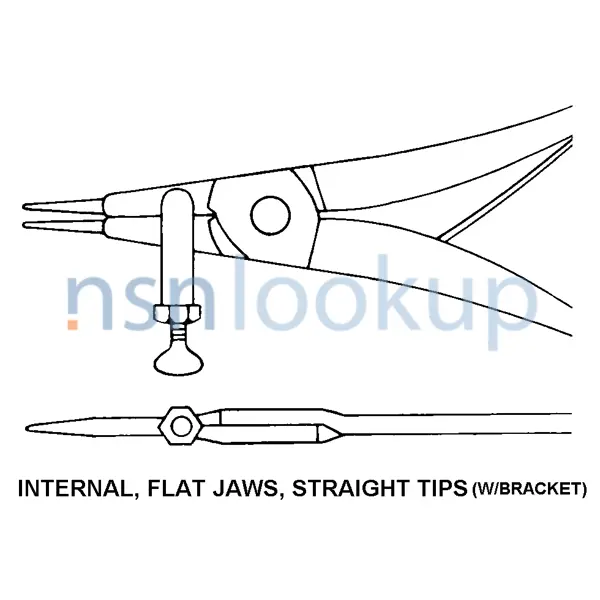

- Internal, Flat Jaws, Straight Tips
- Ring Size/Pliers Tip Diameter [BTDN]
- 0.070 In. Dia Tip
- Overall Length [ABHP]
- 6.500 Inches Nominal
- Tip Angle In Deg [BSLJ]
- 0.0
- Special Features [FEAT]
- With Stop And Spring; Comfort Grip Handles
Management Data 5120-01-661-6751
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5120-01-661-6751
Freight Information 5120-01-661-6751
5120-01-661-6751 has freight characteristics.. 5120-01-661-6751 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
