5120-01-649-7579
Torch And Regulator Wrench
5120016497579 016497579 T-18090028 ZHVY0009
A nonadjustable tool having multisize openings for turning mixing head nuts, hose connection nuts, cylinder connection nuts, and the like on welding and cutting outfits. View more Torch And Regulator Wrench
May 2023
7
Marketplace 5120-01-649-7579
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-649-7579 1+ Documents (More...)
BUY NE FedMall Updated Every Day T-18090028 RQST NE Updated Every Day ZHVY0009 RQST NE Updated
Every Day 5120-01-649-7579 RQST NE Updated Every Day 5120-01-649-7579 RQST Updated Every Day 5120-01-
Restrictions 5120-01-649-7579
5120-01-649-7579 is a Torch And Regulator Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-649-7579
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-649-7579
- US Army (A192)
- Effective Date:
- 1 Nov 2015
- Supplementary Receivers:
- AZ
- NASA (G751)
- Effective Date:
- 1 Nov 2015
- US Marine Corps (MC14)
- Effective Date:
- 1 Nov 2015
Approved Sources 5120-01-649-7579
- Part Number
- Manufacturer
- Status
- T-18090028
- Manufacturer
- 55719 - Idsc Holdings Llc (Active)
- Primary Buy
- Primary Buy
- ZHVY0009
- 55719 - Idsc Holdings Llc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5120-01-649-7579
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- End Item Identification [AGAV]
- Secm
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 7.500 Inches Nominal
- Special Features [FEAT]
- 3/8 In. Square Socket On Body Of Handle
- Wrenching Surface Size [AJBR]
- 0.438 Inches Nominal And 0.688 Inches Nominal And 0.875 Inches Nominal First End
- Wrenching Surface Size [AJBR]
- 0.750 Inches Nominal And 1.000 Inches Nominal And 1.125 Inches Nominal Second End

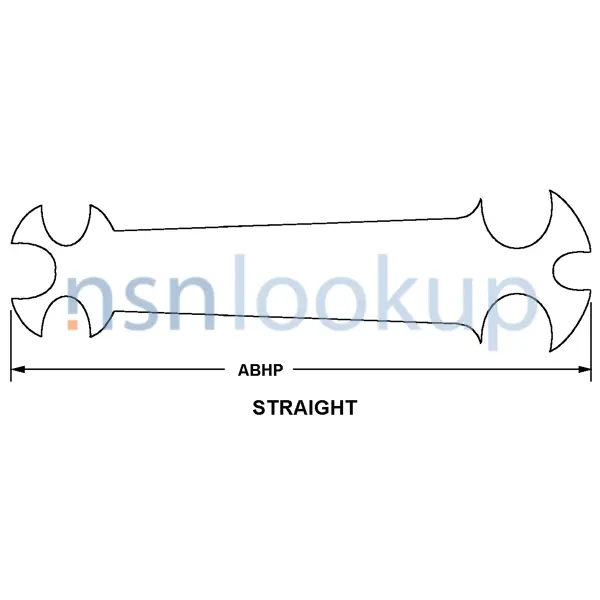

- Style Designator [STYL]
- Straight
- Surface Treatment [SFTT]
- Oxide Overall
Management Data 5120-01-649-7579
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5120-01-649-7579
Freight Information 5120-01-649-7579
5120-01-649-7579 has freight characteristics.. 5120-01-649-7579 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
