5120-01-617-6233

Socket Wrench Socket

5120016176233 016176233 AS954 AS954 TY1CL1STA 232510 80204 AS955 AS955 TY1CL1STA 37-110

An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket

5120-01-617-6233 SOCKET,SOCKET WRENCH 5120016176233 016176233

Managed by United States
NSN Created on 28 Mar 2013
Data Last Changed
November 2023
NATO Update Count
16
NATO Data Quality

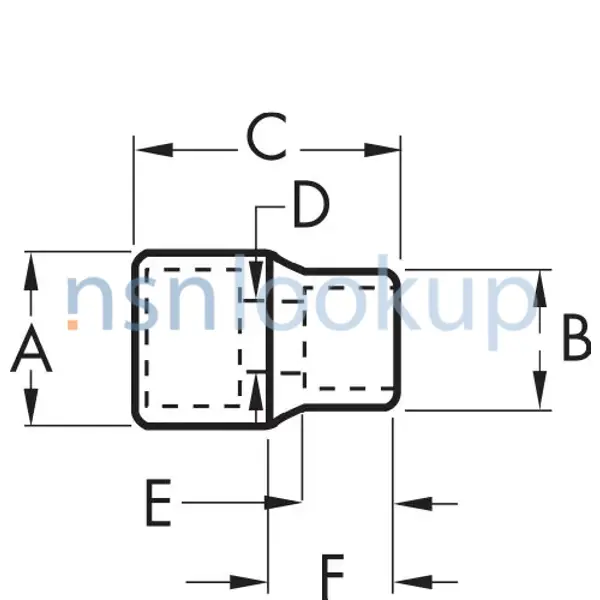

5120-01-617-6233 SOCKET,SOCKET WRENCH 5120016176233 016176233 1/3
5120-01-617-6233 Photo 1/3

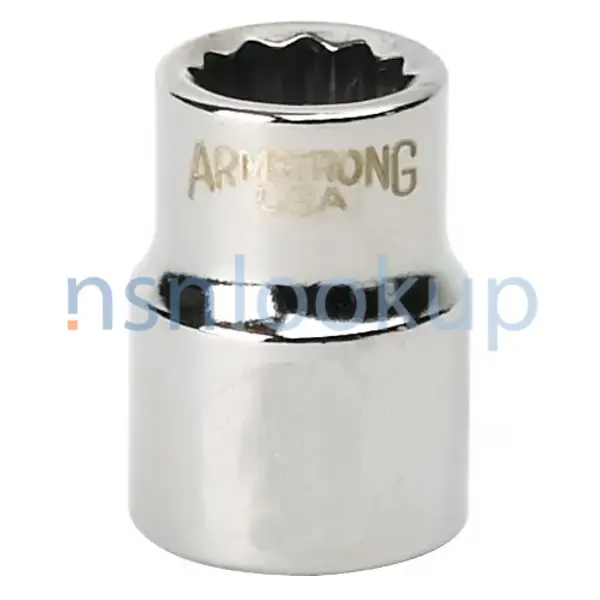

5120-01-617-6233 SOCKET,SOCKET WRENCH 5120016176233 016176233 2/3
5120-01-617-6233 Photo 2/3
STYL Style 168 for 5120-01-617-6233 3/3
NSN 5120-01-617-6233 (Identification) 3/3

5120-01-617-6233 Stock and Availability Marketplace 5120-01-617-6233

Need Help?
Request a Quotation from participating marketplace vendors

5120-01-617-6233 Related Documents Related Documents 5120-01-617-6233 5+ Documents (More...)

AS954 AS954 TY1CL1STA 232510 80204 AS955 AS955 TY1CL1STA 37-110 An item having an internal drive at
Buy Now Updated Every Day 80204 RQST NE Updated Every Day 37-110 RQST NE Updated Every Day 5120-01-617
RQST NE Updated Every Day 37-110 RQST NE Updated Every Day 5120-01-617 AS954 TY1CL1STA TY1CL1STAB107.5M
AS954 TY1CL1STA 11314 AS955 AS955 TY1CL1STA An item having an internal drive at one end made to fit
/fsg-51/fsc-5120/us 5120-01-429-3653 Socket Wrench Socket Set 5120014293653,AS954 AS954 TY1CL1STA 219FMY
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-617-6233 Socket Wrench Socket 5120016176233 016176233
enable JavaScript in your web browser . 2540-22-123-6760Lift Fork Assembly2540221236760 221236760 232510
-000 BUSHING 3 EA NS Request Quotation Subscribe to View Vendor Details... 232510-000 BUSHING 1 EA NS
$1 a day Upgrade your Account Upgrade 3040-01 -309-8143Straight Shaft3040013098143 013098143 232510
for $1 a day Upgrade your Account Upgrade 3040-01 -309-8143Straight Shaft3040013098143 013098143 232510
for $1 a day Upgrade your Account Upgrade 3040-01 -309-8143Straight Shaft3040013098143 013098143 232510
fsg-30/fsc-3040/nl 3040-17-025-2911 Straight Shaft 3040170252911 170252911 View Vendor Details... 232510
Upgrade for $1 a day Upgrade your Account Upgrade 3120-01-005-4125Bushing3120010054125 010054125 232510
-000 BUSHING 3 EA NS Request Quotation Subscribe to View Vendor Details... 232510-000 BUSHING 1 EA NS
-000 BUSHING 1 EA NS BUSHING 3 EA NS Request Quotation Subscribe to View Vendor Details... 232510-000

5120-01-617-6233 Demil Restrictions 5120-01-617-6233

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: A | ADPEC: 0

5120-01-617-6233 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

5120-01-617-6233 HTS and ScheduleB Import and Export 5120-01-617-6233

5120-01-617-6233 End Users End Users 5120-01-617-6233

US Army (A192)
Effective Date:
1 Oct 2015
Supplementary Receivers:
AZBF
NASA (G751)
Effective Date:
1 Oct 2015
US Marine Corps (MC14)
Effective Date:
1 Feb 2016
Hungary (WH01)
Effective Date:
1 Mar 2013

5120-01-617-6233 Manufacturers Approved Sources 5120-01-617-6233

5120-01-617-6233 Technical Data Datasheet 5120-01-617-6233

Characteristic
Specifications
FIIG
A102A0
Drive End Outside Diameter [AHMK]
13.9 Millimeters Nominal
Drive End Shape [CTCT]
Square Single End Internal
Drive Surface Size [ATNC]
0.250 Inches Nominal Single End
Features Provided [CBBL]
Manual Tool
Material [MATT]
Steel Overall
Nondefinitive Spec/Std Data [ZZZT]
1 Type And 1 Class And A Style
Overall Length [ABHP]
22.3 Millimeters Nominal
Wrenching End Opening Depth [AJAP]
12.7 Millimeters Nominal
Wrenching End Outside Diameter [AHMJ]
13.9 Millimeters Nominal
Wrenching Surface Shape [CRWY]
12 Point Single End Internal
Wrenching Surface Size [AJBR]
10.0 Millimeters Nominal Single End
Specification/Standard Data [ZZZK]
81343-Asme As955 Professional/Industrial Association Standard
Style Designator [STYL]
Internal-Internal
Surface Treatment [SFTT]
Chromium Overall

5120-01-617-6233 Management Data Management Data 5120-01-617-6233

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Jan 2023
US Marine Corps (DM)
EA
Subscribe
May 2019
Department of the Navy (DN)
EA
Subscribe

Army Army

Materiel Category and Inventory Manager:
E
General Supplies (DLA/GSA Items)
Appropriation and Budget Activity:
2
Stock Fund Secondary Items
Management Inventory Segment:
2
Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
Weapons System / End Item / Homogeneous Group:
00
DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements:
X
Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy Navy

Cognizance:
9Q

Marine Corps Marine Corps

Stores Account:
1
Stock Fund Account Item
Combat Essentiality:
2
Non-Critical Repair Part
Echelon Management:
02
Operational Test:
0
Physical Category:
1
Bin

5120-01-617-6233 Related Items NATO Stock Numbers Related to 5120-01-617-6233

5120-01-617-6233 Freight Data Freight Information 5120-01-617-6233

5120-01-617-6233 has freight characteristics managed by Hungary.. 5120-01-617-6233 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
