5120-01-617-6185

Socket Wrench Socket

5120016176185 016176185 AS954 AS954 TY1CL1STB 80781 46-10MM AS955 AS955 TY1CL1STC 39-310 456720019907

An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket

Managed by United States

NSN Created on 28 Mar 2013

Data Last Changed
November 2023

NATO Update Count
15

NATO Data Quality

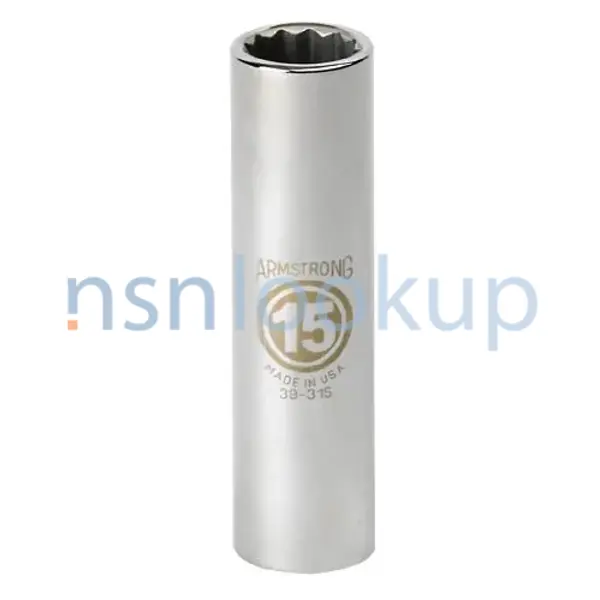

5120-01-617-6185 SOCKET,SOCKET WRENCH 5120016176185 016176185 1/6 — 5120-01-617-6185 Photo 1/6

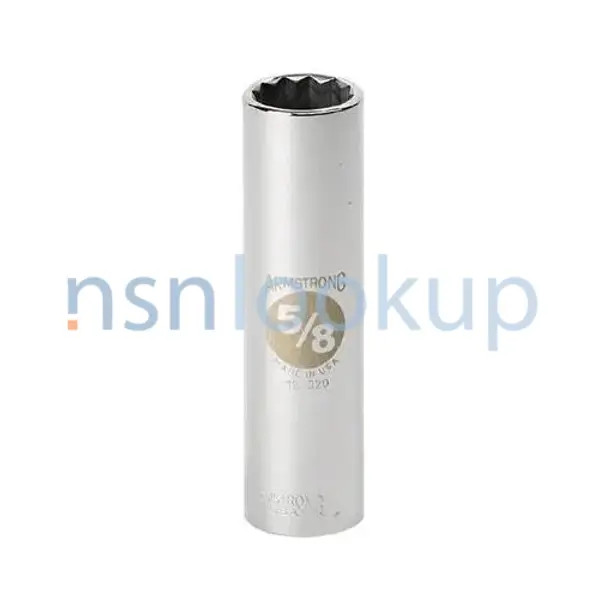

5120-01-617-6185 SOCKET,SOCKET WRENCH 5120016176185 016176185 2/6 — 5120-01-617-6185 Photo 2/6

5120-01-617-6185 SOCKET,SOCKET WRENCH 5120016176185 016176185 3/6 — 5120-01-617-6185 Photo 3/6

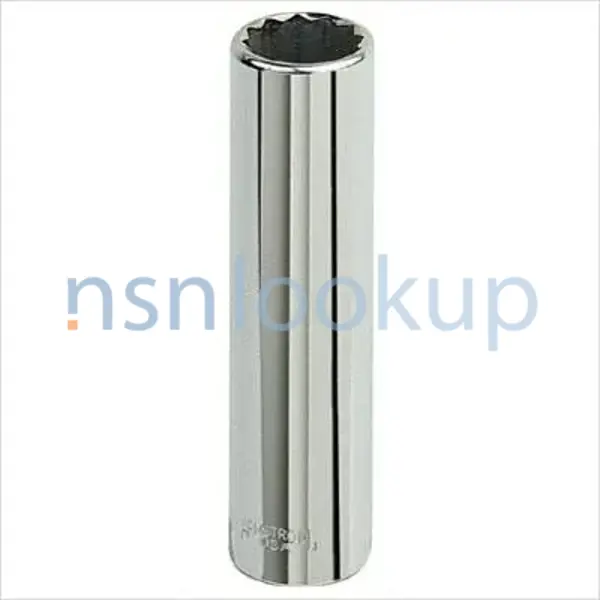

5120-01-617-6185 SOCKET,SOCKET WRENCH 5120016176185 016176185 4/6 — 5120-01-617-6185 Photo 4/6

5120-01-617-6185 SOCKET,SOCKET WRENCH 5120016176185 016176185 5/6 — 5120-01-617-6185 Photo 5/6

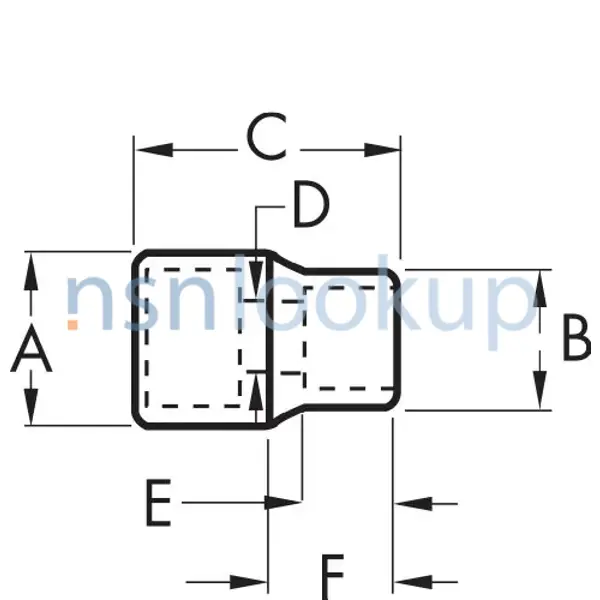

STYL Style 168 for 5120-01-617-6185 6/6 — NSN 5120-01-617-6185 (Identification) 6/6

Marketplace 5120-01-617-6185

Need Help?
Request a Quotation from participating marketplace vendors

5120-01-617-6185 RQST NE

Updated Every Day

5120-01-617-6185 RQST

Updated Every Day

5120-01-617-6185 RQST NE

Related Documents 5120-01-617-6185 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-617-6185 Socket Wrench Socket 5120016176185 016176185

AS954 AS954 TY1CL1STB 80781 46-10MM AS955 AS955 TY1CL1STC 39-310 456720019907 An item having an internal
Every Day 39-310 RQST NE Updated Every Day 46-10MM RQST NE Updated Every Day 5120-01-617-6185 RQST NE
A group of SOCKET, AS954 TY1CL1STB B107.5M https B107.5M CL1STB B107.5M TY1CL2 AS955 https//www.nsnlookup.com

https//www.nsnlookup.com
/fsg-47/fsc-4730/tr

4730-27-047-1803 Hose Clamp 4730270471803 270471803

to enable JavaScript in your web browser . 4730-27-047-1803Hose Clamp4730270471803 270471803 13C25-80781
to enable JavaScript in your web browser . 4730-27-047-1803Hose Clamp4730270471803 270471803 13C25-80781
to enable JavaScript in your web browser . 4730-27-047-1803Hose Clamp4730270471803 270471803 13C25-80781

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-349-1160 Socket Wrench Socket 5120013491160 013491160

B107.5M CL1STB AS955 B107.5M TY1CL2 An item having an AS955 B107.5M CL1STB AS955 B107.5M TY1CL2 An item
Socket Wrench Socket 5120016176185 016176185 AS954 TY1CL1STB STMMD5 AS955AS955 TY1CL1STC An item
having an internal drive at one end made to fit B107.5M CL1STB B107.5M TY1CL2 AS955 TY1CL1STC B107.5M

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-348-7281 Socket Wrench Socket 5120013487281 013487281

AS954 TY1CL1STB STMMD5 AS955 AS955 TY1CL1STC An item having an internal drive at one end made to fit
TY1CL1STC B107.5M A group of SOCKET, AS954 TY1CL1STB B107.5M https//www.nsnlookup.com /fsg-51/ AS955
TY1CL2 AS955 TY1CL1STC B107.5M A group of SOCKET, AS954 TY1CL1STB B107.5M https//www.nsnlookup.com https

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-348-9153 Socket Wrench Socket 5120013489153 013489153

AS954 TY1CL1STB AS955 AS955 TY1CL1STC An item having an internal drive at one end made to fit into the
AS955 TY1CL1STC B107.5M A group of SOCKET, AS954 TY1CL1STB B107.5M B107.5M https//www.nsnlookup.com
TY1CL1STB B107.5M https//www.nsnlookup.com /fsg-51/ AS955 TY1CL2 AS955 TY1CL1STC B107.5M A group of

Restrictions 5120-01-617-6185

5120-01-617-6185 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5120-01-617-6185

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5120-01-617-6185

US Army (A192)
Effective Date:: 1 Dec 2015
Supplementary Receivers:: AZ; AMC 0 AMSC 0 IMC Z IMCACTY CD

NASA (G751)
Effective Date:: 1 Dec 2015; AMC 0 AMSC 0

Hungary (WH01)
Effective Date:: 1 Mar 2013

Approved Sources 5120-01-617-6185

Part Number
Manufacturer
Status
AS954: 0U583 - Sae International (Active); Incomplete Reference; RNCC 3 RNVC 1 DAC 4
AS954 TY1CL1STB: 80244 - General Services Administration (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
80781: 636D0 - Apex Tool Group, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
46-10MM: 14846 - Wright Tool Company, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
AS955: 0U583 - Sae International (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
AS955 TY1CL1STC: 80244 - General Services Administration (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
39-310: 636D0 - Apex Tool Group, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
39-310: 03914 - Armstrong Bros Tool Co (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
AS955: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
456720019907: 0000V - Ncb Hungary (Honvedsegi Egyseges (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 5120-01-617-6185

Characteristic
Specifications
FIIG: A102A0
Material [MATT]: Steel Overall
Surface Treatment [SFTT]: Chromium Overall
Style Designator [STYL]: Internal-Internal
Overall Length [ABHP]: 81.2 Millimeters Nominal
Wrenching End Outside Diameter [AHMJ]: 14.5 Millimeters Nominal
Drive End Outside Diameter [AHMK]: 22.2 Millimeters Nominal
Wrenching End Opening Depth [AJAP]: 8.3 Millimeters Nominal
Wrenching Surface Size [AJBR]: 10.0 Millimeters Nominal Single End
Wrenching Surface Shape [CRWY]: 12 Point Single End Internal
Drive Surface Size [ATNC]: 0.500 Inches Nominal Single End
Drive End Shape [CTCT]: Square Single End Internal
Features Provided [CBBL]: Manual Tool

Management Data 5120-01-617-6185

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Jan 2023: General Services Administration (TG); EA; Subscribe
Apr 2020: Department of the Army (DA); EA; Subscribe

Army

Materiel Category and Inventory Manager:

E: General Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

NATO Stock Numbers Related to 5120-01-617-6185

5120-14-210-9852 5120-12-364-6803 5120-98-205-9462 5120-33-155-9422 5120-15-113-2845 5120-37-504-7952 5130-21-808-0702 5120-33-110-6240 5120-27-047-5375 5120-14-484-6515 5120-99-786-2481 5120-14-200-9336 5120-14-548-5093 5120-14-530-5337 5120-14-442-2003 5120-34-041-3160 5120-14-525-4363 5120-99-755-3201

Freight Information 5120-01-617-6185

5120-01-617-6185 has freight characteristics managed by Hungary.. 5120-01-617-6185 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
