5120-01-614-8784

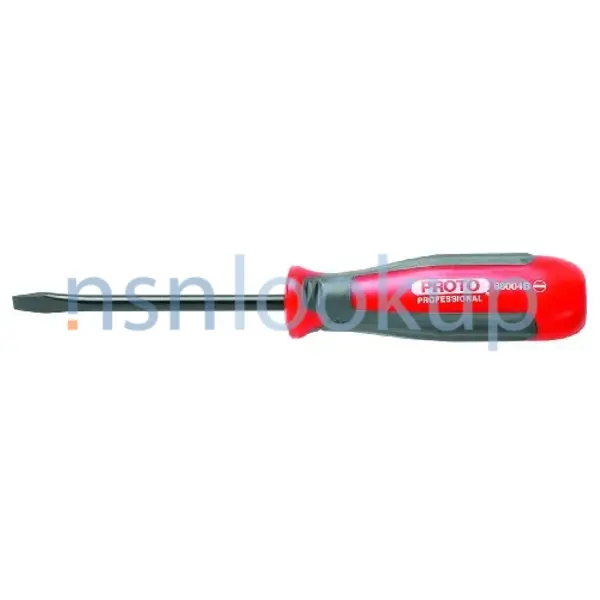

Flat Tip Screwdriver
5120016148784 016148784 J88203B 5HM25 88203B
A manual screwdriver having a single, nonremovable, flat tip blade. The blade has a flared or straight sided tip. For items having more than one blade, see SCREWDRIVER BIT SET AND HANDLE. Excludes SCREWDRIVER, JEWELER'S SWIVEL KNOB; SCREWDRIVER, RATCHET; and SCREWDRIVER, SPARK TESTING. View more Flat Tip Screwdriver
May 2023
7
Marketplace 5120-01-614-8784
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-614-8784 5+ Documents (More...)
Updated Every Day 88203B RQST NE Updated Every Day 5HM25 RQST NE Updated Every Day 5120-01-614-8784 RQST
NE Updated Every Day 5120-01-614-8784 RQST Updated Every Day 5120-01-614-8784 RQST NE Related Documents
Restrictions 5120-01-614-8784
5120-01-614-8784 is a Flat Tip Screwdriver that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-614-8784
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-614-8784
- Republic of Korea (ZH01)
- Effective Date:
- 1 Dec 2012
Approved Sources 5120-01-614-8784
- Part Number
- Manufacturer
- Status
- J88203B
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 5HM25
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 88203B
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-614-8784
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Q0
- Blade Length [AEAE]
- 3.000 Inches Nominal
- Blade Surface Treatment [AJBP]
- Oxide
- Features Provided [CBBL]
- Straight Tip Sides
- Handle Color [AHZY]
- Gray And Red
- Material [MATT]
- Plastic Handle
- Material [MATT]
- Steel Blade
- Shank Diameter [AAZE]
- 0.125 Inches Nominal
- Shank Shape [ASWL]
- Round
- Overall Length [ABHP]
- 6.375 Inches Nominal
- Special Features [FEAT]
- Soft Grip
- Tip Width [ASFX]
- 0.125 Inches Nominal
Similar Supply Items to 5120-01-614-8784
Freight Information 5120-01-614-8784
5120-01-614-8784 has freight characteristics managed by the Republic of Korea.. 5120-01-614-8784 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
