5120-01-609-0822
Mechanical Puller
5120016090822 016090822 J4038 3R661 4038
A puller manually operated by means of gearing, leverage, jack screw, slide hammer, physical impact, or any combination thereof. It includes items with a series of parts to give a different spread and/or reach. For items with additional parts which can be assembled into various different functional combinations, except spread and/or reach, see PULLER KIT, UNIVERSAL. Excludes hydraulic force actuated items. View more Mechanical Puller
May 2023
2
Marketplace 5120-01-609-0822
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5120-01-609-0822 5+ Documents (More...)

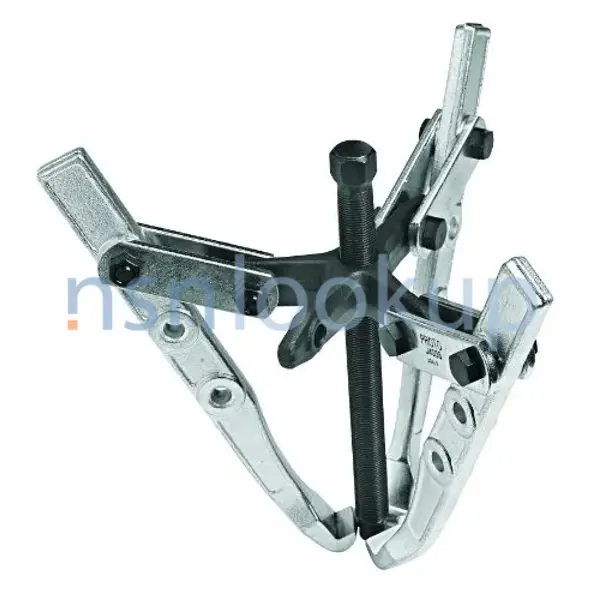

Photo 1/3 5120-01-609-0822 Photo 2/3 NSN 5120-01-609-0822 (Identification) 3/3 - - - 1.
4038 - Side Adjustable Top Fixture STK NE $2.60 Distributor Buy Now Updated Every Day J4038 RQST NE
Restrictions 5120-01-609-0822
5120-01-609-0822 is a Mechanical Puller that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-609-0822
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-609-0822
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jul 2012
Approved Sources 5120-01-609-0822
- Part Number
- Manufacturer
- Status
- J4038
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 3R661
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 4038
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-609-0822
- Characteristic
- Specifications
- FIIG
- Specifications
- T294-M
- Style Designator [STYL]
- Gear And Bearing, Single End Grip Three Jaw, External
- Reach Length [AHPM]
- 9.000 Inches Maximum
- Spread Range [BTDZ]
- 11.000 Inches Maximum
- Special Features [FEAT]
- 7 Ton Capacity; 11/16-18 Thread X 9 In. Lg Forcing Screw
Similar Supply Items to 5120-01-609-0822
Freight Information 5120-01-609-0822
5120-01-609-0822 has freight characteristics managed by the Republic of Korea.. 5120-01-609-0822 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
