5120-01-599-4519

Socket Wrench Attachment Universal Joint

5120015994519 015994519 AS4283 TY2CL1 80100 10-947 AS4283 A10-947 456720003702

A connection for socket wrenches and handles. Consists of an internal drive on one end and an external drive on the opposite end, of the same size, connected by a cross pin device to permit swivel up to 90 degrees (1.6 radians). View more Socket Wrench Attachment Universal Joint

Managed by United States

NSN Created on 28 Sep 2011

Data Last Changed
May 2023

NATO Update Count
19

NATO Data Quality

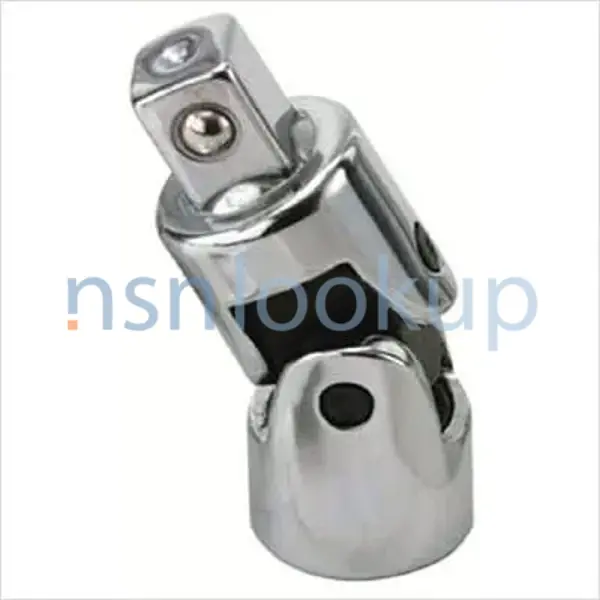

5120-01-599-4519 UNIVERSAL JOINT,SOCKET WRENCH ATTACHMENT 5120015994519 015994519 1/6 — 5120-01-599-4519 Photo 1/6

5120-01-599-4519 UNIVERSAL JOINT,SOCKET WRENCH ATTACHMENT 5120015994519 015994519 2/6 — 5120-01-599-4519 Photo 2/6

5120-01-599-4519 UNIVERSAL JOINT,SOCKET WRENCH ATTACHMENT 5120015994519 015994519 3/6 — 5120-01-599-4519 Photo 3/6

5120-01-599-4519 UNIVERSAL JOINT,SOCKET WRENCH ATTACHMENT 5120015994519 015994519 4/6 — 5120-01-599-4519 Photo 4/6

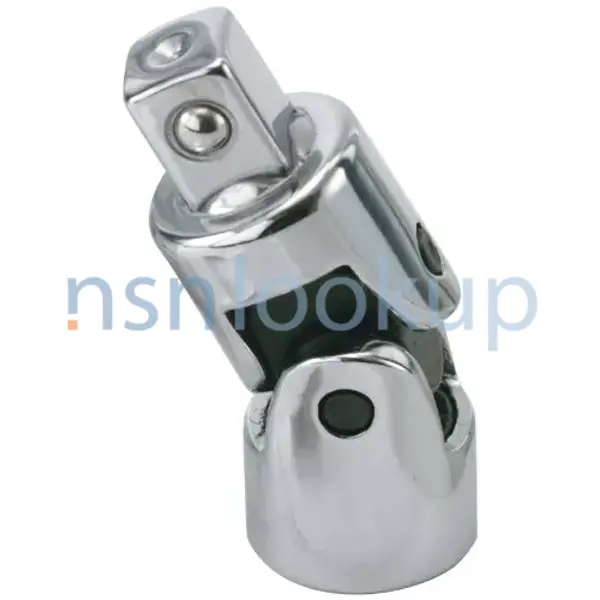

5120-01-599-4519 UNIVERSAL JOINT,SOCKET WRENCH ATTACHMENT 5120015994519 015994519 5/6 — 5120-01-599-4519 Photo 5/6

STYL Style 208 for 5120-01-599-4519 6/6 — NSN 5120-01-599-4519 (Identification) 6/6

Marketplace 5120-01-599-4519

Need Help?
Request a Quotation from participating marketplace vendors

FinditParts

80100 Pollak 80-100 - Ez Eld STK NE $202.93 Distributor Buy Now

5120-01-599-4519 RQST NE

Updated Every Day

5120-01-599-4519 RQST

Updated Every Day

5120-01-599-4519 RQST NE

Related Documents 5120-01-599-4519 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-599-4519 Socket Wrench Attachment Universal Joint

AS4283 TY2CL1 80100 10-947 AS4283 A10-947 456720003702 A connection for socket wrenches and handles.
Ez Eld STK NE $202.93 Distributor Buy Now Updated Every Day 80100 RQST NE Updated Every Day 10-947 RQST
/fsg-51/fsc-5120/us 5120-01-358-2754 Socket Wrench Attachment Universal Joint 45190 AS4283 TY2CL1 A /

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-358-2754 Socket Wrench Attachment Universal Joint

45190 AS4283 TY2CL1 A connection for socket wrenches and handles.
B107.10 TY2CL1 B107.10M TY2CL1 GGG-W-641 AS4283 TY2CL1 B107.10M B107.10 TY2CL1B107.10 B107.10M B107.10M
B107.10 TY2CL1 B107.10M TY2CL1 GGG-W-641 AS4283 TY2CL1 B107.10M B107.10 TY2CL1B107.10 B107.10M B107.10M

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-648-7935 Socket Wrench Attachment Universal Joint

AS4283 TY2CL1 J5670 A connection for socket wrenches and handles.
//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-335-1045 Socket Wrench Attachment Universal Joint AS4283
//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-430-9850 Socket Wrench Attachment Universal Joint AS4283

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-369-2036 Socket Wrench Attachment Universal Joint

47190 AS4283 TY2CL1 A connection for socket wrenches and handles.
/fsg-51/fsc-5120/us 5120-01-358-2754 Socket Wrench Attachment Universal Joint 45190 AS4283 TY2CL1 A /
/fsg-51/fsc-5120/us 5120-01-358-2754 Socket Wrench Attachment Universal Joint 45190 AS4283 TY2CL1 A /

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-430-9850 Socket Wrench Attachment Universal Joint

AS4283 TY2CL1 X3U A connection for socket wrenches and handles.
/fsg-51/fsc-5120/us 5120-01-358-2754 Socket Wrench Attachment Universal Joint 45190 AS4283 TY2CL1 A
/fsg-51/fsc-5120/us 5120-01-358-2754 Socket Wrench Attachment Universal Joint 45190 AS4283 TY2CL1 A /

Restrictions 5120-01-599-4519

5120-01-599-4519 is a Socket Wrench Attachment Universal Joint that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5120-01-599-4519

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5120-01-599-4519

US Army (A192)
Effective Date:: 1 Aug 2014
Supplementary Receivers:: AZBF; AMC 0 AMSC 0 IMC Z IMCACTY CD

NASA (G751)
Effective Date:: 1 Jun 2013; AMC 0 AMSC 0

US Marine Corps (MC14)
Effective Date:: 1 Jun 2013; AMC 0 AMSC 0 IMC Z IMCACTY PA

Hungary (WH01)
Effective Date:: 1 Sep 2011

Australia (ZA01)
Effective Date:: 1 Apr 2013

Portugal (ZP01)
Effective Date:: 1 Feb 2016

Approved Sources 5120-01-599-4519

Part Number
Manufacturer
Status
AS4283: 0U583 - Sae International (Active); Incomplete Reference; RNCC 3 RNVC 1 DAC 4
AS4283 TY2CL1: 80244 - General Services Administration (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
80100: 636D0 - Apex Tool Group, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
A10-947: Z19N0 - The Trustee For Henchman Unit Trust (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
10-947: 08292 - Easco Hand Tools Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
10-947: 03914 - Armstrong Bros Tool Co (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
AS4283: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
10-947: 636D0 - Apex Tool Group, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
A10-947: ZAE87 - Henchman Products Pty Ltd (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
456720003702: 0000V - Ncb Hungary (Honvedsegi Egyseges (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 5120-01-599-4519

Characteristic
Specifications
FIIG: A102A0
Drive End Shape [CTCT]: Square First End External
Drive Surface Size [ATNC]: 0.250 Inches Nominal Both Ends
Features Provided [CBBL]: Manual Tool
Material [MATT]: Steel Overall
Nondefinitive Spec/Std Data [ZZZT]: 2 Type And 1 Class
Outside Diameter [ABKV]: 0.590 Inches Maximum
Overall Length [ABHP]: 1.500 Inches Maximum
Specification/Standard Data [ZZZK]: 81343-Asme As4283 Professional/Industrial Association Standard
Style Designator [STYL]: External-Internal
Surface Treatment [SFTT]: Chromium Overall

Management Data 5120-01-599-4519

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Jan 2023: General Services Administration (TG); EA; Subscribe
Apr 2020: Department of the Navy (DN); EA; Subscribe

Army

Materiel Category and Inventory Manager:

E: General Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9Q

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

02

Operational Test:

: No Special Procedures

Physical Category:

1: Bin

NATO Stock Numbers Related to 5120-01-599-4519

5120-98-205-3805 5120-99-457-3155 5130-14-363-4644 5120-21-872-0433 5120-14-042-0688 5120-99-718-8440 5120-33-156-1122 5120-14-419-7280 5120-33-156-1242 5120-15-199-1538 5130-12-368-6771 5120-20-004-7656 5120-99-858-2265 5120-14-362-1550 5120-98-202-7882 5120-12-181-1321 5120-99-354-0119 5120-21-866-8843

Freight Information 5120-01-599-4519

5120-01-599-4519 has freight characteristics managed by Hungary.. 5120-01-599-4519 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
