5120-01-599-4029

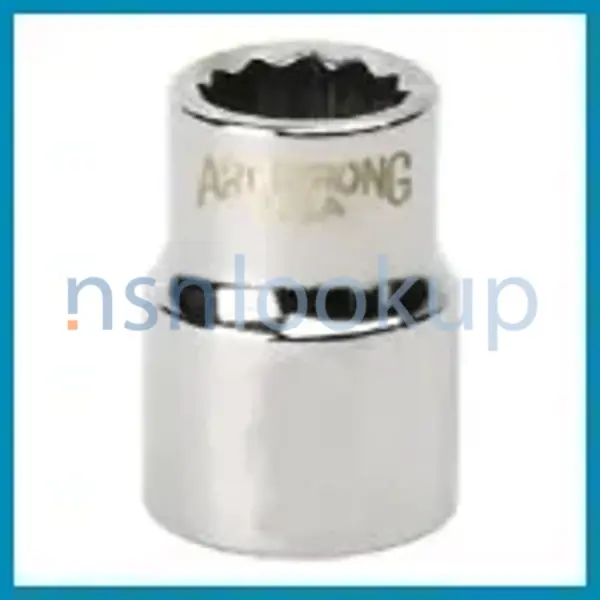

Socket Wrench Socket
5120015994029 015994029 AS955 AS955 TY1CL1STA 37-106 456720003207
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
May 2023
16
Marketplace 5120-01-599-4029
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-599-4029 5+ Documents (More...)
B107.5M B107.5M CL1STA B107.5M TY1CL1 AS955 TY1CL1STA An item having an internal drive at one end made
www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-430-2931 Socket Wrench Socket 5120014302931 014302931 AS955
RQST NE Updated /fsg-51/fsc-5120/us 5120-01-651-2947 Socket Wrench Socket 5120016512947 016512947 AS955
015994029 AS955 TY1CL1STA 37-106 456720003207 An item having an internal drive at one end made to fit
AS955 TY1CL1STA B107.5M An item having an internal drive at one end made to fit into the external drive
www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-045-8565 Socket Wrench Socket 5120010458565 010458565 AS955
B107.5M B107.5M CL1STA B107.5M TY1CL1 AS955 TY1CL1STA An item having an internal drive at one end made
SOCKET WRENCH 1 EA NS Request Quotation B107.5MTY1CL1 SOCKET,SOCKET WRENCH 1 EA NS Request Quotation AS955
RQST NE Updated /fsg-51/fsc-5120/us 5120-01-348-9245 Socket Wrench Socket 5120013489245 013489245 AS955
015994029 AS955 TY1CL1STA 37-106 456720003207 An item having an internal drive at one end made to fit
Restrictions 5120-01-599-4029
5120-01-599-4029 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-599-4029
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-599-4029
- US Army (A192)
- Effective Date:
- 1 Apr 2015
- Supplementary Receivers:
- AZ
- NASA (G751)
- Effective Date:
- 1 Jun 2013
- US Marine Corps (MC14)
- Effective Date:
- 1 Jun 2013
- Hungary (WH01)
- Effective Date:
- 1 Sep 2011
- Australia (ZA01)
- Effective Date:
- 1 Apr 2013
Approved Sources 5120-01-599-4029
- Part Number
- Manufacturer
- Status
- AS955
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS955 TY1CL1STA
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 37-106
- 636D0 - Apex Tool Group, Llc (Active)
- Secondary Buy
- Secondary Buy
- 37-106
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS955
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 456720003207
- 0000V - Ncb Hungary (Honvedsegi Egyseges (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 37-106
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-599-4029
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Internal-Internal
- Overall Length [ABHP]
- 22.3 Millimeters Nominal
- Wrenching End Outside Diameter [AHMJ]
- 9.2 Millimeters Nominal
- Drive End Outside Diameter [AHMK]
- 11.3 Millimeters Nominal
- Wrenching End Opening Depth [AJAP]
- 5.1 Millimeters Nominal
- Wrenching Surface Size [AJBR]
- 6.0 Millimeters Nominal Single End
- Wrenching Surface Shape [CRWY]
- 12 Point Single End Internal
- Drive Surface Size [ATNC]
- 0.250 Inches Nominal Single End
- Drive End Shape [CTCT]
- Square Single End Internal
- Features Provided [CBBL]
- Manual Tool
NATO Stock Numbers Related to 5120-01-599-4029
Freight Information 5120-01-599-4029
5120-01-599-4029 has freight characteristics managed by Hungary.. 5120-01-599-4029 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
