5120-01-598-3580

Combination Box And Open End Wrench

5120015983580 015983580 AS954 AS954 TY2CL4STC 81653 KTI41311 25-211 456720008109 AS954 TY2CL4STA

A nonadjustable wrench having a box wrenching feature on one end and an open end wrenching feature on the other end. Excludes WRENCH, BOX and WRENCH, OPEN END. View more Combination Box And Open End Wrench

Managed by United States

NSN Created on 25 Jul 2011

Data Last Changed
November 2023

NATO Update Count
15

NATO Data Quality

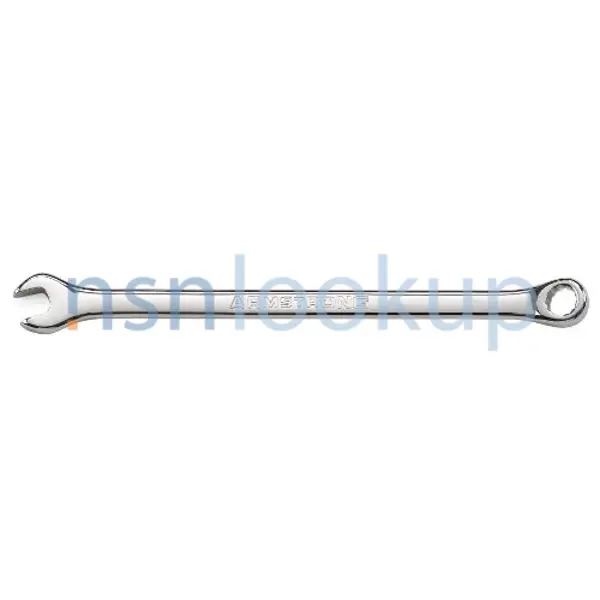

5120-01-598-3580 WRENCH,BOX AND OPEN END,COMBINATION 5120015983580 015983580 1/4 — 5120-01-598-3580 Photo 1/4

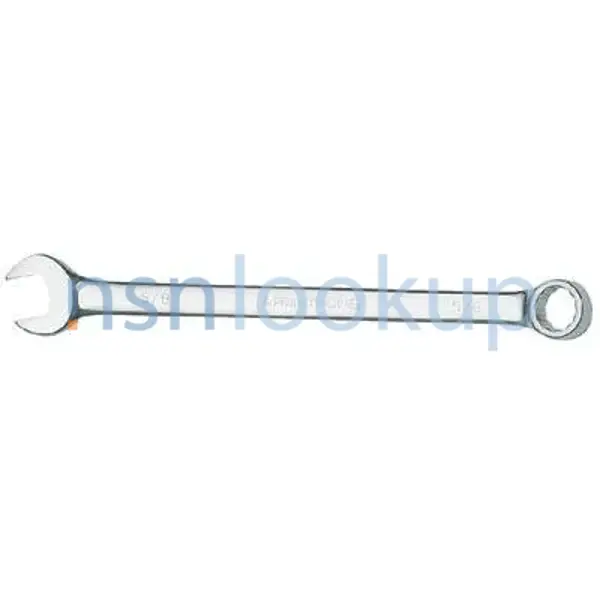

5120-01-598-3580 WRENCH,BOX AND OPEN END,COMBINATION 5120015983580 015983580 2/4 — 5120-01-598-3580 Photo 2/4

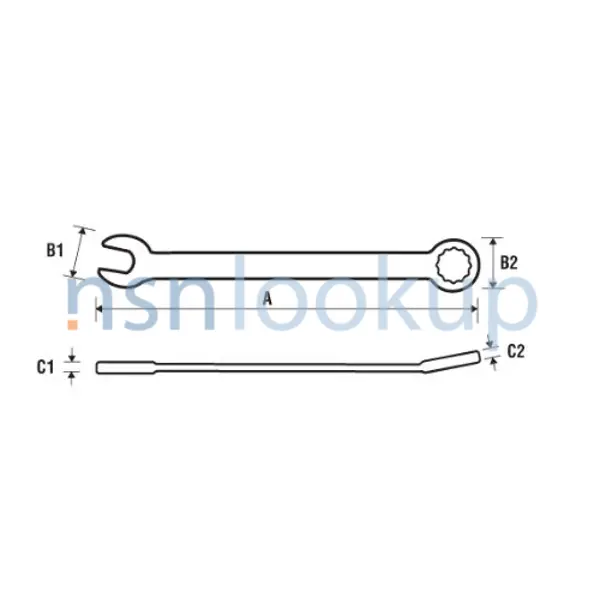

5120-01-598-3580 WRENCH,BOX AND OPEN END,COMBINATION 5120015983580 015983580 3/4 — 5120-01-598-3580 Photo 3/4

STYL Style 63 for 5120-01-598-3580 4/4 — NSN 5120-01-598-3580 (Identification) 4/4

Marketplace 5120-01-598-3580

Need Help?
Request a Quotation from participating marketplace vendors

5120-01-598-3580 RQST NE

Updated Every Day

5120-01-598-3580 RQST

Updated Every Day

5120-01-598-3580 RQST NE

Related Documents 5120-01-598-3580 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-598-3580 Combination Box And Open End Wrench,AS954

AS954 AS954 TY2CL4STC 81653 KTI41311 25-211 456720008109 AS954 TY2CL4STA A nonadjustable wrench having
-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA AS954 TY2CL4STA
-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA AS954 TY2CL4STA

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-600-8581 Combination Box And Open End Wrench,AS954

TY2CL4STA GGG-W-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA
TY2CL4STA GGG-W-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 AS954 TY2CL4STA GGG-W-636 AS954
TY1 1260 B107.6 AS954 TY2CL4STA AS954 TY2CL4STA GGG-W-636 AS954 TY2CL4STC STP https//www.nsnlookup.com

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-532-8207 Combination Box And Open End Box Wrench

AS954 TY2CL4STA GGG-W-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA
-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA AS954 TY2CL4STA
-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA AS954 TY2CL4STA

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-645-3129 Combination Box And Open End Wrench,AS954

TY1 1260 B107.6 AS954 TY2CL4STA AS954 TY2CL4STA GGG-W-636 AS954 TY2CL4STC STP https//www.nsnlookup.com
-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA AS954 TY2CL4STA
GGG-W-636 AS954 TY2CL4STC STP 1260 B107.100 63-160 B107.6 TY1 1260 B107.6 AS954 TY2CL4STA -636 AS954

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-645-2322 Combination Box And Open End Wrench,AS954

Restrictions 5120-01-598-3580

5120-01-598-3580 is a Combination Box And Open End Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5120-01-598-3580

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5120-01-598-3580

US Army (A192)
Effective Date:: 1 Oct 2014
Supplementary Receivers:: AZBF; AMC 0 AMSC 0 IMC Z IMCACTY CD

NASA (G751)
Effective Date:: 1 Oct 2014; AMC 0 AMSC 0

Hungary (WH01)
Effective Date:: 1 Jul 2011

Australia (ZA01)
Effective Date:: 1 Apr 2013

Approved Sources 5120-01-598-3580

Part Number
Manufacturer
Status
AS954: 0U583 - Sae International (Active); Incomplete Reference; RNCC 3 RNVC 1 DAC 4
AS954 TY2CL4STC: 80244 - General Services Administration (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
81653: 636D0 - Apex Tool Group, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
KTI41311: 0HS50 - K-Tool Corporation Of Michigan (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
25-211: 08292 - Easco Hand Tools Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
456720008109: 0000V - Ncb Hungary (Honvedsegi Egyseges (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
25-211: 636D0 - Apex Tool Group, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
25-211: 03914 - Armstrong Bros Tool Co (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
AS954 TY2CL4STA: 80244 - General Services Administration (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
AS954: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4

Datasheet 5120-01-598-3580

Characteristic
Specifications
FIIG: A527Y0
Features Provided [CBBL]: Full Polish
Head Angle [CRCS]: 15.0 Degrees Nominal
Material [MATT]: Steel Overall
Nondefinitive Spec/Std Data [ZZZT]: 2 Type And 4 Class And A Style
Overall Length [ABHP]: 5.750 Inches Nominal
Wrenching End Offset Angle [CSPX]: 15.0 Degrees Nominal
Wrenching Surface Shape [CRWY]: 12 Point Second End Internal
Wrenching Surface Shape [CRWY]: Oval First End Internal
Wrenching Surface Size [AJBR]: 0.3438 Inches Nominal Both Ends
Specification/Standard Data [ZZZK]: 81343-Sae As954 Professional/Industrial Association Standard
Style Designator [STYL]: Offset
Surface Treatment [SFTT]: Chromium Overall

Management Data 5120-01-598-3580

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Jan 2023: General Services Administration (TG); EA; Subscribe
Jul 2021: Department of the Navy (DN); EA; Subscribe
Apr 2020: Department of the Army (DA); EA; Subscribe

Army

Materiel Category and Inventory Manager:

E: General Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9Q

Similar Supply Items to 5120-01-598-3580

Freight Information 5120-01-598-3580

5120-01-598-3580 has freight characteristics managed by Hungary.. 5120-01-598-3580 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
