5120-01-598-3105

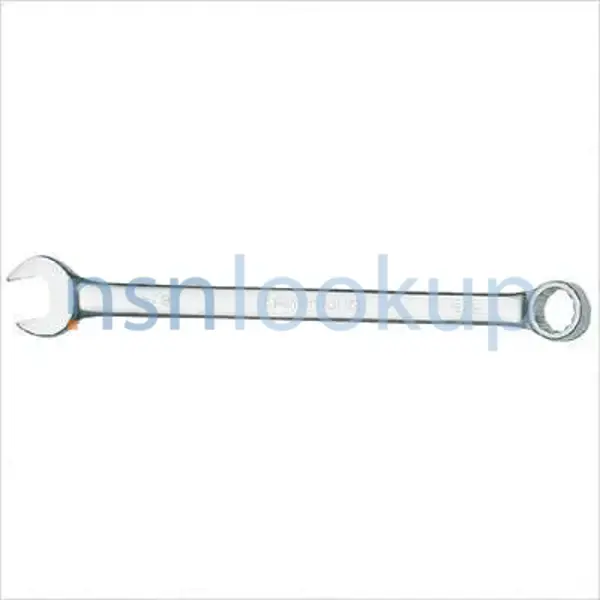

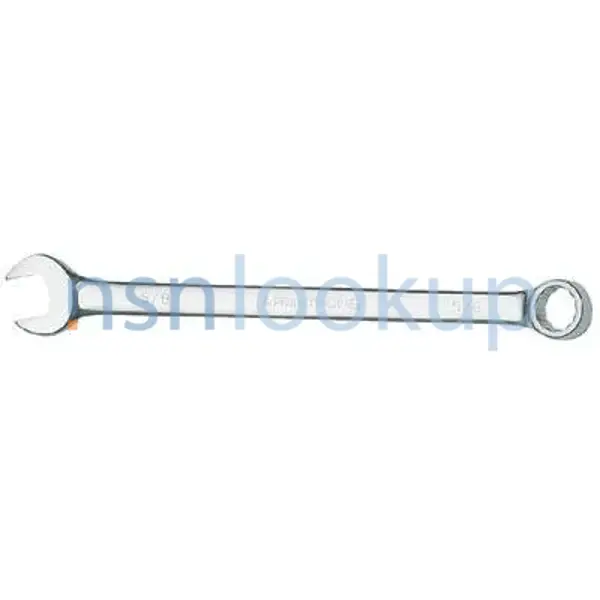

Combination Box And Open End Wrench
5120015983105 015983105 AS955 AS955 TY3CL1STC 52-211 456720010309
A nonadjustable wrench having a box wrenching feature on one end and an open end wrenching feature on the other end. Excludes WRENCH, BOX and WRENCH, OPEN END. View more Combination Box And Open End Wrench
May 2023
14
Marketplace 5120-01-598-3105
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-598-3105 5+ Documents (More...)
Combination Box And Open End Wrench,AS955 AS955AS955 TY3CL1STC52 AS955 TY3CL1STC J1232MASD 1232MASD
AS955 TY3CL1STC 11-10MM A nonadjustable wrench having a box wrenching feature on one end and an open
TY3CL1STC J1232MASD 1232MASD A nonadjustable wrench having a box wrenching feature on one end AS955
TY3CL1STC11-11MM A nonadjustable wrench having a box wrenching feature on one end and an open AS955
TY3CL1STC 11-17MM A nonadjustable wrench having a box wrenching feature on one end and an open AS955
AS955 TY3CL1STC J1224M 1224M A nonadjustable wrench having a box wrenching feature on one end and an
Combination Box And Open End Wrench,AS955 AS955 TY3CL1STC 52-211 456720010309 A nonadjustable wrench
AS955 TY3CL1STC J1224M 1224M A nonadjustable wrench having a box wrenching feature on one end and an
AS955 WRENCH,BOX AND OPEN END,COMBINATION 1 EA NS Request Quotation Subscribe to View Vendor Details.
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-348-6839 Combination Box And Open End Wrench,AS955
Restrictions 5120-01-598-3105
5120-01-598-3105 is a Combination Box And Open End Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-598-3105
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-598-3105
- US Army (A192)
- Effective Date:
- 1 Apr 2015
- Supplementary Receivers:
- AZBF
- NASA (G751)
- Effective Date:
- 1 Jun 2013
- US Marine Corps (MC14)
- Effective Date:
- 1 Jun 2013
- Hungary (WH01)
- Effective Date:
- 1 Jul 2011
- Australia (ZA01)
- Effective Date:
- 1 Apr 2013
Approved Sources 5120-01-598-3105
- Part Number
- Manufacturer
- Status
- AS955
- Manufacturer
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- 52-211
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- AS955 TY3CL1STC
- 80244 - General Services Administration (Active)
- Secondary Buy
- Secondary Buy
- 52-211
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 456720010309
- 0000V - Ncb Hungary (Honvedsegi Egyseges (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 52-211
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS955
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-598-3105
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Features Provided [CBBL]
- Full Polish
- Head Angle [CRCS]
- 15.0 Degrees Nominal
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 3 Type And 1 Class And C Style
- Overall Length [ABHP]
- 160.0 Millimeters Minimum And 187.0 Millimeters Maximum
- Wrenching Surface Size [AJBR]
- 11.0 Millimeters Nominal Both Ends
- Wrenching End Offset Angle [CSPX]
- 15.0 Degrees Nominal
- Wrenching Surface Shape [CRWY]
- 12 Point Second End Internal
- Wrenching Surface Shape [CRWY]
- Oval First End Internal
- Specification/Standard Data [ZZZK]
- 81343-Sae As955 Professional/Industrial Association Standard
- Style Designator [STYL]
- Offset
- Surface Treatment [SFTT]
- Chromium Overall
NATO Stock Numbers Related to 5120-01-598-3105
Freight Information 5120-01-598-3105
5120-01-598-3105 has freight characteristics managed by Hungary.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-598-3105 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-598-3105 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-598-3105 is not classified as a special type of cargo when transported by water. 5120-01-598-3105 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
