5120-01-586-2252

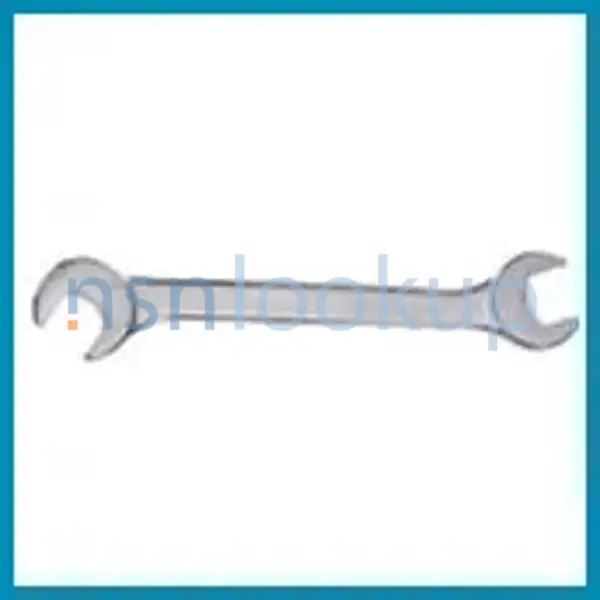

Open End Wrench
5120015862252 015862252 J3120 1Q428 3120
A nonadjustable wrench having an open end wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; WRENCH, LINEMAN'S; and WRENCH, BOX AND OPEN END, COMBINATION. View more Open End Wrench
May 2023
11
Marketplace 5120-01-586-2252
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5120-01-586-2252 2+ Documents (More...)
Request a Quotation from participating marketplace vendors Request FinditParts 3120 Jj Keller 3120 -
RQST NE Updated Every Day 3120 RQST NE Updated Every Day 1Q428 RQST NE Updated Every Day 5120-01-586
Restrictions 5120-01-586-2252
5120-01-586-2252 is a Open End Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-586-2252
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-586-2252
- Canada (ZC01)
- Effective Date:
- 1 Nov 2014
- France (ZF01)
- Effective Date:
- 1 Oct 2010
- Turkey (ZW01)
- Effective Date:
- 1 Jun 2010
Approved Sources 5120-01-586-2252
- Part Number
- Manufacturer
- Status
- J3120
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 1Q428
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- J3120
- Z19N0 - The Trustee For Henchman Unit Trust (Active)
- Secondary Buy
- Secondary Buy
- 3120
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- J3120
- ZAE87 - Henchman Products Pty Ltd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-586-2252
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Double Head
- Overall Length [ABHP]
- 3.250 Inches Nominal
- Large End Head Thickness [AJAU]
- 0.234 Inches Nominal
- Small End Head Thickness [AJAV]
- 0.234 Inches Nominal
- Small End Head Angle [CTHK]
- 15.0 Degrees Nominal
- Large End Head Angle [CWGT]
- 60.0 Degrees Nominal
- Wrenching Surface Size [AJBR]
- 0.625 Inches Nominal Both Ends
- Wrenching Surface Shape [CRWY]
- Oval Both Ends Internal
- Features Provided [CBBL]
- Full Polish
Similar Supply Items to 5120-01-586-2252
Freight Information 5120-01-586-2252
5120-01-586-2252 has freight characteristics managed by Turkey.. 5120-01-586-2252 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
