5120-01-586-2232

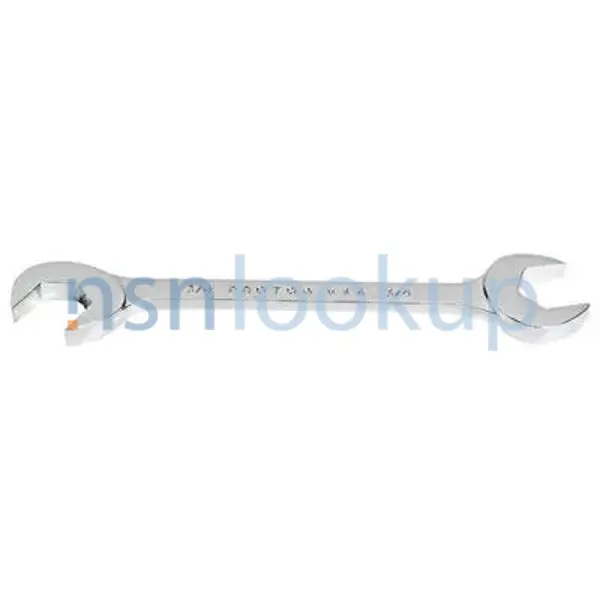

Open End Wrench
5120015862232 015862232 J3112 1Q416 3112
A nonadjustable wrench having an open end wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; WRENCH, LINEMAN'S; and WRENCH, BOX AND OPEN END, COMBINATION. View more Open End Wrench
May 2023
10
Marketplace 5120-01-586-2232
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-586-2232 5+ Documents (More...)
Photo 1/4 5120-01-586-2232 Photo 2/4 5120-01-586-2232 Photo 3/4 NSN 5120-01-586-2232 (Identification
Every Day 3112 RQST NE Updated Every Day 1Q416 RQST NE Updated Every Day 5120-01-586-2232 RQST NE Updated
Open End Wrench 5120015862232 015862232 Test Stand Electro 4920661382658661382658 enable JavaScript
/www.nsnlookup.com /fsg-49/fsc-4920/au 4920-66-138 -2658 Test Stand Electro 4920661382658661382658 J3112
/www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-811-8855 Nonmetallic Grommet 5325008118855008118855 J3112
$1 a day Upgrade your Account Upgrade 5325-00-811 -8855Nonmetallic Grommet5325008118855 008118855 J3112
/www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-004-1600 Nonmetallic Grommet 5325000041600000041600 J3112
138-2658 Test Stand Electro 4920661382658 661382658 8855Nonmetallic Grommet5325008118855 008118855 J3112
-38-2 J-3112-2-2 J3112-6-2 An item of any peripheral shape having flanges or groove(s) on its outer perimeter
J-3112-2-2 GROMMET,NONMETALLIC 11 EA NS Request Quotation FedMall Updated Every 15 Minutes 5325-00-631
Restrictions 5120-01-586-2232
5120-01-586-2232 is a Open End Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-586-2232
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-586-2232
- Canada (ZC01)
- Effective Date:
- 1 Nov 2014
- Turkey (ZW01)
- Effective Date:
- 1 Jun 2010
Approved Sources 5120-01-586-2232
- Part Number
- Manufacturer
- Status
- J3112
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 1Q416
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- J3112
- Z19N0 - The Trustee For Henchman Unit Trust (Active)
- Secondary Buy
- Secondary Buy
- 3112
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- J3112
- ZAE87 - Henchman Products Pty Ltd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-586-2232
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Double Head
- Overall Length [ABHP]
- 3.250 Inches Nominal
- Large End Head Thickness [AJAU]
- 0.203 Inches Nominal
- Small End Head Thickness [AJAV]
- 0.203 Inches Nominal
- Small End Head Angle [CTHK]
- 15.0 Degrees Nominal
- Large End Head Angle [CWGT]
- 60.0 Degrees Nominal
- Wrenching Surface Size [AJBR]
- 0.375 Inches Nominal Both Ends
- Wrenching Surface Shape [CRWY]
- Oval Both Ends Internal
- Features Provided [CBBL]
- Full Polish
Similar Supply Items to 5120-01-586-2232
Freight Information 5120-01-586-2232
5120-01-586-2232 has freight characteristics managed by Turkey.. 5120-01-586-2232 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
