5120-01-583-6035

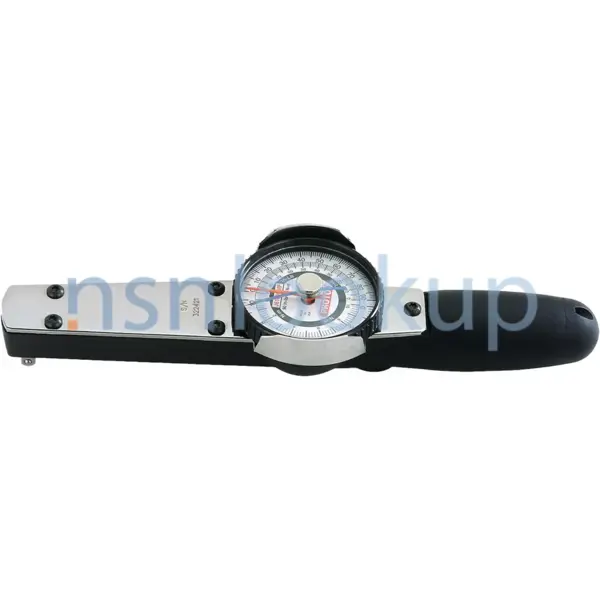

Torque Wrench
5120015836035 015836035 J6169NMF 6169NMF 1ARR8
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
September 2025
7
Marketplace 5120-01-583-6035
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-583-6035 5+ Documents (More...)
Updated Every Day 6169NMF RQST NE Updated Every Day 1ARR8 RQST NE Updated Every Day 5120-01-583-6035
Updated Every Day 6169NMF RQST NE Updated Every Day 1ARR8 RQST NE Updated Every Day 5120-01-583-6035
Torque Wrench 5120015836035 015836035 8475-14-209-7409 5120-01-561-4915 5120-01-583-6035 https/
99992260037752260037759999-22-600-3775 is a Torque Wrench Similar Supply Items to 9999-22-600-3775 5120-01-561-4915 5120-01-583-6035
Torque Wrench 5120015836035 015836035 1ARR8 RQST NE Updated Every Day 5120-01-583-6035 https//www.nsnlookup.com
99999961770559961770559999-99-617-7055 is a Torque Wrench Similar Supply Items to 9999-99-617-7055 5120-01-561-4915 5120-01-583-6035
Torque Wrench 5120015836035 015836035 9999-99-617-7055 5120-01-561-4915 5120-01-583-6035 https/
84751420974091420974098475-14-209-7409 is a Torque Wrench Similar Supply Items to 8475-14-209-7409 5120-01-561-4915 5120-01-583-6035
Restrictions 5120-01-583-6035
5120-01-583-6035 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-583-6035
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-583-6035
- France (ZF01)
- Effective Date:
- 1 Mar 2010
Approved Sources 5120-01-583-6035
- Part Number
- Manufacturer
- Status
- J6169NMF
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 6169NMF
- 1CV05 - The Stanley Works (Active)
- Secondary Buy
- Secondary Buy
- 1ARR8
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5120-01-583-6035
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.250 Inches Nominal Single End
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 10.000 Inches Nominal
- Special Features [FEAT]
- Memory Indicator; Dual Scale; 1 In-Lb Graduations
- Torque Scale Graduation [AJCH]
- 0.20 Meter-Newton
- Torque Signal Method [AJDR]
- Dial Indicator
- Torque Capacity [AJCG]
- 0.0 Meter-Newton Minimum And 10.0 Meter-Newton Maximum And 0.0 Inch-Pounds Minimum And 90.0 Inch-Pounds Maximum
- Torque Indicating Mechanism [AJCF]
- Dial
- Style Designator [STYL]
- Rigid Frame End Drive
- Surface Treatment [SFTT]
- Chromium Overall
Similar Supply Items to 5120-01-583-6035
Freight Information 5120-01-583-6035
5120-01-583-6035 has freight characteristics managed by France.. 5120-01-583-6035 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
