5120-01-583-2231
Hand Hammer
5120015832231 015832231 A-A-59854 X3-3-0102 BD500010
A tool with a striking face on one or both ends of a metallic weighted head fixed crosswise to a handle. It is used to strike and/or drive objects, or beat malleable materials. For items stocked without FACE, HAMMER, INSERTED, see HOLDER, INSERTED HAMMER FACE. Excludes DRIVER, COOPER'S and mechanical hammers. See also MALLET (as modified). View more Hand Hammer
January 2023
2
Marketplace 5120-01-583-2231
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-583-2231 5+ Documents (More...)
Updated Every 15 Minutes 5120-01-583-2231 BUY NE FedMall Updated Every Day 5120-01-583-2231 RQST NE Updated
Every Day 5120-01-583-2231 RQST Updated Every Day 5120-01-583-2231 RQST NE Related Documents 5120-01
Hand Hammer 5120015832231 015832231 5120-01-583-2231 RQST NE Related Documents 5120-01 https//www.nsnlookup.com
Equipment Set 8465016046077 6077 Climber's Equipment Set 8465016046077 https https Features [SUPP]5120-01-583-2231
Hand Hammer 5120015832231 015832231 Equipment Set 8465016046077 -01-583-2231 015832231 https//www.nsnlookup.com
Extender 1 Ea; 7610-01-Nsh-0004 Visual User's Guide, Sim Kit 1 EaSupplementary Features [SUPP]5120-01-583-2231
Restrictions 5120-01-583-2231
5120-01-583-2231 is a Hand Hammer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-583-2231
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-583-2231
- US Army (A192)
- Effective Date:
- 1 Mar 2010
- NASA (G751)
- Effective Date:
- 1 Mar 2010
- US Marine Corps (MC14)
- Effective Date:
- 1 Jul 2010
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2014
- Supplementary Collaborators:
- GG
Approved Sources 5120-01-583-2231
- Part Number
- Manufacturer
- Status
- X3-3-0102
- Manufacturer
- 81337 - W1d1 Natick Soldier Center (Active)
- Primary Buy
- Primary Buy
- A-A-59854
- 58536 - Federal Commercial Item Description (Active)
- Incomplete Standard
- Incomplete Standard
- BD500010
- 0SZC3 - Black Diamond Equipment, Ltd. Inc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5120-01-583-2231
- Characteristic
- Specifications
- FIIG
- Specifications
- A526S0
- Face Diameter [ARGG]
- 1.130 Inches Nominal
- Handle Length [AASN]
- 10.420 Inches Nominal
- Handle Material [CYAS]
- Wood
- Head Length [AASV]
- 4.830 Inches Nominal
- Head Material [CYNE]
- Steel
- Head Weight [AHRU]
- 18.000 Ounces
- Overall Length [ABHP]
- 11.620 Inches Nominal
- Special Features [FEAT]
- Oiled Hickory Handle For Vibration Dampening And Excellent Grip; Pick Is Drooped For Pin Leverage And Has A Biner Hole For Head And Pin Removal; Includes Replaceable Leash

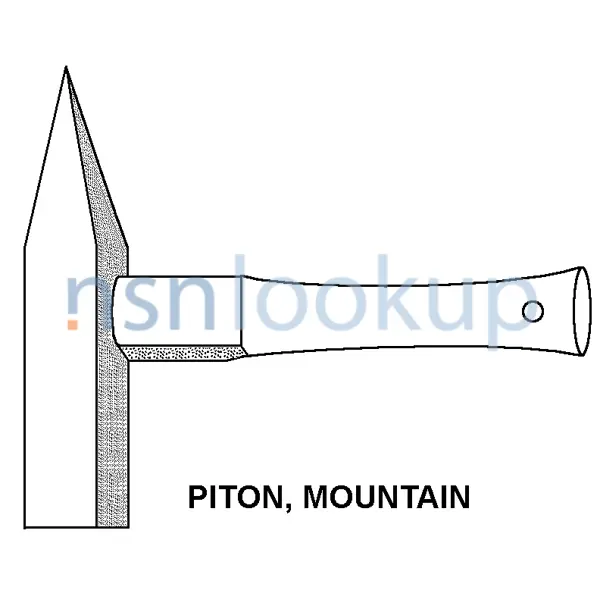

- Style Designator [STYL]
- Piton, Mountain
Management Data 5120-01-583-2231
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5120-01-583-2231
Freight Information 5120-01-583-2231
5120-01-583-2231 has freight characteristics.. 5120-01-583-2231 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
