5120-01-580-9773

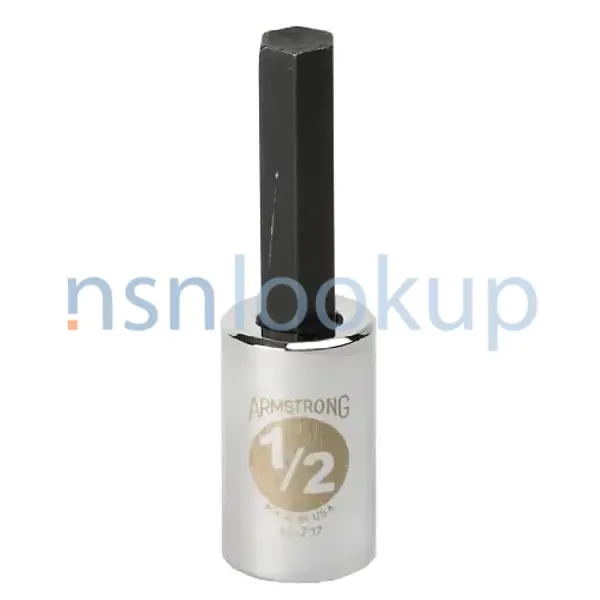

Socket Wrench Screwdriver Attachment
5120015809773 015809773 80654 31000-214 12-717 A12-717 456720014906
An attachment designed to fit over the square external drive end of a HANDLE, SOCKET WRENCH; WRENCH, TORQUE; and the like consisting of one or two-piece configuration having a screw driving tip on one end. Excludes BIT, SCREWDRIVER. View more Socket Wrench Screwdriver Attachment
Managed by United States
NSN Created on 2 Jan 2010
Data Last Changed
May 2023
May 2023
NATO Update Count
19
19
NATO Data Quality
Marketplace 5120-01-580-9773
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-580-9773 5+ Documents (More...)
80654 31000-214 12-717 A12-717 456720014906 An attachment designed to fit over the square external drive
Photo 1/3 5120-01-580-9773 Photo 2/3 NSN 5120-01-580-9773 (Identification) 3/3 - - - 1.
Updated Every Day 12-717 RQST NE Updated Every Day 5120-01-580-9773 RQST NE Updated Every Day 5120-01
Photo 1/3 5120-01-580-9773 Photo 2/3 NSN 5120-01-580-9773 (Identification) 3/3 - - - 1.
Updated Every Day 12-717 RQST NE Updated Every Day 5120-01-580-9773 RQST NE Updated Every Day 5120-01
to enable JavaScript in your web browser . 5315-27-006-2880Hollow Pin5315270062880 270062880 71A00-80654
Socket Wrench Screwdriver Attachment,80654 Definitive Standard RNCC 2 RNVC 2 DAC 3 1120-80654 C0418
to enable JavaScript in your web browser . 5315-27-006-2880Hollow Pin5315270062880 270062880 71A00-80654
Socket Wrench Screwdriver Attachment,80654 Definitive Standard RNCC 2 RNVC 2 DAC 3 1120-80654 C0418
to enable JavaScript in your web browser . 5315-27-006-2880Hollow Pin5315270062880 270062880 71A00-80654
C0418 C2311 - Baainbw Benutzungsrechte An (Active) Definitive Standard RNCC 2 RNVC 2 DAC 3 1120-80654
Socket Wrench Screwdriver Attachment,80654 71A00-80654 Socket Wrench Screwdriver Attachment,80654
Screwdriver Attachment,80654 Anti-Glare Screen https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-
Socket Wrench Screwdriver Attachment,80654 71A00-80654 Socket Wrench Screwdriver Attachment,80654
Screwdriver Attachment,80654 Anti-Glare Screen https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-
https//www.nsnlookup.com
/fsg-49/fsc-4910/us
/fsg-49/fsc-4910/us
4910-01-239-8412 Stand Assembly 4910012398412 012398412
for $1 a day Upgrade your Account Upgrade 4910-01-239-8412Stand Assembly4910012398412 012398412 5-80654
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-219-3341 Dust And Moisture Seal Protective Cap,80654
006-2880 Part NumberManufacturerStatus71A00-80654 https//www.nsnlookup.com /fsg-49/fsc-4910/us 4910-
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-219-3341 Dust And Moisture Seal Protective Cap,80654
006-2880 Part NumberManufacturerStatus71A00-80654 https//www.nsnlookup.com /fsg-49/fsc-4910/us 4910-
616-5620 5120-01-399-9776 5120-01-399-9779 5120-01-581-3110 5120-01-367-3565 5120-01-367-3549 5120-01-580-9773
Restrictions 5120-01-580-9773
5120-01-580-9773 is a Socket Wrench Screwdriver Attachment that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-580-9773
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-580-9773
- US Army (A192)
- Effective Date:
- 1 Oct 2014
- Supplementary Receivers:
- AZBF
- NASA (G751)
- Effective Date:
- 1 Jun 2013
- US Marine Corps (MC14)
- Effective Date:
- 1 Jun 2013
- Hungary (WH01)
- Effective Date:
- 1 Aug 2011
- Australia (ZA01)
- Effective Date:
- 1 Apr 2013
- Denmark (ZS01)
- Effective Date:
- 1 Jan 2010
Approved Sources 5120-01-580-9773
- Part Number
- Manufacturer
- Status
- 80654
- Manufacturer
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- A12-717
- Z19N0 - The Trustee For Henchman Unit Trust (Active)
- Secondary Buy
- Secondary Buy
- 31000-214
- 30003 - Naval Air Systems Command Managed (Active)
- Secondary Buy
- Secondary Buy
- 12-717
- 636D0 - Apex Tool Group, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 12-717
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 12-717
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- A12-717
- ZAE87 - Henchman Products Pty Ltd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 456720014906
- 0000V - Ncb Hungary (Honvedsegi Egyseges (Active)
- NATO Reference
- NATO Reference

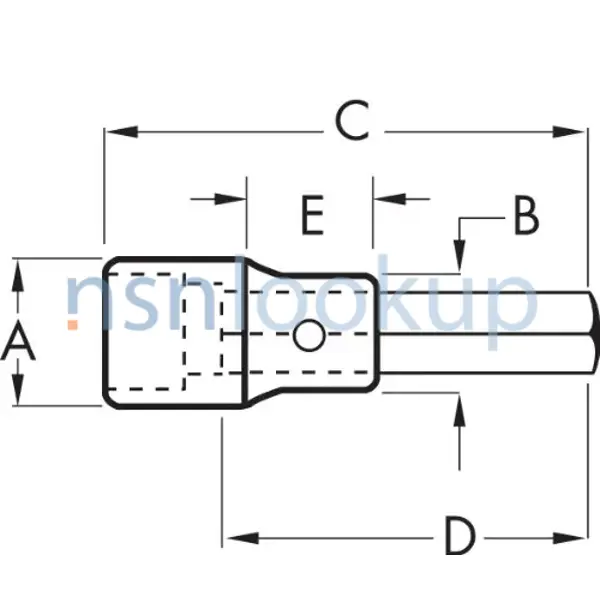

Datasheet 5120-01-580-9773
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Blade Length [AEAE]
- 2.625 Inches Nominal
- Features Provided [CBBL]
- Manual Tool
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 3.710 Inches Nominal
- Wrenching Surface Shape [CRWY]
- Hexagon Single End Internal
- Wrenching Surface Size [AJBR]
- 0.500 Inches Nominal Single End
- Style Designator [STYL]
- Hexagon
- Surface Treatment [SFTT]
- Oxide Bit
- Surface Treatment [SFTT]
- Chromium Drive Surface
Management Data 5120-01-580-9773
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 5120-01-580-9773
Freight Information 5120-01-580-9773
5120-01-580-9773 has freight characteristics.. 5120-01-580-9773 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
