5120-01-579-0944

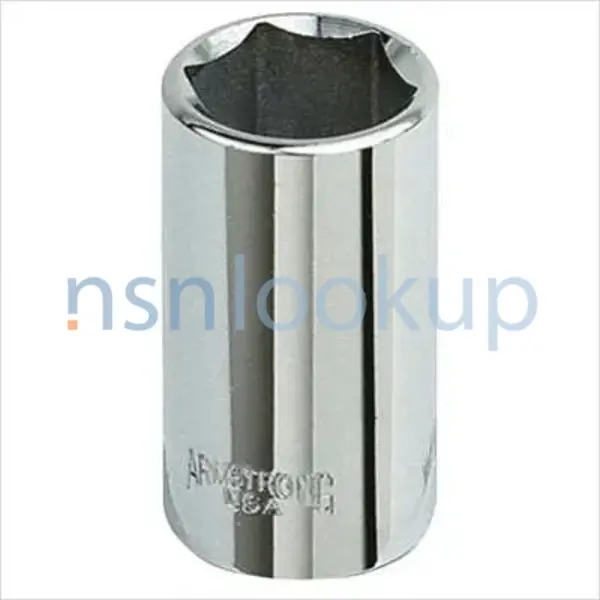

Socket Wrench Socket
5120015790944 015790944 39-032
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
May 2023
5
Marketplace 5120-01-579-0944
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-579-0944 5+ Documents (More...)
SOCKET,SOCKET WRENCH 10 EA NS Request Quotation Updated Every Day 39-032 RQST NE Updated Every Day 5120
-01-579-0944 RQST NE Updated Every Day 5120-01-579-0944 RQST Updated Every Day 5120-01-579-0944 RQST
Restrictions 5120-01-579-0944
5120-01-579-0944 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-579-0944
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-579-0944
- Denmark (ZS01)
- Effective Date:
- 1 Oct 2009
Approved Sources 5120-01-579-0944
- Part Number
- Manufacturer
- Status
- 39-032
- Manufacturer
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- 39-032
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 39-032
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-579-0944
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Internal-Internal
- Overall Length [ABHP]
- 50.8 Millimeters Nominal
- Wrenching End Outside Diameter [AHMJ]
- 42.9 Millimeters Nominal
- Drive End Outside Diameter [AHMK]
- 42.9 Millimeters Nominal
- Wrenching End Opening Depth [AJAP]
- 21.1 Millimeters Nominal
- Wrenching Surface Size [AJBR]
- 32.0 Millimeters Nominal Single End
- Wrenching Surface Shape [CRWY]
- 6 Point Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Drive End Shape [CTCT]
- Square Single End Internal
- Features Provided [CBBL]
- Manual Tool
Similar Supply Items to 5120-01-579-0944
Freight Information 5120-01-579-0944
5120-01-579-0944 has freight characteristics.. 5120-01-579-0944 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
