5120-01-563-3617

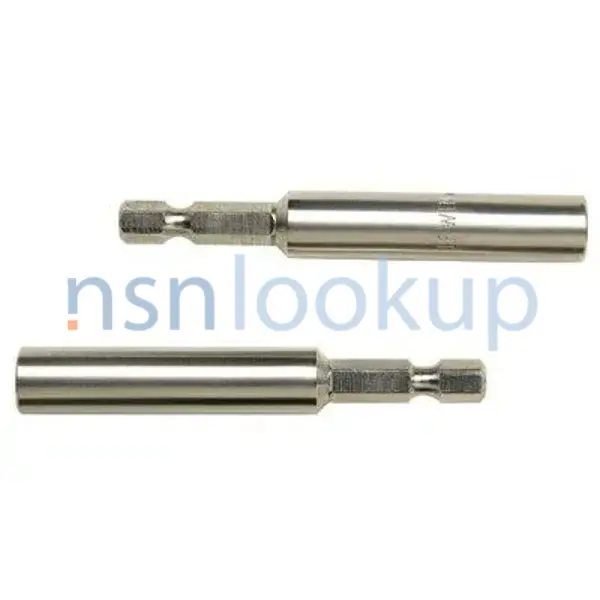

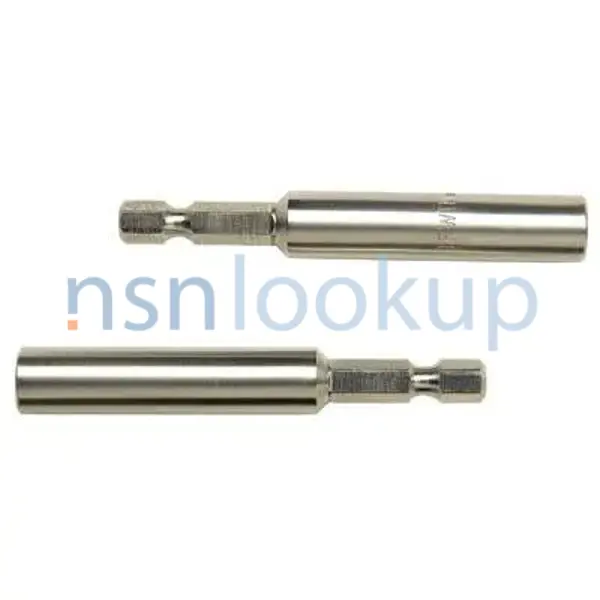

Screwdriver Bit Holder
5120015633617 015633617 93714
An attachment with a socket end for accepting male hexagon shank insert bits and a drive end for adapting to a portable power or hand tool. View more Screwdriver Bit Holder
May 2023
5
Marketplace 5120-01-563-3617
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-563-3617 5+ Documents (More...)
Updated Every Day 5120-01-563-3617 RQST NE Related Documents 5120-01-563-3617 5+ Documents ( More...
Updated Every Day 5120-01-563-3617 RQST NE Related Documents 5120-01-563-3617 5+ Documents ( More...
JavaScript in your web browser . 5985-99-337-6033Antenna Element5985993376033 993376033BA93714/004 93714
Screwdriver Bit Holder 5120015633617,93714 RQST NE Updated Every Day 5120-01-563-3617 RQST https
COVER,PROTECTION 3 EA NS Request Quotation Subscribe to View Vendor Details... 93714 COVER,PROTECTION
2 EA NS Request Quotation Subscribe to View Vendor Details... 93714 COVER,PROTECTION 14 EA NS Request
your Account Upgrade 7530-01-193-7449Recording Instrument Chart7530011937449 011937449P0933714-001 P-93714
Screwdriver Bit Holder 5120015633617,93714 Details... 93714 COVER,PROTECTION 14 EA NS Request https
COVER,PROTECTION 3 EA NS Request Quotation Subscribe to View Vendor Details... 93714 COVER,PROTECTION
$1 a day Upgrade your Account Upgrade 5120-01-563-3617Screwdriver Bit Holder5120015633617 015633617
Restrictions 5120-01-563-3617
5120-01-563-3617 is a Screwdriver Bit Holder that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-563-3617
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-563-3617
- NASA (G751)
- Effective Date:
- 1 May 2008
- US Marine Corps (MC14)
- Effective Date:
- 1 May 2008
- Brazil (YA01)
- Effective Date:
- 1 Aug 2010
Approved Sources 5120-01-563-3617
- Part Number
- Manufacturer
- Status
- 93714
- Manufacturer
- 78525 - Stanley Tools Div Of Stanley Works (Active)
- Primary Buy
- Primary Buy
- 93714
- 1JU00 - Irwin Industrial Tool Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 93714
- 5M2Q1 - Irwin Industrial Tool Company (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-563-3617
- Characteristic
- Specifications
- FIIG
- Specifications
- A537G0
- Socket Shape [BPMZ]
- Hexagon
- Socket Distance Across Flats [BPNB]
- 0.250 Inches Nominal
- Drive End Shape [CTCT]
- Male Hexagon
- Shank Width Across Wrench Flats [AGHB]
- 0.250 Inches Nominal
- Overall Length [ABHP]
- 2.250 Inches Nominal
- Features Provided [CBBL]
- Magnetic
- Special Features [FEAT]
- Without C-Ring
Management Data 5120-01-563-3617
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- US Marine Corps (DM)
- EA
- Subscribe
- EA
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5120-01-563-3617
Freight Information 5120-01-563-3617
5120-01-563-3617 has freight characteristics.. 5120-01-563-3617 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
