5120-01-561-4915

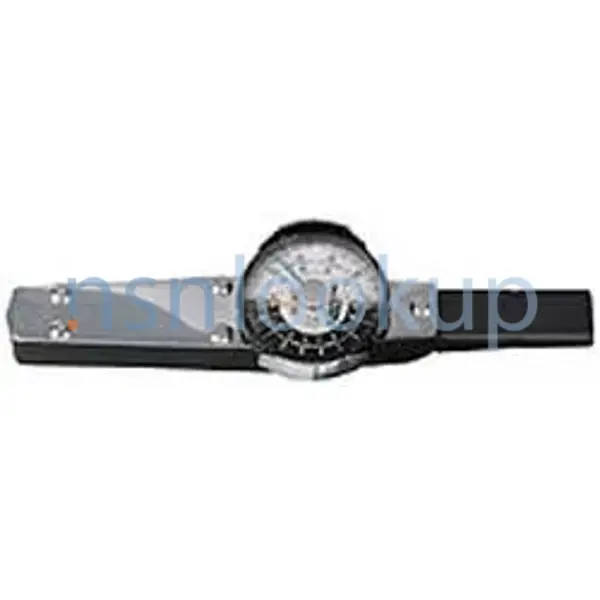

Torque Wrench
5120015614915 015614915 64-302
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
September 2025
4
Marketplace 5120-01-561-4915
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-561-4915 5+ Documents (More...)
WRENCH,TORQUE 10 EA NS Request Quotation Updated Every Day 64-302 RQST NE Updated Every Day 5120-01-
-01-561-4915 Torque Wrench 5120015614915 015614915,64-302 Photo 1/3 5120-01-561-4915 Photo 2/3 NSN 5120
8475142097409 142097409 8475-14-209-7409 is a Torque Wrench Similar Supply Items to 8475-14-209-7409 5120-01-561-4915
9999226003775 226003775 9999-22-600-3775 is a Torque Wrench Similar Supply Items to 9999-22-600-3775 5120-01-561-4915
Restrictions 5120-01-561-4915
5120-01-561-4915 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-561-4915
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-561-4915
- Spain (YB01)
- Effective Date:
- 1 Mar 2008
Approved Sources 5120-01-561-4915
- Part Number
- Manufacturer
- Status
- 64-302
- Manufacturer
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- 64-302
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 64-302
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-561-4915
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.250 Inches Nominal Single End
- Material [MATT]
- Steel Overall
- Special Features [FEAT]
- Memory Indicator; Dual Scale; 0.2 Nm Graduations
- Torque Indicating Mechanism [AJCF]
- Dial
- Torque Capacity [AJCG]
- 0.0 Inch-Pounds Minimum And 75.0 Inch-Pounds Maximum And 0.0 Meter-Newton Minimum And 9.0 Meter-Newton Maximum
- Torque Scale Graduation [AJCH]
- 1.00 Inch-Pounds
- Torque Signal Method [AJDR]
- Dial Indicator
- Style Designator [STYL]
- Rigid Frame End Drive
- Surface Treatment [SFTT]
- Chromium Overall
Similar Supply Items to 5120-01-561-4915
Freight Information 5120-01-561-4915
5120-01-561-4915 has freight characteristics.. 5120-01-561-4915 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
