5120-01-551-2585
Socket Wrench Adapter-Extension
5120015512585 015512585 J5463W 1AM46 5463W
An attachment for extending the drive length of socket wrenches or handles. The body of the item may be either a coil spring or a solid bar. The items permit the connection of ends that are designed for direct mating to each other. See also ADAPTER, SOCKET WRENCH; UNIVERSAL JOINT, SOCKET WRENCH ATTACHMENT; and ADAPTER, SOCKET, CROWFOOT SOCKET WRENCH HEAD. View more Socket Wrench Extension
May 2023
4
Marketplace 5120-01-551-2585
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-551-2585 3+ Documents (More...)

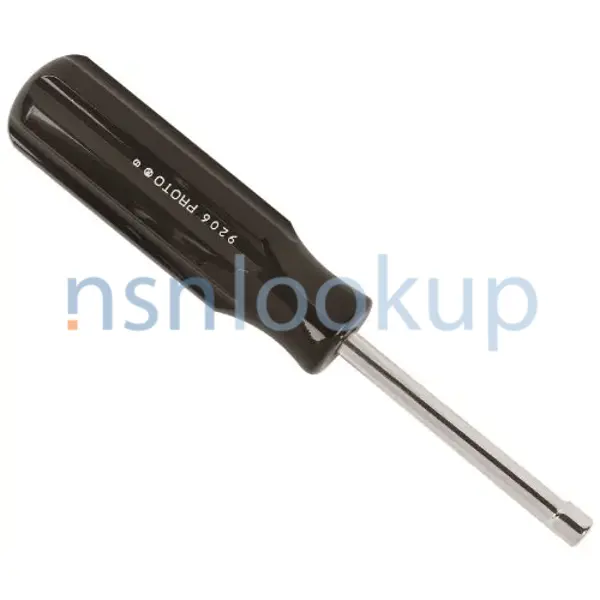

Photo 1/3 5120-01-551-2585 Photo 2/3 NSN 5120-01-551-2585 (Identification) 3/3 - - - 1.
Every Day 5463W RQST NE Updated Every Day 1AM46 RQST NE Updated Every Day 5120-01-551-2585 RQST NE Updated
Restrictions 5120-01-551-2585
5120-01-551-2585 is a Socket Wrench Adapter-Extension that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-551-2585
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-551-2585
- Canada (ZC01)
- Effective Date:
- 1 May 2007
Approved Sources 5120-01-551-2585
- Part Number
- Manufacturer
- Status
- J5463W
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 1AM46
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 5463W
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-551-2585
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Rigid
- Overall Length [ABHP]
- 10.000 Inches Nominal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Both Ends
- Drive End Shape [CTCT]
- Square First End Internal
- Drive End Shape [CTCT]
- Square Second End External
- Special Features [FEAT]
- Wobble Type
Similar Supply Items to 5120-01-551-2585
Freight Information 5120-01-551-2585
5120-01-551-2585 has freight characteristics managed by the Department of the Air Force.. 5120-01-551-2585 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
