5120-01-531-6185

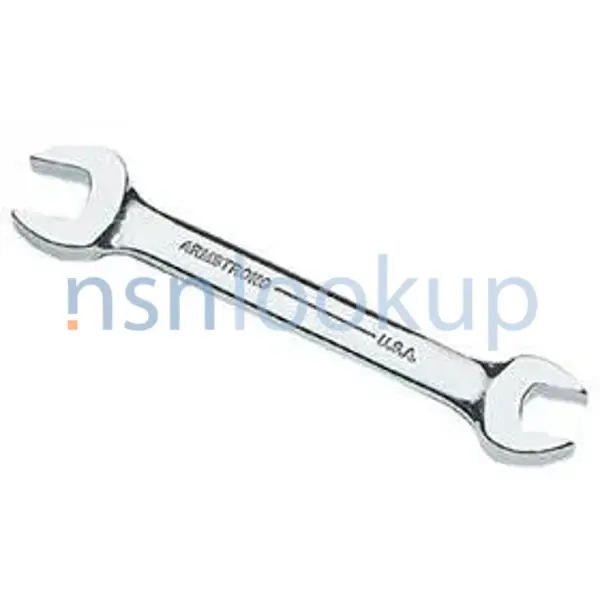

Open End Wrench
5120015316185 015316185 53-106
A nonadjustable wrench having an open end wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; WRENCH, LINEMAN'S; and WRENCH, BOX AND OPEN END, COMBINATION. View more Open End Wrench
May 2023
3
Marketplace 5120-01-531-6185
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-531-6185 5+ Documents (More...)
-531-6185 RQST NE Updated Every Day 5120-01-531-6185 RQST Updated Every Day 5120-01-531-6185 RQST NE
Updated Every Day 53-106 RQST NE Updated Every Day 5120-01 -531-6185 RQST NE Updated Every Day 5120-
Restrictions 5120-01-531-6185
5120-01-531-6185 is a Open End Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-531-6185
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-531-6185
- Portugal (ZP01)
- Effective Date:
- 1 Jul 2005
Approved Sources 5120-01-531-6185
- Part Number
- Manufacturer
- Status
- 53-106
- Manufacturer
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- 53-106
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 53-106
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-531-6185
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Double Head
- Overall Length [ABHP]
- 247.6 Millimeters Nominal
- Large End Head Thickness [AJAU]
- 7.9 Millimeters Nominal
- Small End Head Thickness [AJAV]
- 7.9 Millimeters Nominal
- Small End Head Angle [CTHK]
- 15.0 Degrees Nominal
- Large End Head Angle [CWGT]
- 15.0 Degrees Nominal
- Wrenching Surface Size [AJBR]
- 19.0 Millimeters Nominal First End
- Wrenching Surface Size [AJBR]
- 22.0 Millimeters Nominal Second End
- Wrenching Surface Shape [CRWY]
- Oval Both Ends Internal
Similar Supply Items to 5120-01-531-6185
Freight Information 5120-01-531-6185
5120-01-531-6185 has freight characteristics managed by the Office of Economic Opportunity.. 5120-01-531-6185 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
