5120-01-439-4398

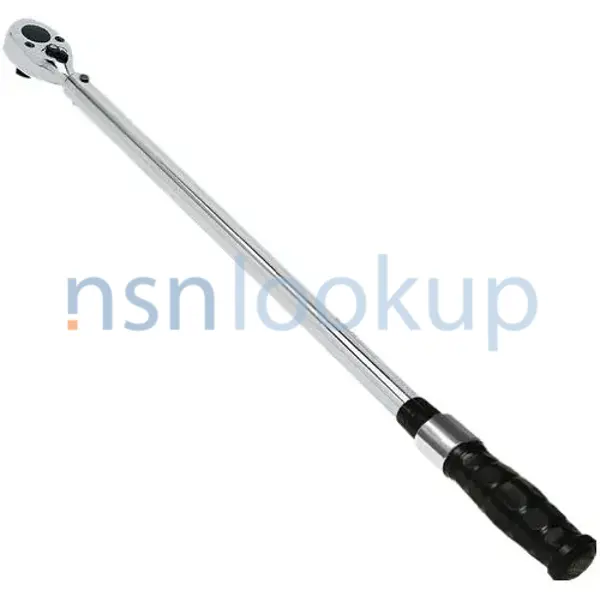

Torque Wrench
5120014394398 014394398 B107.300 B107.14 B107.14 TY2CLAST2DEA J-24407 2503MFRPH
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
May 2023
15
Marketplace 5120-01-439-4398
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-439-4398 5+ Documents (More...)
TY2CLAST2DEA TY1CL2 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B https//www.nsnlookup.com B107.14
TY2CLAST2DEA TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 us 5120-01-439-4398 Torque Wrench
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-439-4398 Torque Wrench 5120014394398 014394398
QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B TY1CL2 AS28431 QJR3200A B107.14 B107.14 TY2CLAST2DEA
us 5120-01-439-4398 Torque Wrench 5120014394398 014394398 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B
TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA https// QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B
https// QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA https// B107.14 011255190
Torque Wrench 5120014394398 014394398 TY2CLAST2DEA TY1CL2 QJR3200A B107.14 TY2CLAST2DEA QJR3200
B107.14 B107.14 TY2CLAST2DEA QJR3200 B107.14 TY2CLAST2DEA TY1CL2 AS28431 TY2CLAST2DEA QJR3200 QJR3200B
QJR3200B B107.14 TY2CLAST2DEA https// B107.14 011255190 TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA
Restrictions 5120-01-439-4398
5120-01-439-4398 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-439-4398
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-439-4398
- NASA (G751)
- Effective Date:
- 1 May 2014
- US Marine Corps (MC14)
- Effective Date:
- 1 Sep 2014
- US Navy (N9QG)
- Effective Date:
- 1 May 2016
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Jul 2016
- Singapore (YJ01)
- Effective Date:
- 1 Jun 1998
- Greece (ZU01)
- Effective Date:
- 1 Jul 2016
Approved Sources 5120-01-439-4398
- Part Number
- Manufacturer
- Status
- B107.300
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.14
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- B107.14 TY2CLAST2DEA
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- J-24407
- 33287 - Bosch Automotive Service Solutions (Active)
- Secondary Buy
- Secondary Buy
- 2503MFRPH
- 55719 - Idsc Holdings Llc (Active)
- Secondary Buy
- Secondary Buy
- 2503MFRPH
- 08194 - Consolidated Devices, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 2503MFRPH
- 3LSJ2 - Snap-On Incorporated (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-439-4398
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And A Class And 2 Style And A Design
- Overall Length [ABHP]
- 21.250 Inches Nominal
- Special Features [FEAT]
- Ratchet Head; Dual Scale; 1.5 Nm Graduations; Plastic Grip Handle
- Torque Capacity [AJCG]
- 30.0 Foot-Pounds Minimum And 250.0 Foot-Pounds Maximum And 47.0 Meter-Newton Minimum And 332.0 Meter-Newton Maximum
- Torque Indicating Mechanism [AJCF]
- Micrometer
- Torque Scale Graduation [AJCH]
- 1.00 Foot-Pounds
- Torque Signal Method [AJDR]
- Audible
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.14 Professional/Industrial Association Standard
- Style Designator [STYL]
- Micrometer End Drive
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-439-4398
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- May 2019
- Department of the Navy (DN)
- EA
- Subscribe
- EA
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- 3
- Calibration Required
Similar Supply Items to 5120-01-439-4398
Freight Information 5120-01-439-4398
5120-01-439-4398 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-01-439-4398 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-439-4398 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-439-4398 is not classified as a special type of cargo when transported by water. 5120-01-439-4398 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
