5120-01-439-4395

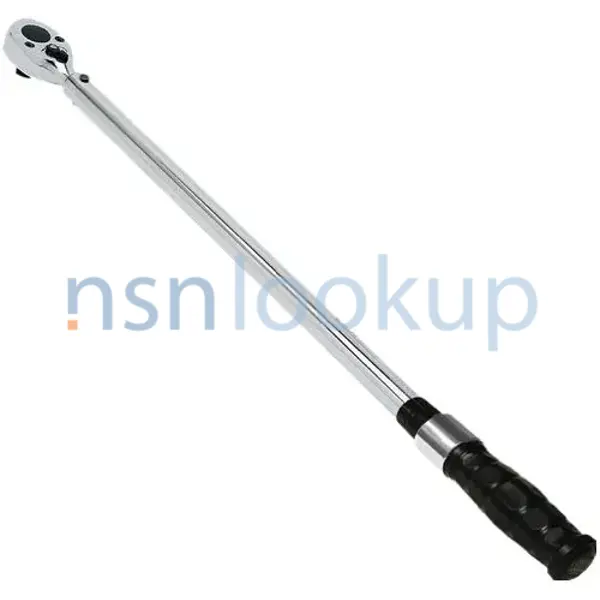

Torque Wrench
5120014394395 014394395 AS28431 AS28431 TY1CL2 B107.300 B107.14 B107.14 TY2CLAST2DEA 1501MRPH
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
August 2023
18
Marketplace 5120-01-439-4395
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-439-4395 5+ Documents (More...)
011255190 TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA https// QJR3200 QJR3200B B107.14 TY2CLAST2DEA
TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA TY1CL2 AS28431 QJR3200A B107.14 for -686 TY3CL2 B107.14
AS28431 QJR3200A B107.14 TY2CLAST2DEA https//www.nsnlookup.com https//www.nsnlookup.com /fsg-51/fsc-
5120/us 5120-01-439-4395 Torque Wrench 5120014394395 014394395 AS28431 TY1CL2B107.300B107.14B107.14 TY2CLAST2DEA
TY1CL2B107.300B107.14 6014 B107.14 TY2CLAST2DEA TY1CL2 AS28431 QJR3200A B107.14 manual tool for tightening
-0239 Torque Wrench 5120014000239 014000239 AS28431 TY1CL2B107.300B107.14 6014 B107.14 TY2CLAST2DEA A
TY1CL2 fasteners B107.14 TY2CLAST2DEA 28414 TY2CLAST2DEA 28414 TY2CLAST2DEA 28414 AS28431 TY1CL2 TCI
www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-439-4395 Torque Wrench 5120014394395 014394395 AS28431
Restrictions 5120-01-439-4395
5120-01-439-4395 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-439-4395
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-439-4395
- US Air Force (FGGS)
- Effective Date:
- 1 Dec 1996
- NASA (G751)
- Effective Date:
- 1 Dec 1996
- US Marine Corps (MC14)
- Effective Date:
- 1 Dec 1996
- US Navy (N9QG)
- Effective Date:
- 1 Dec 1996
- Supplementary Collaborators:
- GTJB
- Singapore (YJ01)
- Effective Date:
- 1 Feb 2008
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Dec 2009
Approved Sources 5120-01-439-4395
- Part Number
- Manufacturer
- Status
- AS28431
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- 1501MRPH
- 55719 - Idsc Holdings Llc (Active)
- Primary Buy
- Primary Buy
- AS28431 TY1CL2
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- B107.300
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14 TY2CLAST2DEA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1501MRPH
- 08194 - Consolidated Devices, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 1501MRPH
- 3LSJ2 - Snap-On Incorporated (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS28431
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-439-4395
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.250 Inches Nominal Single End
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 2 Class
- Overall Length [ABHP]
- 9.750 Inches Nominal
- Special Features [FEAT]
- Ratchet Head; Dual Scale; 0.1 Nm Graduations; Plastic Grip Handle
- Torque Scale Graduation [AJCH]
- 1.00 Inch-Pounds
- Torque Signal Method [AJDR]
- Audible
- Torque Capacity [AJCG]
- 20.0 Inch-Pounds Minimum And 150.0 Inch-Pounds Maximum And 2.8 Meter-Newton Minimum And 16.4 Meter-Newton Maximum
- Torque Indicating Mechanism [AJCF]
- Micrometer
- Specification/Standard Data [ZZZK]
- 81343-Sae As28431 Professional/Industrial Association Standard
- Style Designator [STYL]
- Micrometer End Drive
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-439-4395
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- 3
- Calibration Required
Similar Supply Items to 5120-01-439-4395
Freight Information 5120-01-439-4395
5120-01-439-4395 has freight characteristics.. 5120-01-439-4395 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
