5120-01-434-9860
C Clamp
5120014349860 014349860 78-060

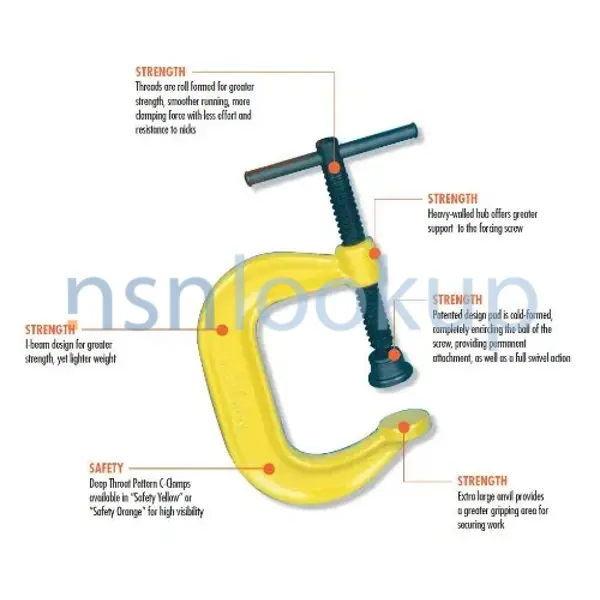

A clamping device in the shape of the letter C having a screw with or without a swivel button at the contact end, and a thumbscrew, T-handle, or square-end drive. Excludes CLAMP, LOOP. View more C Clamp
May 2023
11
Marketplace 5120-01-434-9860
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-434-9860 2+ Documents (More...)
/fsg-51/fsc-5120/us
C Clamp 5120014349860 014349860,78-060 CLAMP,C 10 EA NS Request Quotation Updated Every Day 78-060 RQST
NE Updated Every Day 5120-01-434-9860 C Clamp 5120014349860 014349860,78-060 CLAMP,C 10 EA NS Request
Restrictions 5120-01-434-9860
5120-01-434-9860 is a C Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-434-9860
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-434-9860
- Canada (ZC01)
- Effective Date:
- 1 Sep 2002
Approved Sources 5120-01-434-9860
- Part Number
- Manufacturer
- Status
- 78-060
- Manufacturer
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- 78-060
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 78-060
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-434-9860
- Characteristic
- Specifications
- FIIG
- Specifications
- T294-L
- Test Load Rating [BSKJ]
- 27500.0 Pounds
- Throat Depth [AQCL]
- 3.250 Inches Nominal
- Jaw Nominal Opening [BSKN]
- 6.625 Inches
- Special Features [FEAT]

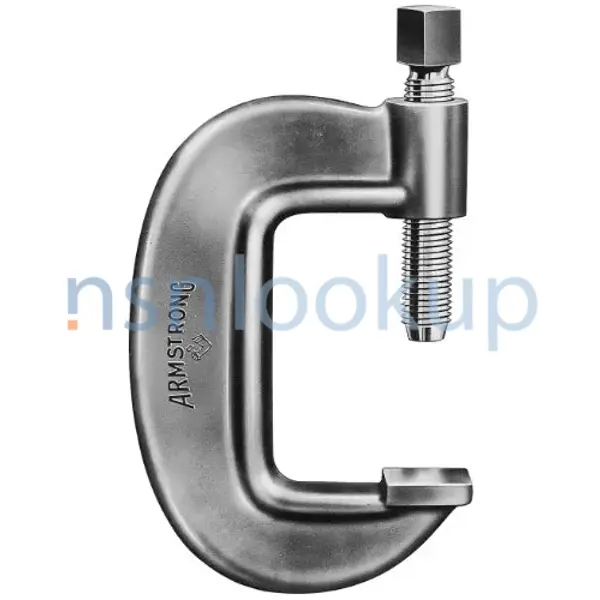

- Square Head Screw; 1-1/8 In. Screw Dia
Similar Supply Items to 5120-01-434-9860
Freight Information 5120-01-434-9860
5120-01-434-9860 has freight characteristics.. 5120-01-434-9860 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
