5120-01-434-9268
C Clamp
5120014349268 014349268 78-041
Cancelled Without Replacement effective 12 Aug 1996
A clamping device in the shape of the letter C having a screw with or without a swivel button at the contact end, and a thumbscrew, T-handle, or square-end drive. Excludes CLAMP, LOOP. View more C Clamp
May 2023
11
Marketplace 5120-01-434-9268
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-434-9268 2+ Documents (More...)
/fsg-51/fsc-5120/us
5120-01-434-9268 RQST NE Updated Every Day 5120-01-434-9268 RQST Updated Every Day 5120-01-434-9268

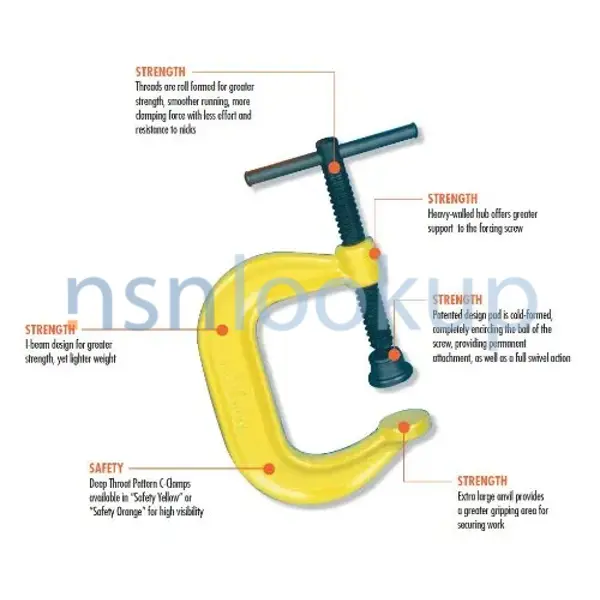

fsc-5120/us 5120-01-434-9268 C Clamp 5120014349268 014349268,78-041 Photo 1/2 5120-01-434-9268 Restrictions
Restrictions 5120-01-434-9268
5120-01-434-9268 is a C Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-434-9268
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
Approved Sources 5120-01-434-9268
- Part Number
- Manufacturer
- Status
- 78-041
- Manufacturer
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- 78-041
- 08292 - Easco Hand Tools Inc (Replaced)
- Original Design
- Original Design
- 78-041
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-434-9268
- Characteristic
- Specifications
- FIIG
- Specifications
- T294-L
- Test Load Rating [BSKJ]
- 20000.0 Pounds
- Throat Depth [AQCL]
- 2.438 Inches Nominal
- Jaw Nominal Opening [BSKN]
- 4.625 Inches
- Special Features [FEAT]
- Square Head Screw (Full Length); 1 In. Screw Dia
- Supplementary Features [SUPP]
- Industrial Quality (Iq) Tools Program Item
Similar Supply Items to 5120-01-434-9268
Freight Information 5120-01-434-9268
5120-01-434-9268 has freight characteristics.. 5120-01-434-9268 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
