5120-01-428-4974

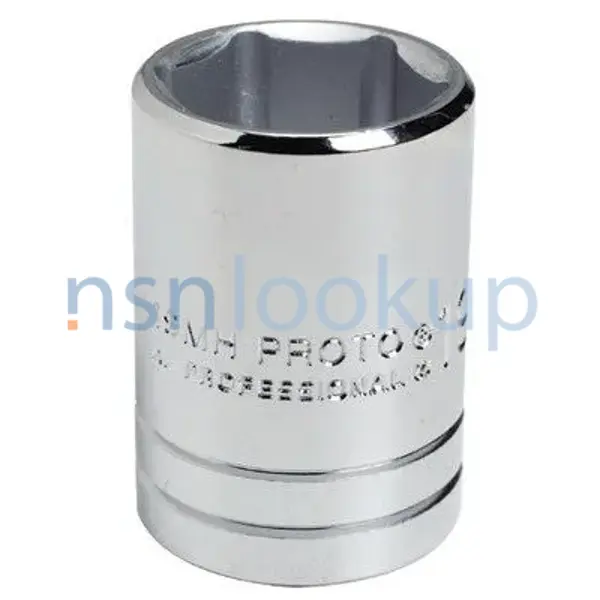

Socket Wrench Socket
5120014284974 014284974 B107.5 B107.5 TY1CL1 J5424MH 5F471 5424MH
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
May 2023
11
Marketplace 5120-01-428-4974
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-428-4974 5+ Documents (More...)
5424MH RQST NE Updated Every Day 5F471 RQST NE Updated Every Day 5120-01-428-4974 RQST NE Updated Every
RQST NE Updated Every Day 5F471 RQST NE Updated Every Day 5120-01-428-4974 RQST NE Updated Every B107.5
Socket Wrench Socket 5120014284974 014284974 B107.5 https//www.nsnlookup.com /fsg-51/fsc-5120/us
Socket Wrench Socket 5120014284974 014284974 013489043 Account Upgrade 5120-01-348-9043Socket Wrench
vendors Request FedMall Updated Every 15 Minutes 5120-01-649-0870 BUY NE FedMall Updated Every Day J5424MH
Socket Wrench Socket 5120014284974 014284974 Account Upgrade 5120-01-428-4974Socket Wrench Socket5120014284974
B107.5 TY1CL1 TWM24 V624MMR ZHVY0294 V624MM An item having an internal drive at one end made to fit
Socket Wrench Socket 5120014284974 014284974 Socket Wrench Socket 5120013668672013668672 5120013489043
Socket Wrench Socket 5120014284974 014284974 /fsg-51/fsc-5120/us 5120-01-348-9043 Socket Wrench
Socket 5120013489043 013489043 B107.5 TY1CL1 TWM24 V624MMR ZHVY0294 V624MM An item having an internal
Restrictions 5120-01-428-4974
5120-01-428-4974 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-428-4974
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-428-4974
- US Army (A192)
- Effective Date:
- 16 May 1996
- US Air Force (FGGS)
- Effective Date:
- 16 May 1996
- NASA (G751)
- Effective Date:
- 27 Mar 1996
- US Marine Corps (MC14)
- Effective Date:
- 16 May 1996
- US Navy (N9QG)
- Effective Date:
- 20 Jun 2004
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jun 2012
Approved Sources 5120-01-428-4974
- Part Number
- Manufacturer
- Status
- B107.5
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.5 TY1CL1
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- J5424MH
- 1CV05 - The Stanley Works (Active)
- Secondary Buy
- Secondary Buy
- 5F471
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 5424MH
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-428-4974
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Features Provided [CBBL]
- Manual Tool
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 1 Class
- Overall Length [ABHP]
- 45.0 Millimeters Maximum
- Special Features [FEAT]
- Standard Length
- Wrenching Surface Shape [CRWY]
- 6 Point Single End Internal
- Wrenching Surface Size [AJBR]
- 24.0 Millimeters Nominal Single End
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.5 Professional/Industrial Association Standard
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-428-4974
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2023
- General Services Administration (TG)
- EA
- Subscribe
- EA
NATO Stock Numbers Related to 5120-01-428-4974
Freight Information 5120-01-428-4974
5120-01-428-4974 has freight characteristics.. 5120-01-428-4974 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
