5120-01-428-4963

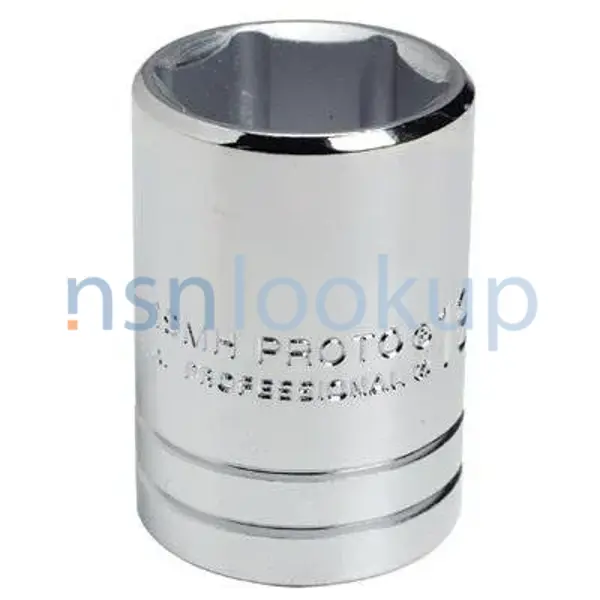

Socket Wrench Socket
5120014284963 014284963 B107.5 B107.5 TY1CL1 J5423MH 5F470 5423MH
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
May 2023
11
Marketplace 5120-01-428-4963
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-428-4963 5+ Documents (More...)
5423MH RQST NE Updated Every Day 5F470 RQST NE Updated Every Day 5120-01-428-4963 RQST NE Updated Every
RQST NE Updated Every Day 5F470 RQST NE Updated Every Day 5120-01-428-4963 RQST NE Updated Every RQST
Socket Wrench Socket 5120014284963 014284963 Upgrade 5120-01-428-4963Socket Wrench Socket5120014284963
014284963 B107.5 B107.5 TY1CL1 J5423MH 5F470 5423MH B107.5B107.5 TY1CL1J5423MH5F4705423MH An item having
Socket Wrench Socket 5120014284963 014284963 Account Upgrade 5120-01-428-4963Socket Wrench Socket5120014284963
014284963 B107.5 B107.5 TY1CL1 J5423MH to View Vendor Details... 5423MH SOCKET,SOCKET WRENCH 10 EA NS
Socket Wrench Socket 5120014284963 014284963 B107.5 TY1CL1 J5423MH 5F470 5423MH An item having
www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-348-9109 Socket Wrench Socket 5120013489109 013489109 B107.5
Every Day 5120-01-348-9042 RQST NE Updated Every https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-428-4963
Socket Wrench Socket 5120014284963 014284963 www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-348-
Restrictions 5120-01-428-4963
5120-01-428-4963 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-428-4963
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-428-4963
- US Army (A192)
- Effective Date:
- 16 May 1996
- US Air Force (FGGS)
- Effective Date:
- 16 May 1996
- NASA (G751)
- Effective Date:
- 27 Mar 1996
- US Marine Corps (MC14)
- Effective Date:
- 16 May 1996
- US Navy (N9QG)
- Effective Date:
- 20 Jun 2004
- Republic of Korea (ZH01)
- Effective Date:
- 1 Nov 2013
Approved Sources 5120-01-428-4963
- Part Number
- Manufacturer
- Status
- B107.5
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.5 TY1CL1
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- J5423MH
- 1CV05 - The Stanley Works (Active)
- Secondary Buy
- Secondary Buy
- 5F470
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 5423MH
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-428-4963
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Features Provided [CBBL]
- Manual Tool
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 1 Class
- Overall Length [ABHP]
- 45.0 Millimeters Maximum
- Special Features [FEAT]
- Standard Length
- Wrenching Surface Size [AJBR]
- 23.0 Millimeters Nominal Single End
- Wrenching Surface Shape [CRWY]
- 6 Point Single End Internal
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.5 Professional/Industrial Association Standard
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-428-4963
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2023
- General Services Administration (TG)
- EA
- Subscribe
- EA
NATO Stock Numbers Related to 5120-01-428-4963
Freight Information 5120-01-428-4963
5120-01-428-4963 has freight characteristics.. 5120-01-428-4963 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
