5120-01-428-4851
Socket Wrench Socket
5120014284851 014284851 J5436M 1AN57 5436M
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
May 2023
11
Marketplace 5120-01-428-4851
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-428-4851 5+ Documents (More...)

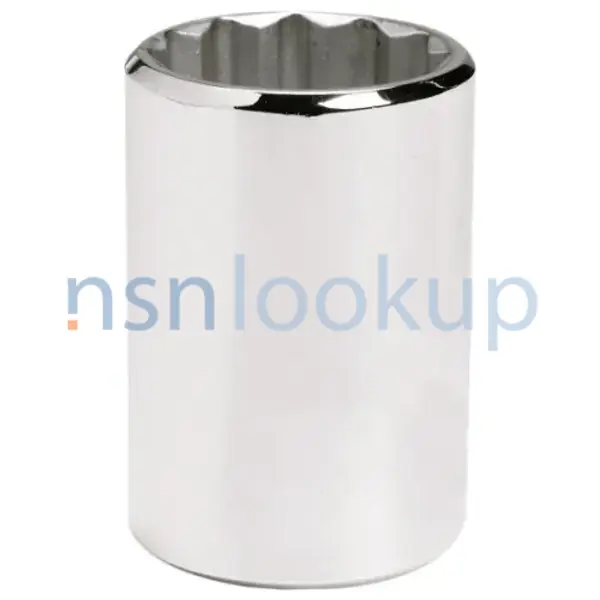

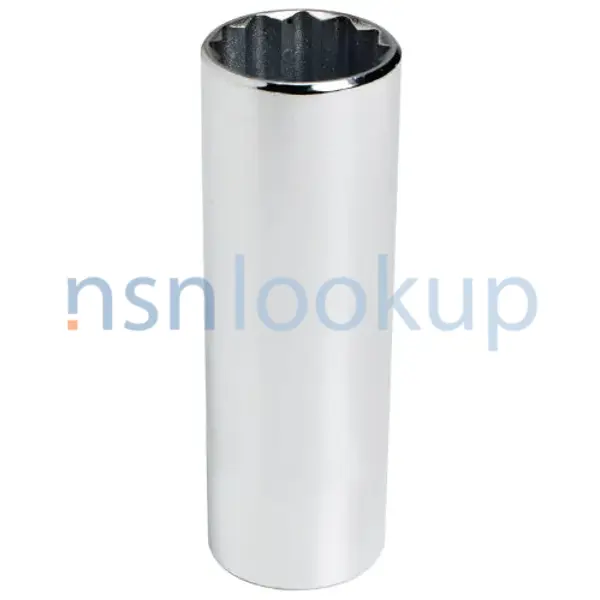

Photo 1/3 5120-01-428-4851 Photo 2/3 NSN 5120-01-428-4851 (Identification) 3/3 - - - 1.
5436M RQST NE Updated Every Day 1AN57 RQST NE Updated Every Day 5120-01-428-4851 RQST NE Updated Every
Restrictions 5120-01-428-4851
5120-01-428-4851 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-428-4851
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-428-4851
- NASA (G752)
- Effective Date:
- 1 Apr 2013
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jul 2013
Approved Sources 5120-01-428-4851
- Part Number
- Manufacturer
- Status
- J5436M
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 1AN57
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 5436M
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-428-4851
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Chromium Overall
- Style Designator [STYL]
- Internal-Internal
- Overall Length [ABHP]
- 56.8 Millimeters Nominal
- Wrenching Surface Size [AJBR]
- 36.0 Millimeters Nominal Single End
- Wrenching Surface Shape [CRWY]
- 12 Point Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Drive End Shape [CTCT]
- Square Single End Internal
- Features Provided [CBBL]
- Manual Tool
- Special Features [FEAT]
- Standard Length
Management Data 5120-01-428-4851
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Jun 2014
- US Marine Corps (DM)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- V
- Discontinued Without Replacement
- V
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5120-01-428-4851
Freight Information 5120-01-428-4851
5120-01-428-4851 has freight characteristics.. 5120-01-428-4851 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
