5120-01-428-4738

Torque Wrench

5120014284738 014284738 B107.300 B107.14 B107.14 TY2CLAST1 1Q877 J6023 8448 6023

A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench

5120-01-428-4738 WRENCH,TORQUE 5120014284738 014284738

Managed by United States
NSN Created on 27 Mar 1996
Data Last Changed
November 2023
NATO Update Count
18
NATO Data Quality
5120-01-428-4738 WRENCH,TORQUE 5120014284738 014284738 1/3

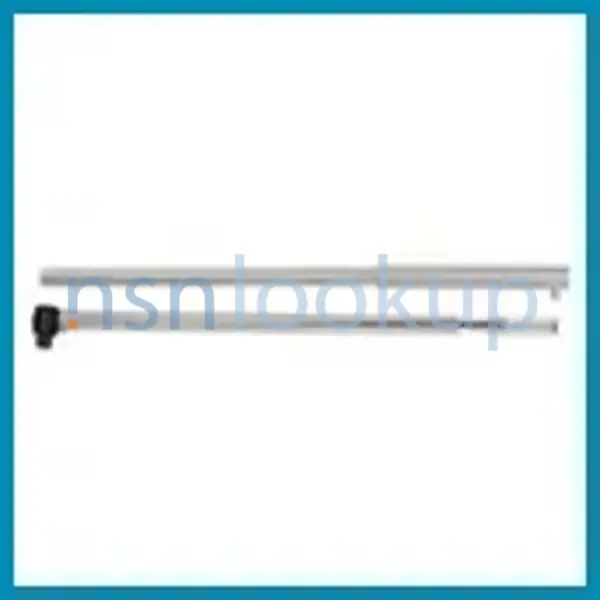

5120-01-428-4738 Photo 1/3
5120-01-428-4738 WRENCH,TORQUE 5120014284738 014284738 2/3

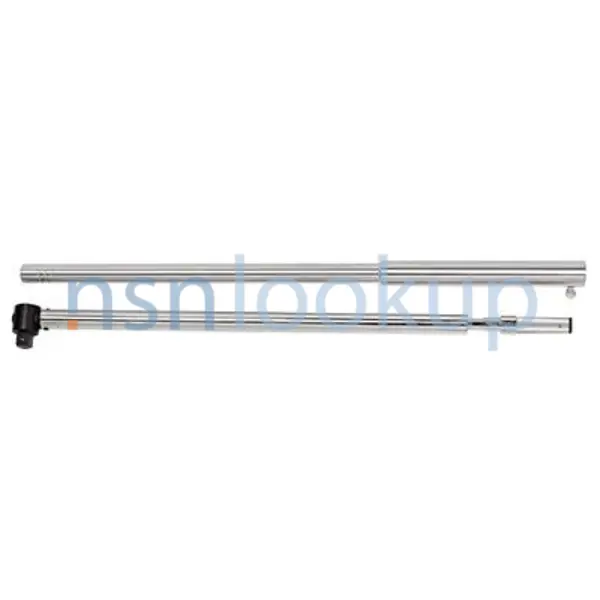

5120-01-428-4738 Photo 2/3
STYL Style 857 for 5120-01-428-4738 3/3
NSN 5120-01-428-4738 (Identification) 3/3

5120-01-428-4738 Stock and Availability Marketplace 5120-01-428-4738

5120-01-428-4738 Related Documents Related Documents 5120-01-428-4738 5+ Documents (More...)

B107.300 B107.14 B107.14 TY2CLAST1 1Q877 J6023 8448 6023 A manual tool for tightening various fasteners
Every Day J6023 RQST NE Updated Every Day 6023 RQST NE Updated Every Day 1Q877 RQST NE Updated Every
RQST NE Updated Every Day 6023 RQST NE Updated Every Day 1Q877 RQST NE Updated Every Day 8448 RQST NE
//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-428-4738 Torque Wrench 5120014284738 014284738 LTC1 B107.14
LTC1 B107.14 https TY2CLAST1DEB B107.300 6061 A manual tool for tightening TY2CL2 B107.14 6061AB B107.14
6061AB B107.300 LTC1 B107.14 https LTC1 B107.14 https TY2CLAST1DEB B107.300 https//www.nsnlookup.com
Wrench 5120014308556 014308556 TY1CLCST1 B107.14 TSF- B107.300 LTC1 B107.14 https TY2CLAST1DEB B107.300
5120-01-646-3631 Torque Wrench 5120016463631 TY2CL2 B107.14 6061AB B107.300 LTC1 B107.14 https LTC1
LTC1 B107.14 https LTC1 B107.14 https TY2CLAST1DEB B107.300 6061 A manual tool for tightening TY2CL2
5120016100660 016100660 B107.300 LTC1 B107.14 https TY2CLAST1DEB B107.300 6061 A manual tool https//
https TY2CLAST1DEB B107.300 6061 A manual tool for tightening TY2CL2 B107.14 6061AB B107.300 LTC1 B107.14
LTC1 B107.14 https//www.nsnlookup.com 013944255 B107.300 LTC1 B107.14 https// www.nsnlookup.com /fsg-
A manual tool for tightening TY2CL2 B107.14 6061AB B107.300 LTC1 B107.14 LTC1 B107.14 https//www.nsnlookup.com
B107.14 https TY2CLAST1DEB B107.300 https//www.nsnlookup.com B107.300 LTC1 B107.14 https TY2CLAST1DEB
TY2CL2 B107.14 6061AB B107.300 LTC1 B107.14 https LTC1 B107.14 https//www.nsnlookup.com /fsg-51/fsc-

5120-01-428-4738 Demil Restrictions 5120-01-428-4738

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC:

5120-01-428-4738 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
