5120-01-428-4666

Socket Wrench Socket

5120014284666 014284666 B107.5 B107.5 TY1CL1 M1230H J5430MH 5F477 5430MH

An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket

5120-01-428-4666 SOCKET,SOCKET WRENCH 5120014284666 014284666

Managed by United States
NSN Created on 27 Mar 1996
Data Last Changed
May 2023
NATO Update Count
12
NATO Data Quality
5120-01-428-4666 SOCKET,SOCKET WRENCH 5120014284666 014284666 1/2

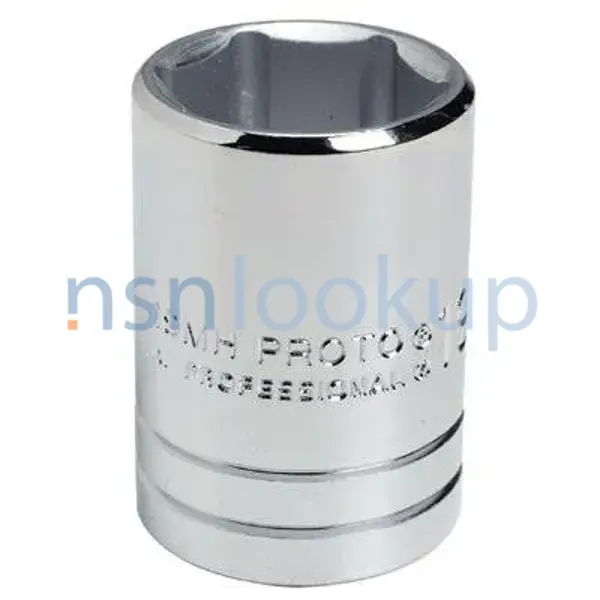

5120-01-428-4666 Photo 1/2
STYL Style 168 for 5120-01-428-4666 2/2
NSN 5120-01-428-4666 (Identification) 2/2

5120-01-428-4666 Stock and Availability Marketplace 5120-01-428-4666

5120-01-428-4666 Related Documents Related Documents 5120-01-428-4666 5+ Documents (More...)

B107.5 B107.5 TY1CL1 M1230H J5430MH 5F477 5430MH An item having an internal drive at one end made to
SOCKET,SOCKET WRENCH RQST NS Request Quotation Updated Every Day J5430MH RQST NE Updated Every Day 5430MH
RQST NE Updated Every Day 5F477 RQST NE Updated Every Day 5120-01-428-4666 RQST NE Updated Every Day
$1 a day Upgrade your Account Upgrade 5120-01-652-1500Socket Wrench Socket5120016521500 016521500 J5430MH
vendors Request FedMall Updated Every 15 Minutes 5120-01-652-1500 BUY NE FedMall Updated Every Day J5430MH
Socket Wrench Socket 5120014284666 014284666 Account Upgrade 5120-01-428-4666Socket Wrench Socket5120014284666
B107.5 TY1CL1 J5216MH 1AL17 5216MH An item having an internal drive at one end made to fit into the
NE Updated Every /fsg-51/fsc-5120/us 5120-01-113-9557 Socket Wrench Socket 5120011139557 011139557 B107.5
www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-113-9557 Socket Wrench Socket 5120011139557 011139557 B107.5
B107.5 TY1CL1 FSM61 An item having an internal drive at one end made to fit into the external drive
//www.nsnlookup.com /fsg-53/fsc-5360/us 5360-00-920-0030 Compression Helical Spring 5360009200030 B107.5
www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-112-0579 Socket Wrench Socket 5120011120579 011120579 B107.5
B107.5 TY1CL1 M65.5MMR M65.5MM An item having an internal drive at one end made to fit into the external
TY1CL1 B107.5M TY1CL1 B107.5M CL1STAB107.5M A group of SOCKET, SOCKET WRENCH having different B107.5
TY1CL1 V610MMR V610MM An item having an internal drive at one end made to fit into the external B107.5

5120-01-428-4666 Demil Restrictions 5120-01-428-4666

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC:

5120-01-428-4666 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

5120-01-428-4666 HTS and ScheduleB Import and Export 5120-01-428-4666

5120-01-428-4666 End Users End Users 5120-01-428-4666

NASA (G751)
Effective Date:
1 Mar 1996
US Marine Corps (MC14)
Effective Date:
1 May 1996
US Navy (N9QG)
Effective Date:
1 Jun 2004
Canada (ZC01)
Effective Date:
1 Sep 2002
Republic of Korea (ZH01)
Effective Date:
1 Jun 2012

5120-01-428-4666 Manufacturers Approved Sources 5120-01-428-4666

5120-01-428-4666 Technical Data Datasheet 5120-01-428-4666

Characteristic
Specifications
FIIG
A102A0
Drive End Shape [CTCT]
Square Single End Internal
Drive Surface Size [ATNC]
0.500 Inches Nominal Single End
Features Provided [CBBL]
Manual Tool
Material [MATT]
Steel Overall
Nondefinitive Spec/Std Data [ZZZT]
1 Type And 1 Class
Overall Length [ABHP]
45.2 Millimeters Nominal
Special Features [FEAT]
Standard Length
Wrenching Surface Shape [CRWY]
6 Point Single End Internal
Wrenching Surface Size [AJBR]
30.0 Millimeters Nominal Single End
Specification/Standard Data [ZZZK]
05047-Asme B107.5 Professional/Industrial Association Standard
Style Designator [STYL]
Internal-Internal
Surface Treatment [SFTT]
Chromium Overall

5120-01-428-4666 Management Data Management Data 5120-01-428-4666

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Feb 2020
Department of the Navy (DN)
EA
Subscribe

Navy Navy

Cognizance:
9Q

Marine Corps Marine Corps

Stores Account:
1
Stock Fund Account Item
Combat Essentiality:
5
Critical Repair Part to a Combat Essential End Item
Echelon Management:
02
Operational Test:
No Special Procedures

5120-01-428-4666 Related Items NATO Stock Numbers Related to 5120-01-428-4666

5120-01-428-4666 Freight Data Freight Information 5120-01-428-4666

5120-01-428-4666 has freight characteristics.. 5120-01-428-4666 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
