5120-01-426-7560

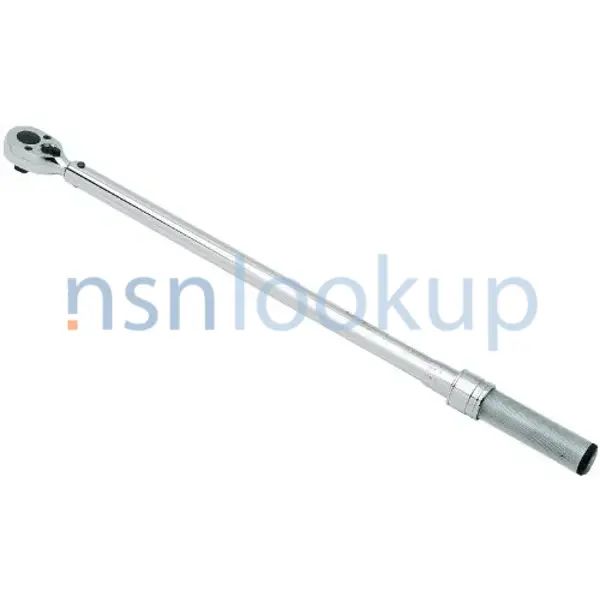

Torque Wrench
5120014267560 014267560 AS28431 TY1CL2 B107.14 TY2CLAST2DEA AS28431 B107.14M B107.300 B107.14 B107.14M TY2CLAST2DEA
A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE. View more Torque Wrench
Managed by United States
NSN Created on 18 Mar 1996
Data Last Changed
May 2023
May 2023
NATO Update Count
33
33
NATO Data Quality
Marketplace 5120-01-426-7560
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-426-7560 5+ Documents (More...)
AS28431 TY1CL2 B107.14 TY2CLAST2DEA AS28431 B107.14M B107.300 B107.14 B107.14M TY2CLAST2DEA A manual
TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA TY3CL2 B107.14 011255190
TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA TY3CL2 B107.14 011255190
TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA TY3CL2 B107.14 011255190
TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA TY3CL2 B107.14 011255190
AS28431 TY1CL2 00944595000 44595 B107.14M B107.300 B107.14 9-44595 B107.14 TY2CLAST2DEA B107.14M TY2CLAST2DEA
AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA https//www.nsnlookup.com
QJR3200B B107.14 TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA AS28431 QJR3200A B107.14 https//www.nsnlookup.com
AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA https//www.nsnlookup.com
QJR3200B B107.14 TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA AS28431 QJR3200A B107.14 https//www.nsnlookup.com
AS28431 TY1CL2 B107.300 B107.14 6008AB 6008A B107.14M 1ARM6 B107.14 TY2CLAST2DEA B107.14M TY2CLAST2DEA
TY2CLAST2DEA A manual tool for TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14
TY2CLAST2DEA TY3CL2 B107.14 011255190 752MFR B107.14M TY2CLAST2DEA A manual B107.14 011255190 TY1CL2
TY2CLAST2DEA A manual tool for TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14
TY2CLAST2DEA TY3CL2 B107.14 011255190 752MFR B107.14M TY2CLAST2DEA A manual B107.14 011255190 TY1CL2
TY1CL2 B107.300 B107.14 B107.14M TY2CLAST2DEA 7502MR AS28431 B107.14M B107.14 TY2CLAST2DEA A manual
TY2CLAST2DEA A manual tool for TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14
TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA TY3CL2 B107.14 011255190
TY2CLAST2DEA A manual tool for TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14
TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14 TY2CLAST2DEA TY3CL2 B107.14 011255190
TY1CL2 AS28431 B107.14 3261 B107.14 TY2CLAST2DEA B107.14M TY2CLAST2DEA B107.14M B107.300 A manual tool
B107.14M TY2CLAST2DEA A manual B107.14 011255190 TY1CL2 AS28431 QJR3200A B107.14 https//www.nsnlookup.com
TY2CLAST2DEA A manual tool for TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14
B107.14M TY2CLAST2DEA A manual B107.14 011255190 TY1CL2 AS28431 QJR3200A B107.14 https//www.nsnlookup.com
TY2CLAST2DEA A manual tool for TY1CL2 AS28431 QJR3200A B107.14 TY2CLAST2DEA QJR3200 QJR3200B B107.14
Restrictions 5120-01-426-7560
5120-01-426-7560 is a Torque Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-426-7560
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-426-7560
- US Army (A192)
- Effective Date:
- 1 Jul 1997
- Supplementary Receivers:
- CT
- US Air Force (FGGS)
- Effective Date:
- 1 Jul 1997
- NASA (G751)
- Effective Date:
- 1 Mar 1996
- US Marine Corps (MC14)
- Effective Date:
- 1 Jul 1997
- US Navy (N9QG)
- Effective Date:
- 1 Nov 2011
- Supplementary Collaborators:
- GTHD
- Czech Republic (WZ01)
- Effective Date:
- 1 Sep 2014
- Brazil (YA01)
- Effective Date:
- 1 May 2012
- Singapore (YJ01)
- Effective Date:
- 1 Sep 1999
- Australia (ZA01)
- Effective Date:
- 1 May 1997
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2006
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
Approved Sources 5120-01-426-7560
- Part Number
- Manufacturer
- Status
- AS28431
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS28431 TY1CL2
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- B107.14 TY2CLAST2DEA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS28431
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14M
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.300
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.14M TY2CLAST2DEA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-426-7560
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End External
- Drive Surface Size [ATNC]
- 0.375 Inches Nominal Single End
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 2 Class
- Overall Length [ABHP]
- 15.000 Inches Minimum And 17.000 Inches Maximum
- Special Features [FEAT]
- Ratchet Head; Plain Steel Handle; Dual Scale; 0.6 Nm Graduations
- Torque Scale Graduation [AJCH]
- 5.00 Inch-Pounds
- Torque Signal Method [AJDR]
- Audible
- Torque Capacity [AJCG]
- 100.0 Inch-Pounds Minimum And 750.0 Inch-Pounds Maximum And 14.1 Meter-Newton Minimum And 81.9 Meter-Newton Maximum
- Torque Indicating Mechanism [AJCF]
- Micrometer
- Specification/Standard Data [ZZZK]
- 81343-Sae As28431 Professional/Industrial Association Standard
- Style Designator [STYL]
- Micrometer End Drive
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-01-426-7560
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2023
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Feb 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5120-01-589-8708
- 0
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- 3
- Calibration Required
NATO Stock Numbers Related to 5120-01-426-7560
5120-66-154-5290 5120-12-384-3257 5120-25-135-7395 5120-21-870-1566 5120-12-312-4120 5120-99-433-0354 5120-99-788-6215 5120-99-122-6175 5120-22-125-4799 5120-34-030-0586 5120-12-345-4269 5120-12-367-1978 5120-99-258-1646 5120-99-108-9853 5120-99-738-9953 5120-22-309-1479 5120-21-880-8042 5120-99-739-0718
Freight Information 5120-01-426-7560
5120-01-426-7560 has freight characteristics.. 5120-01-426-7560 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
