5120-01-419-3283
Socket Wrench Crowfoot Attachment
5120014193283 014193283 0701-3520 4569109H
A wrench component which may contain notches within an open end, box, open wall box, 2 or 3 lug open end wrench opening having a square, internal, fixed, eccentric drive parallel to the wrench opening, designed to receive the external drive end of a HANDLE, SOCKET WRENCH. Items having an open end type wrench opening may have a second drive opening at right angles to the wrench opening. See also SOCKET, CROWFOOT WRENCH HEAD and HEAD, CROWFOOT SOCKET WRENCH. View more Socket Wrench Crowfoot Attachment
January 2023
2
Marketplace 5120-01-419-3283
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-419-3283 1+ Documents (More...)
CROWFOOT ATTACHMENT,SOCKET WRENCH RQST NS Request Quotation Updated Every Day 5120-01-419-3283
RQST NE Updated Every Day 5120-01-419-3283 RQST Updated Every Day 5120-01-419-3283 RQST NE Related Documents
Restrictions 5120-01-419-3283
5120-01-419-3283 is a Socket Wrench Crowfoot Attachment that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-419-3283
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-419-3283
- NASA (G751)
- Effective Date:
- 1 Sep 1995
- US Navy (N9QG)
- Effective Date:
- 1 Sep 1995
- Supplementary Collaborators:
- GTHD
- Spain (YB01)
- Effective Date:
- 1 Jul 2003
Approved Sources 5120-01-419-3283
- Part Number
- Manufacturer
- Status
- 0701-3520
- Manufacturer
- 8S706 - Giga, Inc. (Active)
- Primary Buy
- Primary Buy
- 4569109H
- 53669 - Aptiv Services 3 (Us), Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-419-3283
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0

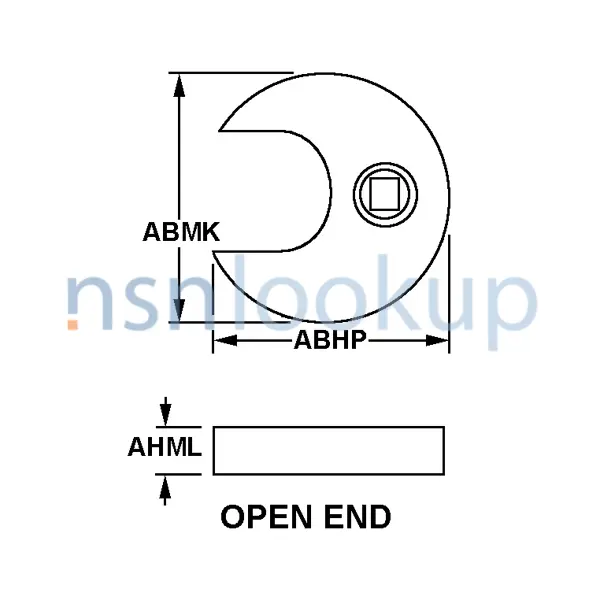

- Style Designator [STYL]
- Open End
- Overall Width [ABMK]
- 2.400 Inches Nominal
- Drive Surface Size [ATNC]
- 0.375 Inches Nominal Single End
- Drive End Shape [CTCT]
- Square Single End Internal
- Special Features [FEAT]
- 1 Fixed And 1 Adjustable Pin On Wrenching Surface
Management Data 5120-01-419-3283
Navy
- Cognizance:
- 9Q
NATO Stock Numbers Related to 5120-01-419-3283
Freight Information 5120-01-419-3283
5120-01-419-3283 has freight characteristics managed by the Food and Drug Administration (FDA).. 5120-01-419-3283 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
