5120-01-412-1818

Socket Wrench Socket

5120014121818 014121818 AS954 AS954 TY1CL1STB 90000003 TV940009 AS955 AS955 TY1CL1STC

An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket

Managed by United States

NSN Created on 12 Apr 1995

Data Last Changed
November 2023

NATO Update Count
12

NATO Data Quality

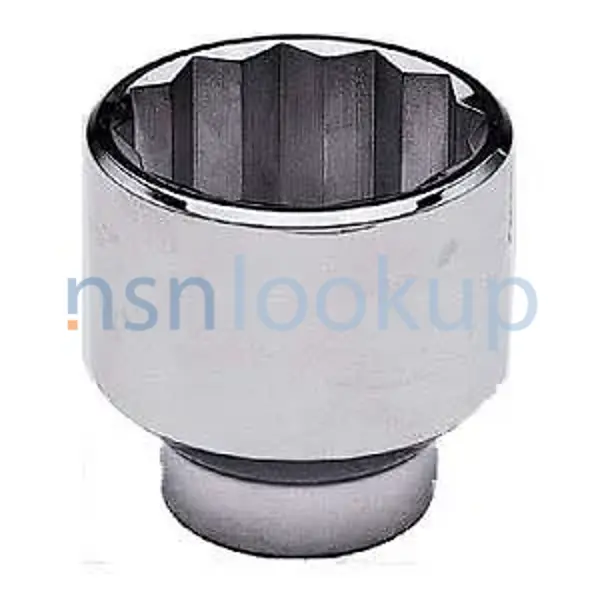

5120-01-412-1818 SOCKET,SOCKET WRENCH 5120014121818 014121818 1/2 — 5120-01-412-1818 Photo 1/2

STYL Style 168 for 5120-01-412-1818 2/2 — NSN 5120-01-412-1818 (Identification) 2/2

Marketplace 5120-01-412-1818

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

AS955TY1CL1STC SOCKET,SOCKET WRENCH 1 EA NS

AS955 SOCKET,SOCKET WRENCH 1 EA NS

Subscribe to View Vendor Details...

5120-01-412-1818 SOCKET,SOCKET WRENCH RQST NS

Updated Every Day

5120-01-412-1818 RQST NE

Updated Every Day

5120-01-412-1818 RQST

Updated Every Day

5120-01-412-1818 RQST NE

Related Documents 5120-01-412-1818 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-412-1818 Socket Wrench Socket 5120014121818 014121818

AS954 AS954 TY1CL1STB 90000003 TV940009 AS955 AS955 TY1CL1STC An item having an internal drive at one
TY1CL1STB B107.5M https//www.nsnlookup.com AS955 TY1CL1STC TY1CL1STC B107.5M A group of SOCKET, AS954
TY1CL1STB B107.5M https//www.nsnlookup.com /fsg-51/ AS955 TY1CL2 AS955 TY1CL1STC B107.5M A group of

https//www.nsnlookup.com
/fsg-48/fsc-4820/de

4820-12-337-4383 Check Ball 4820123374383 123374383,90000003

how to enable JavaScript in your web browser . 4820-12-337-4383Check Ball4820123374383 123374383 90000003
Managed by Italy NSN Created on 11 Apr 2005 Data Last Changed January 2023 NATO (241)A54714B-90000003
Managed by Italy NSN Created on 11 Apr 2005 Data Last Changed January 7330-15- (241)A54714B-90000003

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-348-7281 Socket Wrench Socket 5120013487281 013487281

AS954 TY1CL1STB STMMD5 AS955 AS955 TY1CL1STC An item having an internal drive at one end made to fit
TY1CL1STC B107.5M A group of SOCKET, AS954 TY1CL1STB B107.5M https//www.nsnlookup.com /fsg-51/ AS955
TY1CL2 AS955 TY1CL1STC B107.5M A group of SOCKET, AS954 TY1CL1STB B107.5M https//www.nsnlookup.com https

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-348-9153 Socket Wrench Socket 5120013489153 013489153

AS954 TY1CL1STB AS955 AS955 TY1CL1STC An item having an internal drive at one end made to fit into the
AS955 TY1CL1STC B107.5M A group of SOCKET, AS954 TY1CL1STB B107.5M B107.5M https//www.nsnlookup.com
TY1CL1STB B107.5M https//www.nsnlookup.com /fsg-51/ AS955 TY1CL2 AS955 TY1CL1STC B107.5M A group of

https//www.nsnlookup.com
/fsg-51/fsc-5120/us

5120-01-348-7280 Socket Wrench Socket 5120013487280 013487280

AS954 TY1CL1STB STMMD14 AS955 AS955 TY1CL1STC An item having an internal drive at one end made to fit
B107.5M TY1CL2 AS955 324SMY AS955 TY1CL1STC 324SMG B107.5M A group of SOCKET, SOCKET https CL1STB B107.5M
TY1CL2 AS955 TY1CL1STC B107.5M A group of SOCKET, AS954 TY1CL1STB B107.5M https//www.nsnlookup.com https

Restrictions 5120-01-412-1818

5120-01-412-1818 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5120-01-412-1818

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5120-01-412-1818

US Army (A192)
Effective Date:: 1 Feb 2003
Supplementary Receivers:: AZ; AMC 0 AMSC 0 IMC Z IMCACTY AZ

NASA (G751)
Effective Date:: 1 Feb 2003; AMC 0 AMSC 0

New Zealand (ZE01)
Effective Date:: 1 Dec 1997

Greece (ZU01)
Effective Date:: 1 Apr 2006

Approved Sources 5120-01-412-1818

Part Number
Manufacturer
Status
AS954: 0U583 - Sae International (Active); Incomplete Reference; RNCC 3 RNVC 1 DAC 4
AS954 TY1CL1STB: 80244 - General Services Administration (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
90000003: 79808 - Wright Tool Co (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
TV940009: 19207 - U S Army Tank Automotive Command (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
90000003: 0FW39 - Bae Systems Tactical Vehicle Systems (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
TV940009: 0FW39 - Bae Systems Tactical Vehicle Systems (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
AS955: 0U583 - Sae International (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
AS955 TY1CL1STC: 80244 - General Services Administration (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
AS955: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4

Datasheet 5120-01-412-1818

Characteristic
Specifications
FIIG: A102A0
Drive End Outside Diameter [AHMK]: 2.500 Inches Nominal
Drive End Shape [CTCT]: Square Single End Internal
Drive Surface Size [ATNC]: 0.750 Inches Nominal Single End
Nondefinitive Spec/Std Data [ZZZT]: 1 Type And 1 Class And C Style
Overall Length [ABHP]: 3.400 Inches Nominal
Wrenching Surface Size [AJBR]: 60.0 Millimeters Nominal Single End
Wrenching End Outside Diameter [AHMJ]: 3.031 Inches Nominal
Wrenching Surface Shape [CRWY]: 12 Point Single End Internal
Specification/Standard Data [ZZZK]: 81343-Sae As955 Professional/Industrial Association Standard
Style Designator [STYL]: Internal-Internal

Management Data 5120-01-412-1818

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Nov 2022: US Marine Corps (DM); EA; Subscribe
Oct 2021: Department of the Army (DA); EA; Subscribe
Dec 2020: Department of the Army (DA); EA; Subscribe
Feb 2020: Department of the Army (DA); EA; Subscribe

Army

Materiel Category and Inventory Manager:

E: General Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

D: Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.

NATO Stock Numbers Related to 5120-01-412-1818

5120-14-210-9852 5120-12-364-6803 5120-98-205-9462 5120-33-155-9422 5120-15-113-2845 5120-37-504-7952 5130-21-808-0702 5120-33-110-6240 5120-27-047-5375 5120-14-484-6515 5120-99-786-2481 5120-14-200-9336 5120-14-548-5093 5120-14-530-5337 5120-14-442-2003 5120-34-041-3160 5120-14-525-4363 5120-99-755-3201

Freight Information 5120-01-412-1818

5120-01-412-1818 has freight characteristics.. 5120-01-412-1818 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
