5120-01-399-9815

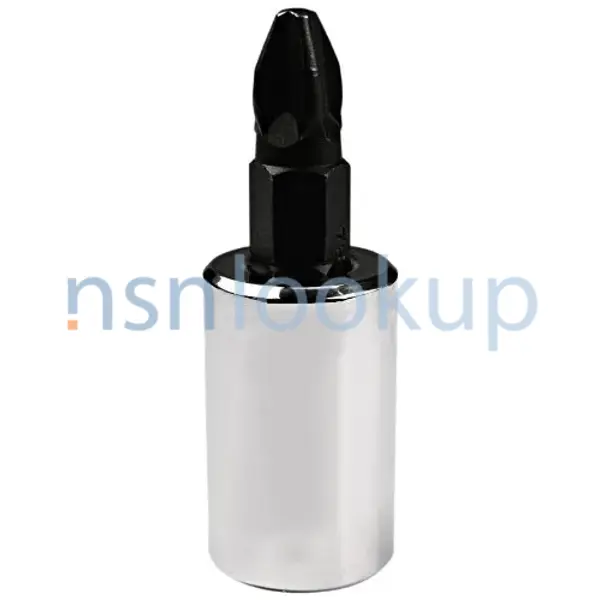

Socket Wrench Screwdriver Attachment
5120013999815 013999815 J5242 STP 5242 1AH94 5242
An attachment designed to fit over the square external drive end of a HANDLE, SOCKET WRENCH; WRENCH, TORQUE; and the like consisting of one or two-piece configuration having a screw driving tip on one end. Excludes BIT, SCREWDRIVER. View more Socket Wrench Screwdriver Attachment
August 2023
15
Marketplace 5120-01-399-9815
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5120-01-399-9815 4+ Documents (More...)
Updated Every Day 5242 RQST NE Updated Every Day 1AH94 RQST NE Updated Every Day 5120-01-399-9815 RQST
the square external drive end of a HANDLE Updated Every Day 5242 RQST NE Updated Every Day 1AH94 RQST
Socket Wrench Screwdriver Attachment,J5242 Account Upgrade 5120-01-399-9815Socket Wrench Screwdriver
Attachment5120013999815 013999815 J5242 STP 5242 RQST NE Updated Every Day 5120-01-399-9815 RQST https
Socket Wrench Screwdriver Attachment,J5242 NumberManufacturerStatusJ5242 1CV05 - The Stanley Works
your web browser . 5910-12-182-3356Plastic Dielectric Fixed Capacitor5910121823356 121823356 B31663-J5242
Restrictions 5120-01-399-9815
5120-01-399-9815 is a Socket Wrench Screwdriver Attachment that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-399-9815
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-399-9815
- US Army (A192)
- Effective Date:
- 1 Jan 1995
- US Coast Guard (C014)
- Effective Date:
- 1 Jan 1995
- US Air Force (FGGS)
- Effective Date:
- 1 Jan 1995
- NASA (G751)
- Effective Date:
- 1 Dec 1994
- US Marine Corps (MC14)
- Effective Date:
- 1 Jan 1995
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2014
- Supplementary Collaborators:
- GG
- Canada (ZC01)
- Effective Date:
- 1 Oct 2014
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jun 2012
Approved Sources 5120-01-399-9815
- Part Number
- Manufacturer
- Status
- J5242
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- STP 5242
- 00NS2 - Kipper Tool Company (Active)
- Secondary Buy
- Secondary Buy
- 1AH94
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 5242
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-399-9815
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive Surface Size [ATNC]
- 0.375 Inches Nominal Single End
- Features Provided [CBBL]
- Manual Tool
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 1.969 Inches Nominal
- Tip Size Designation [BPMT]
- 3
- Wrenching Surface Shape [CRWY]
- Phillips (Cross) Single End External
- Style Designator [STYL]
- Phillips (Cross)
- Surface Treatment [SFTT]
- Oxide Bit
- Surface Treatment [SFTT]
- Chromium Drive Surface
Management Data 5120-01-399-9815
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2021
- General Services Administration (TG)
- EA
- Subscribe
- EA
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5120-01-593-0691
- 4
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5120-01-399-9815
Freight Information 5120-01-399-9815
5120-01-399-9815 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186710. A Sub NMFC of Z. It has a NMFC Description of TOOLS:TORCHES HAND O/T BLOW. 5120-01-399-9815 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-01-399-9815 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-01-399-9815 is not classified as a special type of cargo when transported by water. 5120-01-399-9815 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
