5120-01-399-9783

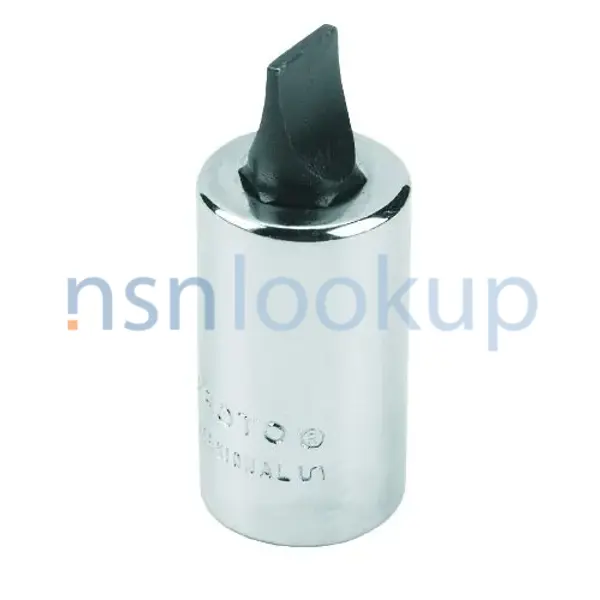

Socket Wrench Screwdriver Attachment
5120013999783 013999783 J4743 1AF58 4743
An attachment designed to fit over the square external drive end of a HANDLE, SOCKET WRENCH; WRENCH, TORQUE; and the like consisting of one or two-piece configuration having a screw driving tip on one end. Excludes BIT, SCREWDRIVER. View more Socket Wrench Screwdriver Attachment
August 2023
13
Marketplace 5120-01-399-9783
Request a Quotation from participating marketplace vendors
Related Documents 5120-01-399-9783 4+ Documents (More...)
Updated Every Day 4743 RQST NE Updated Every Day 1AF58 RQST NE Updated Every Day 5120-01-399-9783 RQST
external drive end of a HANDLE, SOCKET Updated Every Day 4743 RQST NE Updated Every Day 1AF58 RQST NE
Restrictions 5120-01-399-9783
5120-01-399-9783 is a Socket Wrench Screwdriver Attachment that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-01-399-9783
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-01-399-9783
- US Army (A192)
- Effective Date:
- 1 Jan 1995
- US Coast Guard (C014)
- Effective Date:
- 1 Jan 1995
- US Air Force (FGGS)
- Effective Date:
- 1 Jan 1995
- NASA (G751)
- Effective Date:
- 1 Dec 1994
- US Marine Corps (MC14)
- Effective Date:
- 1 Jan 1995
- US Navy (N9QG)
- Effective Date:
- 1 Jan 1995
- Supplementary Collaborators:
- GTJBHD
- Canada (ZC01)
- Effective Date:
- 1 Nov 2014
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jul 2013
Approved Sources 5120-01-399-9783
- Part Number
- Manufacturer
- Status
- J4743
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 1AF58
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 4743
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-01-399-9783
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive Surface Size [ATNC]
- 0.250 Inches Nominal Single End
- Features Provided [CBBL]
- Manual Tool
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 1.250 Inches Nominal
- Tip Thickness [BTFB]
- 0.040 Inches Nominal
- Tip Width [ASFX]
- 0.250 Inches Nominal
- Wrenching Surface Shape [CRWY]
- Flat (Slotted) Single End External
- Style Designator [STYL]
- Flat (Slotted)
- Surface Treatment [SFTT]
- Oxide Bit
- Surface Treatment [SFTT]
- Chromium Drive Surface
Management Data 5120-01-399-9783
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5120-01-399-9783
Freight Information 5120-01-399-9783
5120-01-399-9783 has freight characteristics.. 5120-01-399-9783 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
